product Image

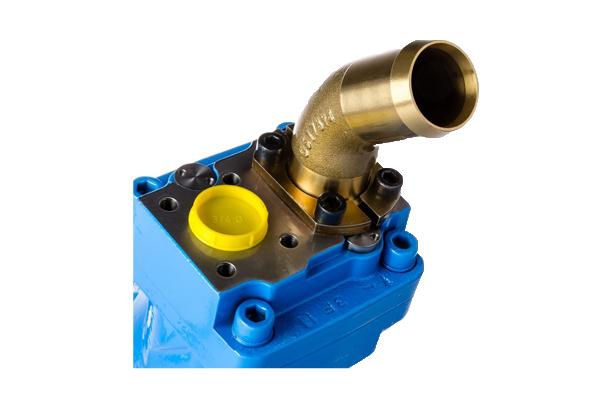

Inlet Fittings for Fixed Displacement Pumps
Model Name
-
Series
Hydraulic Pumps
Data
-
Manufacturer information
provider logo
HYDRO LEDUC

Manufacturer of Hydraulic Components, Hydraulic Pumps, Hydraulic Motors and more

Problem with product info?
Update request
Manufacturer
HYDRO LEDUC
Brand
-
SKU
138526
Product Name
Inlet Fittings for Fixed Displacement Pumps
Model Name
-
Size
-
Weight
-
Product Details

HYDRO LEDUC proposes a wide range of inlet fittings for fixed displacement pumps.

Inlet fitting for XPi – XAi pumps (inlet fitting supplied with the pump on XPi and XAi series, please specify the desired type of connection when ordering):

TYPE REFERENCE Ø HOSE
45° elbow fittings kit 0519370 G 1-1/2″
0519373 42
0519374 G 1-3/4″
0519371 G 2″
0519372 G 2-1/2″
90° elbow fittings kit 0521740 G 1-1/2″
0521741 G 2″
0521742 G 2-1/2″

Dimensions in mm.



Inlet fitting for PA-PAC-PAD pumps :

TYPE REFERENCE Ø HOSE
90° elbow fittings, swivel 240131 40
240133 50
240135 50
Straight fittings 240182 40
240067 50
240066 60
240186 63,5
240183 50
240170 60
240201 76,2

Dimensions in mm.


For more information, please consult our Truck pumps catalogue
