Multi-Axis T/C
Model Name

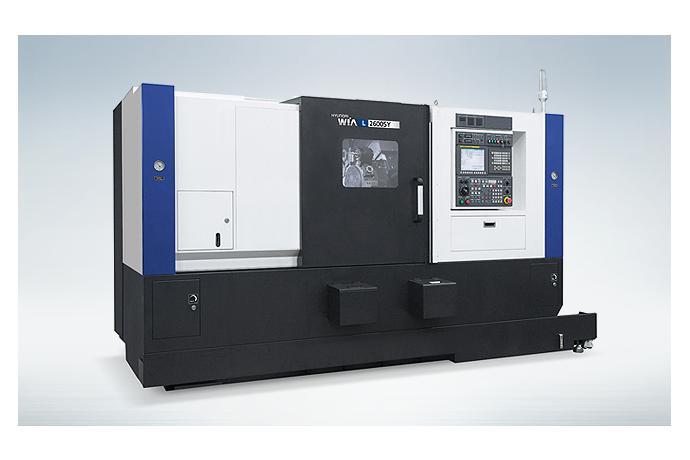

L2600Y | L2600SY | L2600LY
Series
CNC Turning Center
Data
-
Manufacturer information
provider logo
HYUNDAI WIAAutomotive parts, Machine tools, Industrial machinery, Defense, Satellite, Aircraft components, Products R&D and more
Problem with product info?
Update request
Manufacturer
HYUNDAI WIA
Brand
-
SKU
38034
Product Name
Multi-Axis T/C
Model Name
L2600Y | L2600SY | L2600LY
Size
-
Weight
-
Product Details

Features

Cycle time reducing structure for maximum productivity

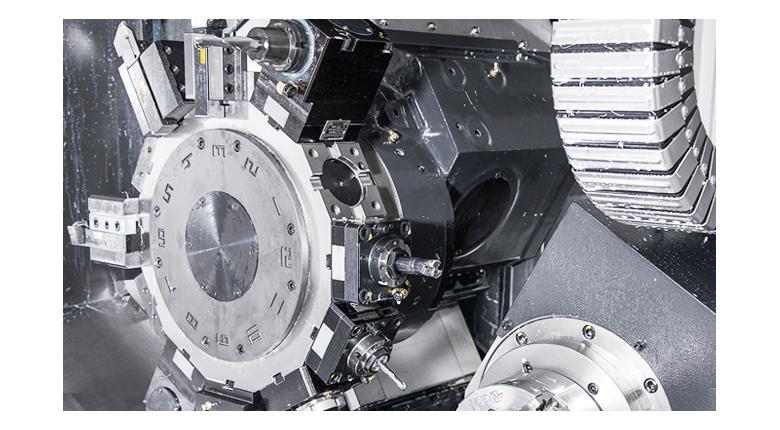

Multi-tasking operation with wedge type Y-axis BMT65P turret

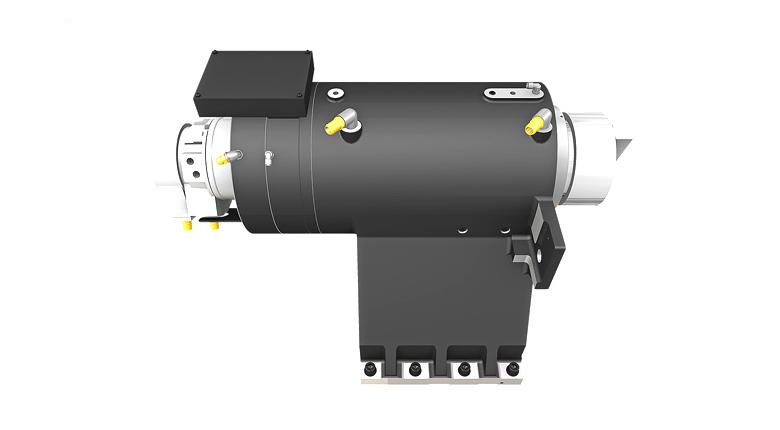

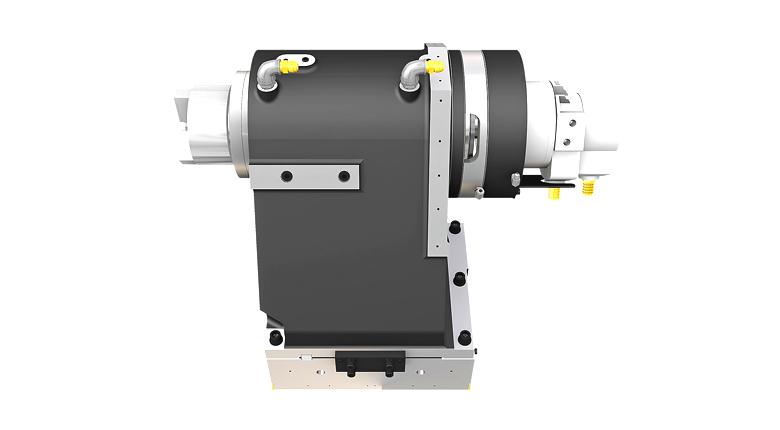

Integrated processing through synchronized control of Main/Sub spindle (“S” Type)

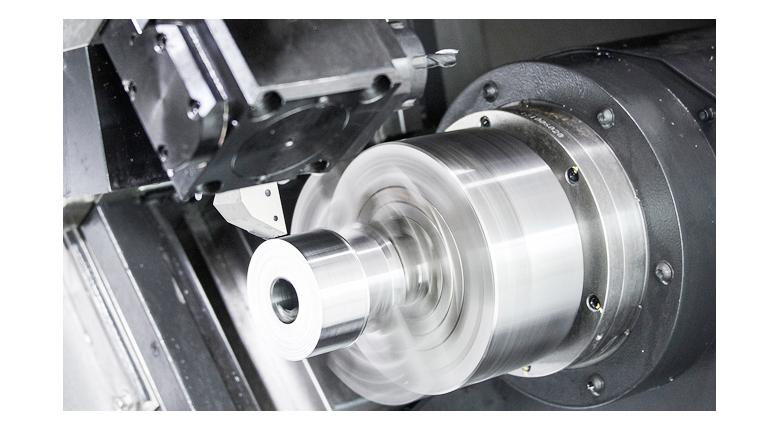

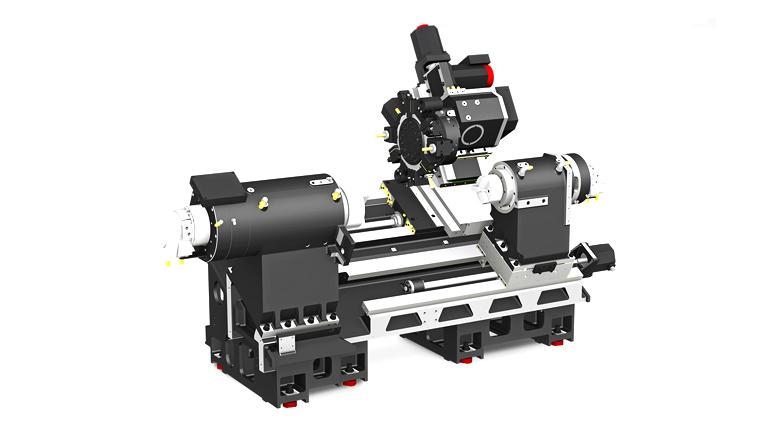

High performance heavy duty cutting enabled with box guideways

Improved maintenance through locating lubrication mechanisms on the front of machine



Specifications

Description Unit L2600Y L2600SY L2600LY
Max Turning Dia mm 420 420 420
Max Turning Length mm 760 760 1,280
Chuck Size inch 10″ Main 10″
Sub 6″
10″
Driving Method - Built in Built in Built in
Spindle RPM r/min 5,000 5,000 5,000
Spindle Output kw 15/22 15/22 15/22
Spindle Torque N.m 409/599 409/599 409/599
Travel(X/Y/Z) mm 265/120/830 - 265/120/1,350
Travel(X/Y/Z/ZB) mm - 265/120/830/830 -
Rapid Travel(X/Y/Z) m/min 30/10/30 - 30/10/30
Rapid Travel(X/Y/Z/ZB) m/min - 30/10/30/30 -
Slide Type - BOX BOX BOX
No. of Tools EA 12 12 12
Tool Size mm 25/50 25/50 25/50
Milling Tool Speed r/min 5,000 5,000 5,000
