HIGH-DENSITY ZIF CONNECTORS

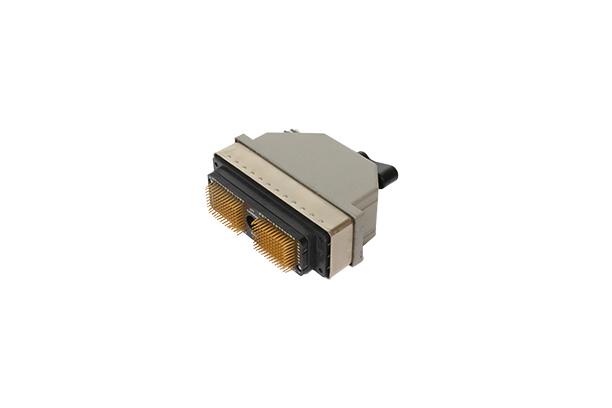

ITT Cannon’s DL connector family is a versatile, high-density zero insertion force (ZIF) connector series with up to 260 contacts in plastic body connectors and up to 408 contacts in the EMI/RFI shielded metal body connectors.
These ITT Cannon ZIF connectors have a minimum rated life of 10,000 mating cycles and are ideal for medical imaging, test & measurement equipment, entertainment equipment, or any application that requires high mating cycles and high performance in multiple-wire power and signal connectors. ITT Cannon ZIF connectors have a unique latching design that allows for configurations up to 360-way to be mated and unmated in less than two seconds and requires no sliding force. For more details on ITT Cannon ZIF connectors, please see the product specifications below.
Features
- True Zero Insertion Force (ZIF) Connectors
There is no build up of mating force typically associated with high pin count style connectors, so mating and un-mating is as easy as twisting a handle. - Long Mating Life
10,000 matings minimum allows these connectors to be used in testing and burn in applications. - High Pin Count
DL series offers 60, 96, 156, 260, 360 or 408 contacts per standard connector. Need more, custom contact configurations and housing are available. - Wide Selection of Terminations
Crimp, printed circuit, square post and solder buss style contacts give you maximum flexibility to wire your connectors. - New Nickel-Plated Aluminum Housings
The DLM1/2/3 (60, 96 & 156 pin) versions are now available in a strong metal shell, fully EMI/RFI shielded version that can mate with the standard plastic housing version. This allows for easy upgrade to a shielded version without sacrificing intermatability of units already in the field. - Contact Wiping
During mating, the contacts wipe lightly together, which helps clean the contact mating area and assures low contact resistance needed for digital or low current applications.
Materials & Finishes
Shells
DL1/2/3: Glass-filled thermoplastic, UL94V1-rated, Color: black
DL4: Aluminum alloy, cadmium-plated housing, clear anodized mounting plate
DL5: Glass-filled thermoplastic, UL94V0-rated, Color: black
DLM1/2/3/5/6: Aluminum alloy, nickel-plated
DL4: Aluminum alloy, cadmium-plated housing, clear anodized mounting plate
DL5: Glass-filled thermoplastic, UL94V0-rated, Color: black
DLM1/2/3/5/6: Aluminum alloy, nickel-plated
Actuators & Plug Insert Retainers
Stainless steel, passivated
Contacts
Copper alloy
Plating
Crimp: 50μ inches gold over 50μ inches nickel mating area gold flash on balance
Crimp: 20μ inches gold over 50μ inches nickel mating area tin lead on balance
Square Post: 50μ inches gold over 50μ inches nickel mating area gold flash on balance
Square Post: 20μ inches gold over 50μ inches nickel mating area gold flash on balance
PC/RC: 20μ inches gold over 50μ inches nickel mating area tin lead on balance
Crimp: 20μ inches gold over 50μ inches nickel mating area tin lead on balance
Square Post: 50μ inches gold over 50μ inches nickel mating area gold flash on balance
Square Post: 20μ inches gold over 50μ inches nickel mating area gold flash on balance
PC/RC: 20μ inches gold over 50μ inches nickel mating area tin lead on balance
Insulators
DL4: Glass-filled thermoplastic, UL94V1-rated, Color: grey
DLM1/2/3/5/6: Glass-filled thermoplastic, UL94V0-rated, Color: black
DLM1/2/3/5/6: Glass-filled thermoplastic, UL94V0-rated, Color: black
Electrical Data
Dielectric Withstanding Voltage
1200 Vac RMS – Crimp & square post contacts
1000 Vac RMS – PC/RC round PCB contacts
750 Vac RMS – DL4
1000 Vac RMS – PC/RC round PCB contacts
750 Vac RMS – DL4
Current Rating
5 Amps maximum – Crimp & square post contacts
4 Amps maximum – PC/RC contact
10 Amps up to 60 Amps maximum for buss contacts
4 Amps maximum – PC/RC contact
10 Amps up to 60 Amps maximum for buss contacts
Note
The Ambient Temperature Curves shown represent the rated current carrying capacity of the Cannon DL1/2/3/4, DLM1/2/3, and DLD1/2 electrical connectors, derated to 80% of the value recorded using the methods specified by International Electro-Technical Commission Document 48 (1975). Current was applied to the total connector (all contacts) in one-half ampere increments and maintained at each current level until thermal stability was achieved. A thermocouple inserted into the “hottest area” of each connector then measured the connector temperature at the same time that an ambient temperature reading was taken. The difference between the two measured values is the heat rise or self-heating created solely by the current flow; this temperature rise for the current level was deducted from the insulator material rated temperature. These values were then derated to 80% to obtain the curves shown.
Wire Range Sizes
32 AWG –18 AWG
Contact Resistance
15 milliohms maximum – Crimp & square post contacts
20 milliohms maximum – Crimp 32-30 AWG contacts
30 milliohms maximum – PC/RC contacts
20 milliohms maximum – Crimp 32-30 AWG contacts
30 milliohms maximum – PC/RC contacts
Insulation Resistance
5000 megaohms minimum
Mechanical
Operating Temperature
-55°C to 105°C; DL4: -55°C to 71°C
Durability
10,000 Mating cycles minimum DL/DLM
20,000 Mating cycles minimum DL4
20,000 Mating cycles minimum DL4
Insulation Strip Length
32 to 22 AWG .130" (3.30mm)
20 to 18 AWG .160" (4.06mm)
20 to 18 AWG .160" (4.06mm)
Insulation Diameter
30 to 28 AWG .053 (1.35mm) maximum
26 to 24 AWG .065 (1.65mm) maximum
22 to 18 AWG .074 (1.88mm) maximum
26 to 24 AWG .065 (1.65mm) maximum
22 to 18 AWG .074 (1.88mm) maximum
Crimp Tensile Strength min. lbs.
Chemical Resistance
Salt spray per MIL-STD-202 method 101 Condition B (48 hours)
Vibration
Per MIL-STD-202 method 204 Condition C
Per MIL-STD-167-1/2 Modified (DL4)
Per MIL-STD-167-1/2 Modified (DL4)
Shock
Per MIL-STD-202 method 213 Condition A (50g’s)
Contact Type
Crimp, wire wrap, printed circuit board, buss contacts -solder or crimp lug tab
Number of Circuits
60 to 2496
Contact Insertion
Hand-insertable from rear, no insertion tool required
Contact Retention
8 lbs. (35.585 newtons) minimum
Contact Spacing
.100" (25.4mm) square grid
Polarization
By center and/or corner polarizing post kit
Approvals
UL94V1 and UL94V0 materials
How It Works
