Main Pump for Heavy Equipment, Driving Motor, Hydraulic Parts, Industrial Equipment and more
APPLICATION
SK300-1/3
EX270/280
EX300-1/2/3
SH300/350
E360

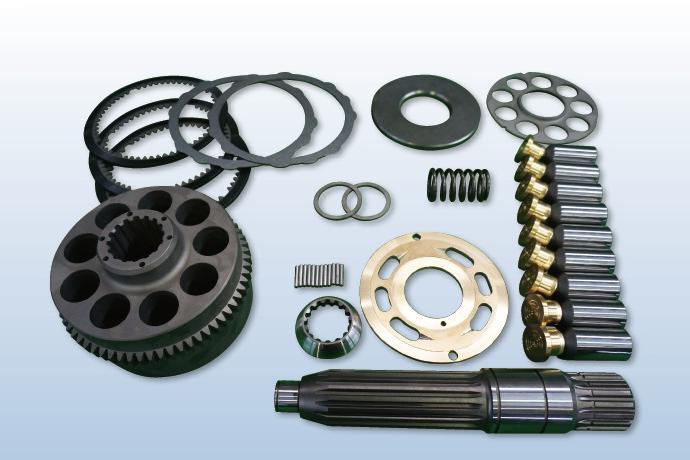

NO | PART NO. | Description | Spec | Q'ty | Remarks |
1 | JSK060010 | CYLINDER BLOCK | 18mm | 1 | |
2 | JSK060020 | CYLINDER BLOCK | 24mm | 1 | |
3 | JSK060030 | VALVE PLATE | 1 | ||
4 | JSK060040 | PISTON ASS'Y | 2ST | ||
5 | JSK060050 | BALL GUIDE | STEEL | 1 | |
6 | JSK060060 | SPACER(BALL GUIDE) | 1 | ||
7 | JSK060070 | SET PLATE(RETAINER) | 1 | ||
8 | JSK060080 | SHOE PLATE | 1 | ||
9 | JSK060090 | PUSH ROD(CYL'D) | 1ST | ||
10 | JSK060100 | SPRING(CYL'D) | 1 | ||
11 | JSK060110 | WASHER(CYL'D) | 2 | ||
12 | JSK060120 | DRICTION PLATE | 1 | ||
13 | JSK060130 | FRICTION PLATE | 2 | ||
14 | JSK060140 | SEPARATION PLATE | 3 |
