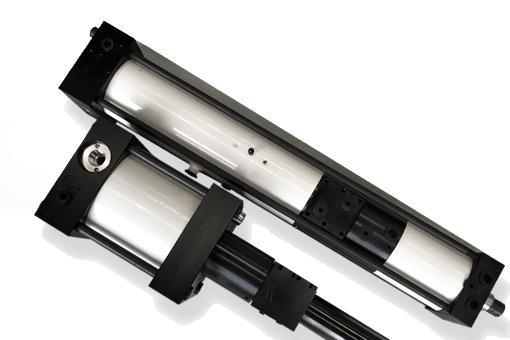

product Image

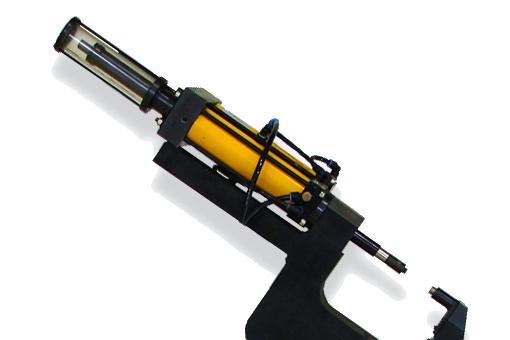

product Image
Pump Cylinder
Model Name
-
Series
Hydraulic Equipment
Data
-
Manufacturer information
provider logo
JUNG-A HYDRAULIC

Manufacturercture of Hydraulic Cylinder for Various Industrial Machinery

Problem with product info?
Update request
Manufacturer
JUNG-A HYDRAULIC
Brand
-
SKU
62679
Product Name
Pump Cylinder
Model Name
-
Size
-
Weight
-
Product Details

Usage

Press, Assembly, Press Fitting , Trimming, Banding, Bonding, and Spot Welding

Characteristics

Developed a hydraulic cylinder equipped with booster pump all-in-one, which advances at a high speed when low load, and advances with double action booster pump when high load. Additionally, when double action booster pump is spinning, the surging of pressure is minimized with built-in accumulator

Developmental Goals and Achievements


Key Performance Indicators (KPI) Units Developmental Goals Test Results Achievements Objective Measuring Methods
Number of Samples
(n≥5)
Test Standards
Energy Efficiency 120 or more 126 100 5 KTC
Surging 30 or less 20 100 5 KTC
Support the Load for 60 seconds (10 tons) ±2 OK 100 5 KTC
Durability   30,000 a time OK 100 5 KTC
Noise   60db or less 50 100 5 KTC

Specifications

Tube Inner Diameter Φ50~Φ300
Rod Outer Diameter Φ25~Φ250
Stroke 20~700mm
Max.working pressure 70~350kg/㎠
Max, working temperature -20~100℃
JUNG-A HYDRAULIC
Manufacturercture of Hydraulic Cylinder for Various Industrial Machinery
Jung-A Hydraulic Co., Ltd. will produce hydraulic equipment essential for the world, even if it means producing in small quantity, to become an honest partner for our clients, and thus playing a key part in social development. We started exporting our products to Japan, the USA, and Europe in 2000, to be recognized by our clients for the superiority of our products, and to build trust. We are an export specializing company growing slowly but steadily.
