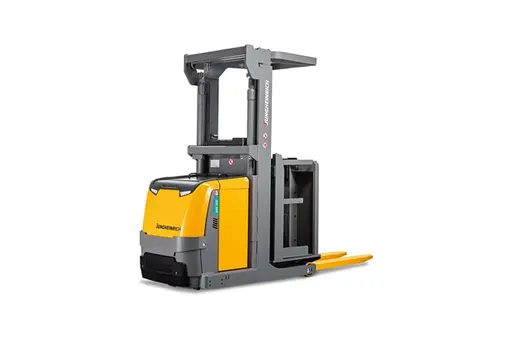

Our solid and ergonomic medium and high-level order picker EKS 110 is the ideal partner for order picking up to the third racking level in the wide aisle.

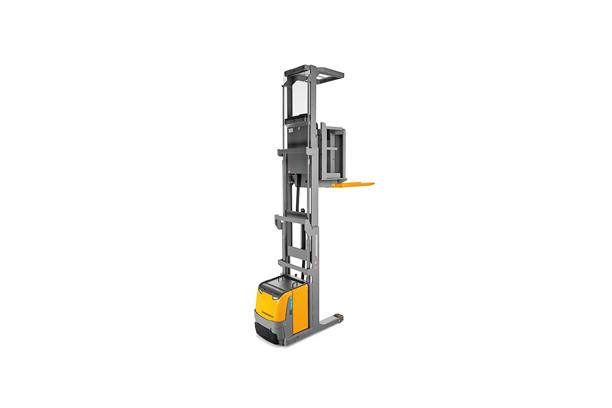

Thanks to a maximum platform height of 3 meters picking heights of up to 4.6 meters can be reached. Due to the self-supporting construction open and closed pallets can be transported.

The energy-saving 3.2 kW drive system impresses with high acceleration values and high battery capacity which allows long-term use even in multi-shift operation.

Safe working is ensured by the low entry height, the increased grip of the standing platform as well as optimum freedom of movement while entering and exiting.

A driver's seat designed for gentle work: With the intuitive arrangement of the controls, a 4-inch display, and three selectable driving programs.

Additionally, various equipment options and assistance systems make this order picker flexibly applicable. So the driver can simply hop on and drive off.

✔ Maximum picking performance with lowest energy consumption

✔ Powerful engine for high handling capacity

✔ Optionally with walk-on load section (L) or auxiliary lift (Z)

✔ WMS connection via Logistics Interface for optimised processes

✔ Picking height up to 4.6 m

Li-Ion

	No worries. No compromise. With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 5 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.
	100 % satisfaction. Guaranteed. We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Features

Efficient order picking

• For the toughest applications thanks to a capacity of up to 1000 kg with a load center of 600 mm.
• Stable cornering thanks to a low load center provides a sense of security in every travel situation.

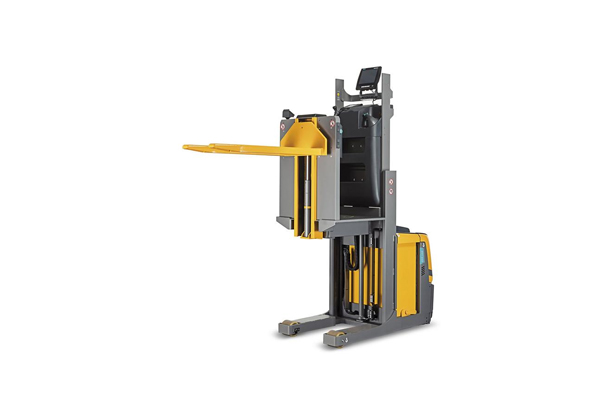

• Lowering the walk-on load section (optional) means that the platform and loading device are lowered to the lowest level possible when order picking – providing the lowest entry every time with no depositing of the pallet.
• Particularly with low lift heights and frequent entry and exit, the touch mode provides a fast way of reaching the next picking point.
• The touch mode is located on the backrest to enable direct access to the loading device.

Long operating times with lead-acid battery

• Energy-efficient 3-phase AC technology and high battery capacities allow for long operating times.
• Different battery sizes are available ranging from 375 Ah to 620 Ah.
• Lateral battery exchange for multi-shift operation (optional).

Available with lithium-ion technology

• High availability thanks to extremely short charging times.
• No battery exchange is required.
• Saving costs due to longer service life and low maintenance in comparison with lead-acid batteries.
• No charging rooms and ventilation are required as there is no build-up of gas.

High process reliability thanks to WMS connection

• The EKS 110 is linked to a warehouse management system (WMS) via Jungheinrich Logistics Interface: Orders are easily forwarded to the truck control system via the interface software so that additional functions are created.
• Process reliability thanks to real-time feedback to the WMS.
• Targeted reduction of safety risks, since the driving parameters can be influenced via the WMS.
• Ergonomic order picking via an additional display in the load direction.
• Saves time by confirming the orders with a push button.

Improved visibility

• Better visibility in poorly lit areas thanks to integrated dayLED daytime running lights (optional).
• LED working lights on the overhead guard can be used as additional running lights or to illuminate the racking when order picking (optional).
• The optional LED workstation lighting ensures that the operator position is well-lit.
• Floor spot – significant reduction of risk to collide in blind spots due to a red dot of light projected onto the floor approx. 3 m in front of the truck (optional).

Robust design

• High-quality stainless steel skirt raised extra high on the front panel.
• Impact-protected steel drive panel protects the components behind it.
• Optional rubber or steel bumper provides additional protection.

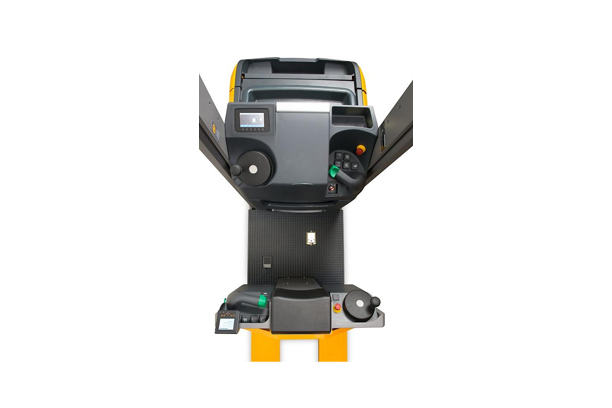

Ergonomic workstation

• Low entry height for easy entry and exit.
• Padded backrest for comfortable depositing of goods on the forks.
• A continuous comfortable rubber mat provides noticeable relief for the operator.
• The tilted steering wheel supports natural hand movements and thus protects the operator's joints.
• As an alternative to conventional steering, the optional jet pilot is also available, which enables intuitive and convenient operation similar to a car.

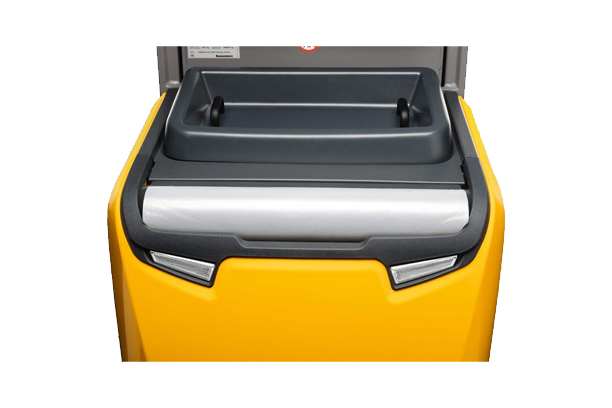

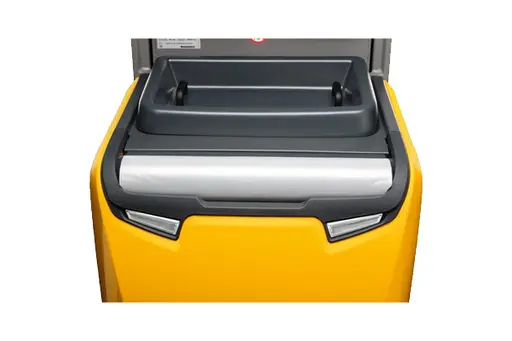

• Good storage capabilities are offered by the integrated DIN A4 holder and other storage compartments.

Model Overview
