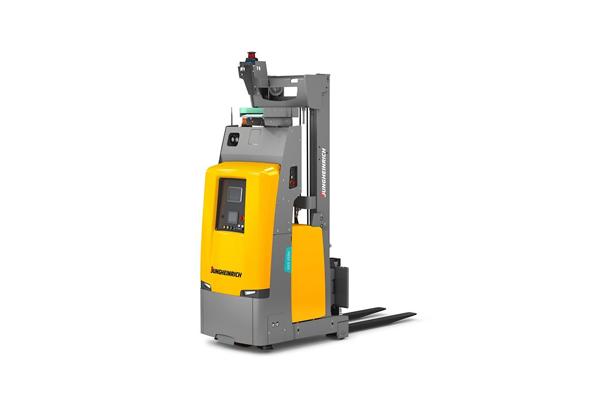

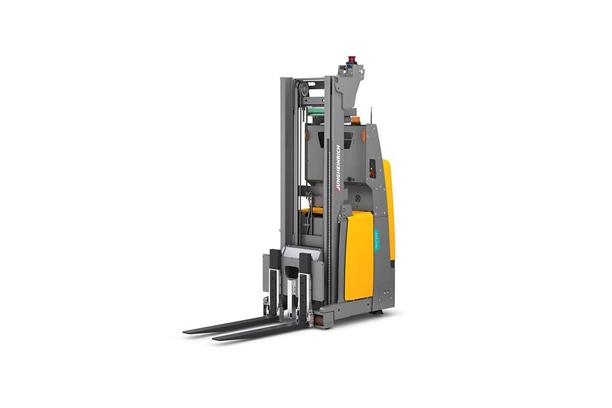

A compact and versatile Automated Guided Vehicle (AGV), our EKS 215a is the perfect choice for efficient mixed operations with manual trucks and pedestrians in warehouses and production areas.

The 24-V energy concept with a lithium-ion battery and automatic charging function ensures maximum flexibility in addition to the modular mast concept, while adjustable forks and a high residual capacity facilitate the handling of special load carriers in stations that cannot be driven under as well as delivery in racks.

A future-proof safety concept with integrated personal protection sensors guarantees a high level of safety in mixed operation and the user-friendly HMI touch display simplifies the interaction between man and machine.

Automate your manual processes with our innovative all-rounder – the EKS 215a.

✔ Versatile, compact AGV for safe use in mixed operations

✔ Lifting height up to 6 m and adjustable forks for high flexibility

✔ Simple operation with intuitive interaction options

✔ Economical 24/7 operation thanks to lithium-ion technology

✔ Simple connection to ERP systems via Jungheinrich logistics interface

Li-Ion

	No worries. No compromise. With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 5 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.
	100 % satisfaction. Guaranteed. We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Features

Comprehensive automated components and precise navigation

• AGV is based on a series of components for flexible automation – even in confined spaces.
• Optimum design to meet the requirements for automating manual processes in warehouses and production areas.
• Precise laser navigation using reflectors installed on the travel route – for maximum transport efficiency.

Compact design

• Extremely compact truck dimensions due to the optimum combination of physical and virtual footprint.
• Perfectly suited to narrow working aisle widths (Ast) thanks to maximum maneuverability with low space requirement.

Lithium-ion technology

• 24-V lithium-ion technology with optional automatic charging.
• High availability thanks to extremely short charging times.
• Active energy and battery management.No battery exchange required.
• Zero maintenance in comparison with lead-acid batteries.
• No charging rooms or ventilation is required as there is no build-up of gas.

Intelligent safety functions

• Depending on the speed and steering angle, standard personal protection scanners scan the travel route for obstacles in the drive direction and load direction.
• Protection against damage through integrated safety sensors below the truck frame.
• Smart safety concept with protective and warning fields for efficient layout planning.
• The truck stops automatically in front of obstacles in its path.
• Scanning ahead for obstacles when cornering.
• Emergency disconnect on the truck and emergency control panel.

High level of process reliability in the warehouse

• A quick overview of the status of pending transport tasks is possible on the control panel and on the HMI.
• Prioritized orders can be entered and processed in the corresponding order.
• Depending on the project-specific requirements, individual customer functions can be specially implemented and activated for the respective system.

Wide range of applications

• Use in mixed operation, in a new build, or integrated into an existing factory structure.
• Transport of special load carriers closed pallets as well as the operation of stations that cannot be driven under using adjustable forks.
• Connection to existing WMS / ERP system via Jungheinrich logistics interface.

Intuitive interface

• The status is display at a glance.
• 7-inch display with touch function: error codes and handling recommendations for efficient fault rectification.
• Manual intervention option by the operator: AGV can be sent to charge, park or a service location and orders can be specified directly on the display.

Extended mast grid and increased residual capacity

• Wide range of masts for flexible adaptation to the warehouse layout.
• Higher payload with a smaller footprint and simultaneous increase in residual capacity.
