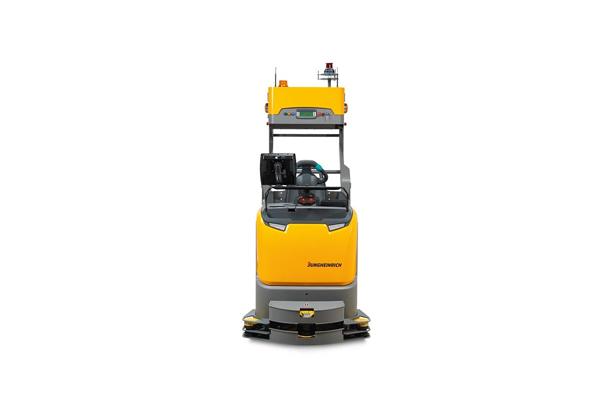

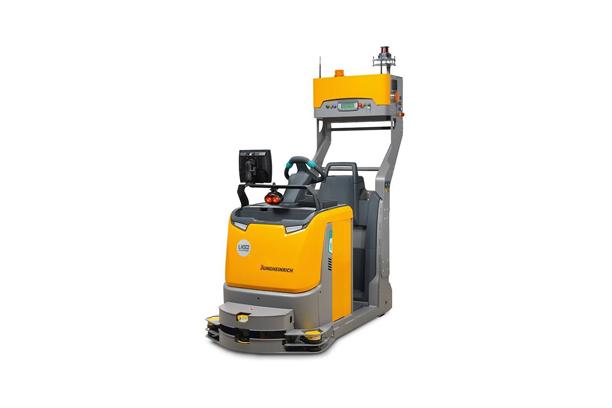

Our versatile and robust EZS 350a enhances your production environment as an automated tow tractor.

They are particularly suited for the effective pulling of trailers with up to 5,000 kg as part of a tow train system.

The Automated Guided Vehicle System (AGV_S) was developed based on our proven standard truck in order to specifically optimize warehouse work and transport processes.

The automatic tow tractor fulfills routine tasks reliably and convinces with precision navigation technology and an extensive safety system. A 24-V 3-phase AC motor ensures high performance with low energy consumption.

The truck is controlled by laser navigation using reflectors installed along the travel route.

The EZS 350a can be used in mixed operations mode with manual trucks and pedestrians, in existing structures, or as a stand-alone solution – for more efficiency in your production facility.

✔ Efficient, process-reliable completion of transport tasks

✔ Optimised transport routes thanks to precise laser navigation

✔ Extensive safety systems for use in mixed operations

✔ Various couplings possible

✔ Easy integration into existing IT systems

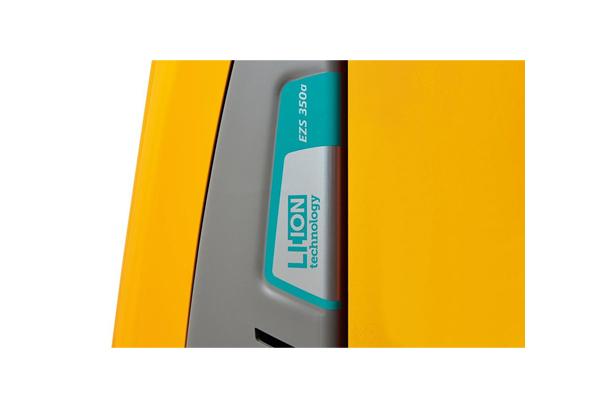

Li-Ion

	No worries. No compromise. With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 5 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.
	100 % satisfaction. Guaranteed. We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Features

Established standard truck used as the basis

• Standard truck EZS 350XL electric tow tractor combined with appropriate safety technology as well as automation and navigation components.
• Simple manual operation in mixed mode is performed via the standard controls of the production truck.

Efficient drive technology and equipment

• 24-V 3-phase AC drive motor.
• No carbon brushes: Maintenance-free drive motor.
• Robust design.
• Compact design.

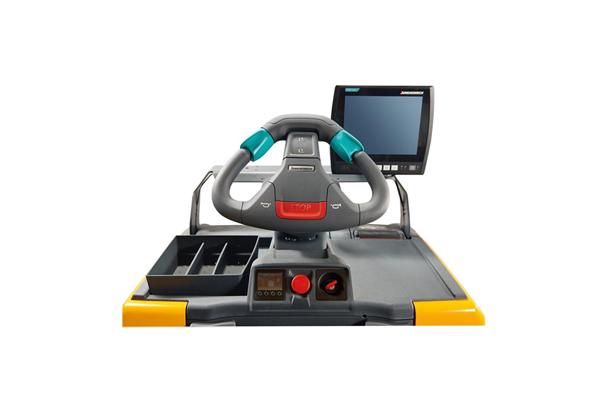

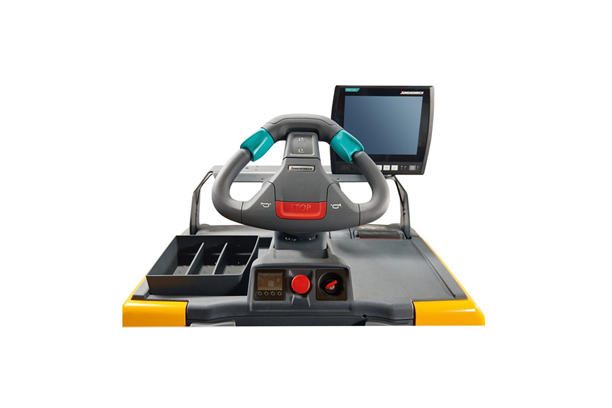

• jetPILOT multifunctional steering wheel.

Lithium-Ionen-Technology

• High availability thanks to extremely short charging times.
• No battery exchange is required.
• Saving costs due to longer service life and zero maintenance as compared to lead-acid batteries.
• No charging rooms and ventilation are required as there is no build-up of gas.

The safety system on the vehicle

• A standard personal protection scanner in the drive direction scans the travel route in front of the AGV for obstacles depending on the speed.
• Should an obstacle be located in the path of the truck, the AGV will reliably come to a halt in front of it.
• The sensor also scans ahead for obstacles when cornering.
• Side sensors protect the sides of the truck.
• Emergency disconnect on the truck.

Process reliability in the warehouse

• Everything at a glance with the AGV control panel
• The graphic display on the AGV control panel displays all the information relating to the AGV in use.
• Quick overview of the status of pending transport tasks.
• Prioritized orders can be entered and processed in the corresponding order.
• Depending on the project-specific requirements, individual customer functions can be specially implemented and activated for the respective system.

Simple system integration

• Can be easily integrated into existing IT and network landscapes.
• Effortless connection to existing WMS/ERP system via Jungheinrich Logistics Interface.
• For communication, the existing WLAN structure is used.

High level of flexibility

• Full manual and automatic use, e.g. reliable surface transport in automatic mode with the distribution of the goods by one employee.
• The optional comfort terminal enables employees to determine the next destination and simply enter it with just one click at the truck.

Precise navigation

• Millimeter-accurate positioning of trucks and loads at the defined stations.
• Different navigation types can be used as hybrid navigation.
• Project- and environment-specific design and implementation.

Model Overview
