Trolley for large load carriers (LLC) 0.6 - 1.6t
Model
Series
Industrial Trailer
Transaction Process
Please contact the manufacturer/supplier.
Payment
Contact the manufacturer/supplier.
Delivery
Contact the manufacturer/supplier.
Shipment
Contact the manufacturer/supplier.
Origin
Contact the manufacturer/supplier.
Description

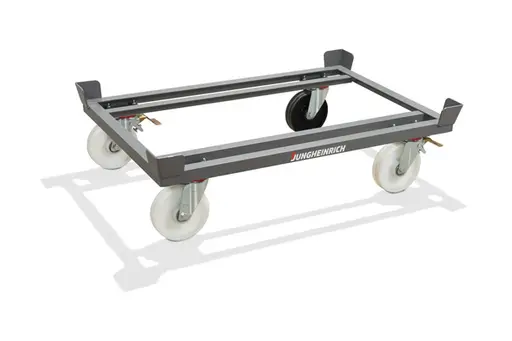

Trolley
Our handy and flexible trolleys are ideal for transporting loads up to 1.6 tonnes per trailer and are optimally matched to the Jungheinrich GTE trailers.
The trolleys easily move large load carriers (LLC) from A to B, e.g. in a tow train loaded with pallets or pallet cages. The lift platform helps the trolleys to be easily and safely pushed into the trailers and lifted during transport.
Low rolling resistance makes for quiet operations and precise lane guidance. Different sizes and capacities guarantee high flexibility in any application.
The easy handling of the trolleys and the low effort required for manual reaching allow comfortable working.
Besides our wide range of tow tractors, trailers, and trolleys, we also offer you integrated tow train system advice to optimize your warehouse logistics to the maximum.
✔ Usable without the use of additional devices
✔ Suitable for all Jungheinrich trailers
✔ Available in different sizes and carrying capacities
✔ Ball bearings and hard tread for low rolling resistance
✔ Quiet and low-wear operation
Features
Efficient operation
- 4 steering rollers, two of which are diagonally braked with wheel locks.
- Large wheels made of polyamide with ball bearings for easy manual pushing.
- An ESD wheel with electrical conductivity.
Safe and ergonomic
- Various features make it easier to handle heavy and bulky loads.
- Attachable handles provide grip at an ergonomic height.
- Beam extensions make it easier to access loads without having to bend down.
- Lockable steering roller for directional stability when pushing manually.
Equipment and additional options
- Loads for 600 kg, 1200 kg, and 1600 kg.
- Dimensions in 1200 x 800 mm and 1200 x 1000 mm.
- Trolleys for the mechanical GTE 106.

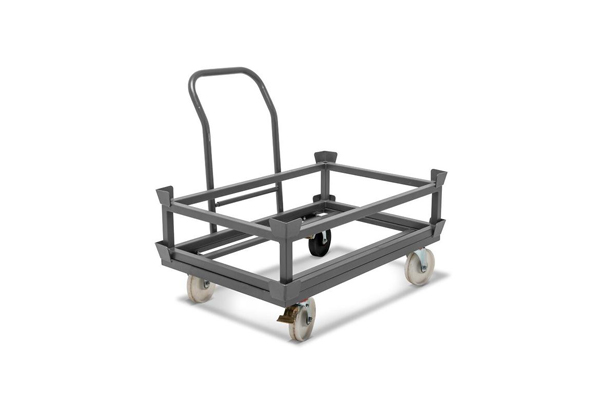

- Clip-on push handle.
- The parking brake with the fixed brake pedal.
- Locking rollers for easier handling of heavy loads.
- Beam extension for ergonomic unloading of large load carriers.
- Wooden floor with optional rubber mat to ensure that smaller loads can also be transported securely.q
Model Overview
| Model | Load capacity | Overall length |
| RW 0,6t 1200x800 | 600 kg | 1,255 mm |
| RW 0,6t 1200x1000 | 600 kg | 1,255 mm |
| RW 1,2t 1200x800 | 1,200 kg | 1,255 mm |
| RW 1,2t 1200x1000 | 1,200 kg | 1,255 mm |
| RW 1,6t 1200x800 | 1,600 kg | 1,255 mm |
| RW 1,6t 1200x1000 | 1,600 kg | 1,255 mm |
