Ultrasonic Cleaning Unit
Model Name
-
Data
-
Manufacturer information
provider logo
K-SONIC

Ultrasonic washing machine manufacturer, Auto ultra washing machine, Ultra pure facility and more

Problem with product info?
Update request
Manufacturer
K-SONIC
Brand
-
SKU
60221
Product Name
Ultrasonic Cleaning Unit
Model Name
-
Size
-
Weight
-
Product Details

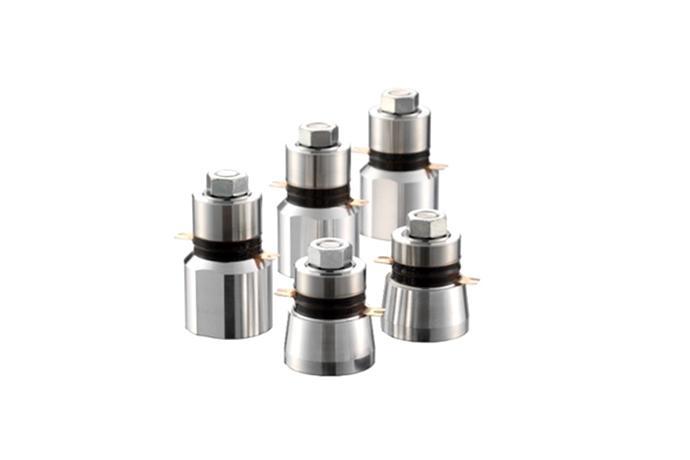

SummaryUltrasonic vibrators (can be called other names such as Transducer and Condenser) made by using piezoelectric ceramics are an assembly
of using a piezoelectric phenomenon that can convert electrical energy into mechanical energy by the resonance phenomenon of the piezoelectric ceramics.
DivisionBolt-clamped Langevin Transducer: BLT, which has a different style according to manufacturing methods and now has a stable structure,
is used the most.
It may be divided into 28 kHz, 40 kHz, 50 kHz, 60 kHz, and etc. depending on the resonance frequency.
TypesIt is variously divided into 28 kHz, 40 kHz, 50 kHz, 60 kHz, 80 kHz, 100 kHz, 135 kHz and 170 kHz according to the type
of material to be cleaned.
FeaturesIt uses a vibrator with a difference resonance frequency depending on the type of material to be cleaned.
It applies either frequency or output depending on the completion of cleaning contaminants.

Hankuk(Korea) Ultrasound Industry Ultrasonic Cleaning Unit



SummaryManufactured as the closed type by grouping more than the two of convertor and transducer to meet the purpose and
the expected output called the vibratory parts.
If ultrasonic waves are vibrated in an empty tank without injecting washing liquid to the washing tank,
it can have fatal effects on the entire vibrators so that it should be absolutely prohibited.
DivisionIt can be used regardless of the shape and size of the washing tank, so it has the advantage of easy installation, convenient use,
and being available for using the existing tank.
Types- Frange Type
* It is the most common type and can be various used for manufacturing single and multi-bath type cleaners.
* It is the fixed type which requires no separate fixed bracket.

- Plate type
* It is the diaphragm type which is easy to use the space inside the water tank
* It is easy to replace vibration part.

- Flexible type
* It has the advantage of being able to move
* It can be used safely when fixed with bracket.
Features•It can be customized according to the purpose of its use and types of contaminants.
•The vibration frequency can be diversely selected from 28 to 230KHz
•The vibration part can be arbitrarily changed and can be used regardless of the shape and size of cleaning vessel.
•When you want to increase the cleaning process or improve an ultrasonic output, you can use it simply by using the auxiliary device.

Hankuk(Korea) Ultrasound Industry Ultrasonic Cleaning Unit  1

K-SONIC
Ultrasonic washing machine manufacturer, Auto ultra washing machine, Ultra pure facility and more
Hankuk(Korea) Ultrasound Industry is the No.1 company in the field of ultrasonic cleaners, which has been researching and developing, producing, and selling the ultrasonic cleaning equipment, its auxiliary equipment, and etc. which require zero-defect cleaning throughout the semiconductor, smart phone, related precision parts, mechanical precision parts, optical lenses, automobile industry, aerospace industry, and etc. The ultrasonic cleaners manufactured by Hankuk(Korea) Ultrasonic Industry have a reputation for having the most excellent mechanical completeness in the same line of business. Not only does it have a low failure rate, it also has a very high user satisfaction because of thorough quality control until it is completed as well as performance. With over 30 years of continuous efforts from the simplest single-bath type ultrasonic cleaners to fully automatic cleaner, we have been able to supply our products to five leading domestic companies including Samsung and Hyundai as increasing technical skills and experience, and have been recognized as a company exporting to US and Japan which are advanced countries of ultrasound. In addition, we are continuously trying to make a more secure and perfect ultrasonic cleaners, based on the technology that passed KC, the abbreviation for Korea Certificate, and CE, that for Comunaute Europeenne, which is notorious for obtaining it. We will do our best to provide our customers with the best cleaning solutions by discussing any problems with them, which they are having difficulty in cleaning something in the industrial field.
