product Image
CCTV Camera
Model Name
KSC-TB25R
Series
CCTV(Camera)
Data
카탈로그-금성보안-KSC-TB25R
Manufacturer information
provider logo
KEUMSUNG SECURITY

Security system, CCTV

Problem with product info?
Update request
Manufacturer
KEUMSUNG SECURITY
Brand
-
SKU
125551
Product Name
CCTV Camera
Model Name
KSC-TB25R
Size
-
Weight
-
Product Details

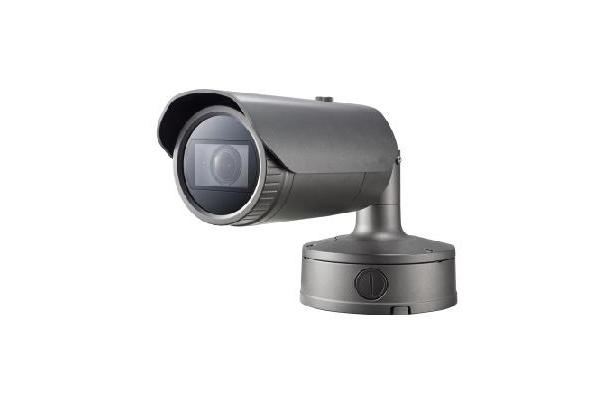

2메가픽셀 H.264/H.265 IR 일체형 IP Bullet 카메라

▪2메가픽셀, 1920x1080P

▪앞선 역광보정 WDR(150dB)기술

▪트리플스트림지원 (H.264/H.265 & MJPEG-Triple streaming)

▪진화된 영상 압축 기술(H.264/H.265)

▪자이로 센서를 적용한 흔들림 보정

▪주,야간모드자동전환기능(True Day & Night by ICR)

▪디지털 광역역광보정(D-WDR)

▪디지털 노이즈 제거(2D+3D-NR)

▪알람(움직임감지/템퍼링감지/오디오감지/얼굴감지 등)

▪PoE(IEEE Std.802.3af) & DC12V

촬상소자1/2.8" 2메가픽셀 CMOS 센서
해상도1920x1080, 1600x900, 1280x720, 960x540, 640x360, 320x180 Up to 30fps@2048x1536p
최저조도0Lux
주사방식프로그레시브
S/N 비50dB
셔터스피드1/12,000 sec
Gain ControlOff / Low / Middle / High
화이트밸런스ATW / AWC / Manual / Indoor / Outdoor
렌즈f=2.8~12mm 메가픽셀, 가변초점렌즈
LED야간 가시거리 50m
디지털줌~x24
WEB.U.I반응형웹 (Responsive WEB)
역광보정Digital WDR(ATR-EX)
노이즈저감2D-NR, 3D-NR
기능사생활 보호, 움직임 감지, 안개보정, BLC, Mirror/Flip, Contrast, Brightness, Hue, Saturation, Sharpness
외형치수91mm() x 368.6mm(높이) / 무게약 2180g
재질
압축방식H.265/H.264(MPEG-4 Part 10/AVC) : Main/Baseline/High, Motion JPEG
비디오 스트리밍

Simultaneously H.264/H.265 and MJPEG (Triple Streaming) Independent Frame Rate and band width Control, VBR/CBR

FTP UploadingMJPEG Still Image
로그인Administrator, Operator, Guest
보안방식Multi User Authority, IP Filtering, HTTPS
네트워크 타임Synchronize Computer/NTP Server, Manual
S/W 리셋Restart, Reset, Factory Default
자동 복구Backup, Restore
업데이트웹브라우저
프로토콜TCP/IP, IDP, IPv4/v6, HTTP, HTTPS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour
SDK 지원API, ONVIF Profile S Compliant
동작 온/습도-40℃ ~ +55℃ (습도: 90%RH 이하)
사용 전원/ 소비 전류PoE(IEEE Std. 802.3af) & DC12V, Max. 12W
