Fully Automatic Crimping Machine
Model Name
LIMS-A1
Series
-
Data
-
Manufacturer information
provider logo
KM DIGITECH

Harness equipment manufacturer, Crimping machine, Processing machine, Cutting machine, Applicator

Problem with product info?
Update request
Manufacturer
KM DIGITECH
Brand
-
SKU
104703
Product Name
Fully Automatic Crimping Machine
Model Name
LIMS-A1
Size
-
Weight
-
Product Details

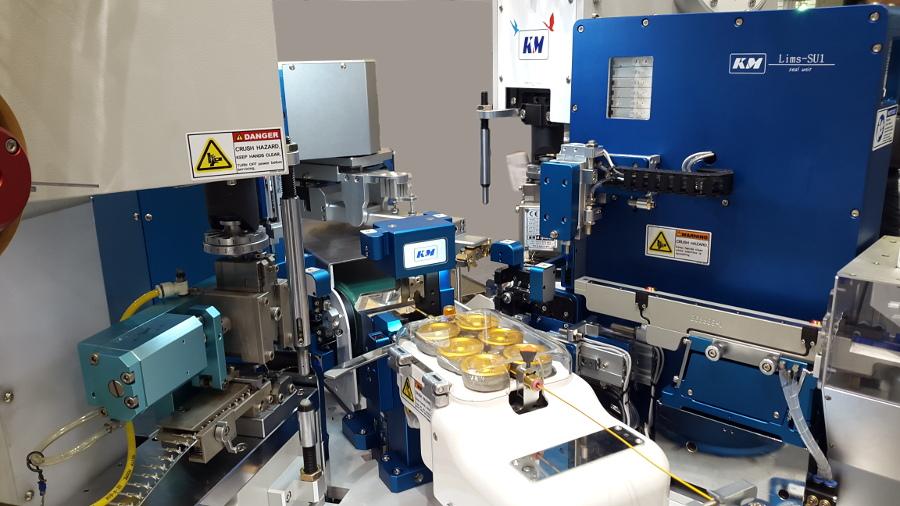

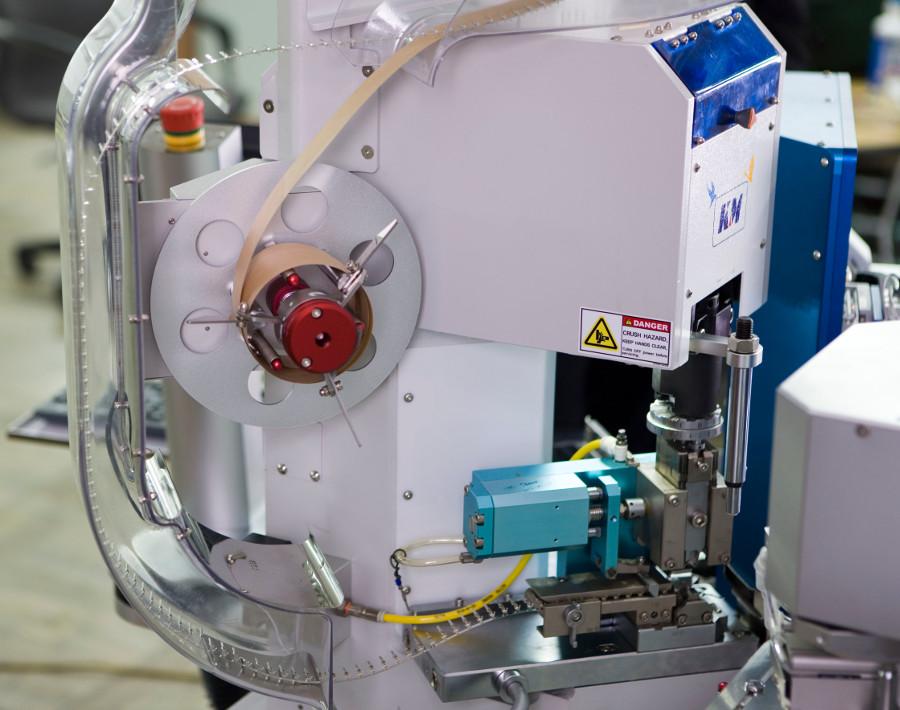

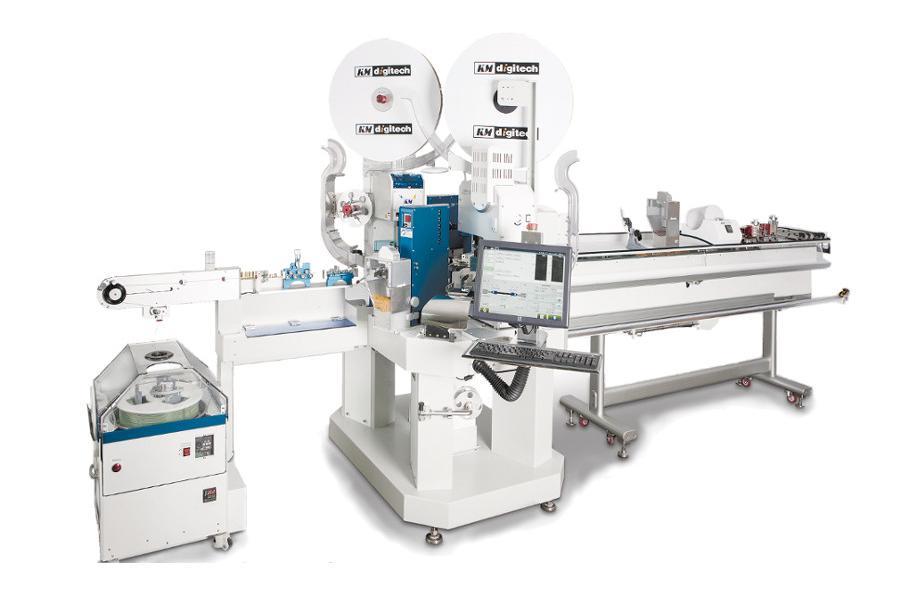

KM Fully Automatic Crimping Machine LIMS-A1

Dimemsion, WeightMain unit 1800 x 900 x 2500(mm) / 500(kg)
Power SupplyAC220V 3Kv
Air/Pressure0.5 ~ 0.6Mpa
Wires (Spec.)0.22 ~ 3.0Sq , 5.0Sq (option)
Cutting Length30 ~ 9,999mm
Stripping Length0 ~ 15mm
Feeding Motor SpeedMax. 7,000mm/sec
Crimping Force4 tons
FunctionsCutting, Stripping, Single/Both ends crimping, Single/Both ends Sealing
Intermediate-stripping unitAvailable as an option
Unit for air feeding applicatorsAvailable as an option
Crimping Control UnitPiezo sensor
Stripping DetectionLaser sensor
Terminal DetectionAvailable as an option
Wire DetectionInstalled as standard
Wire Knot DetectionInstalled as standard
Wire Tangle DetectionInstalled as standard
Terminal Overload DetectionInstalled as standard
Roll Paper Discharge UnitQuick change over
Terminal HangerQuick change over
Carrier CutterInstalled as standard
Emergency Power SupplierInstalled as standard
Length Correction DeviceInstalled as standard, Encoder / Real-time measurement & correction
Air Pressure Adjust DevicePre-programmed
Conveyor Wire Receiver(Option)Flexible choice of 1, 2, 3, 4 meter long
Wire Pre-feeder (Option)Standard (single, double), Thermal System(option), Rotary motor (option)
Networking (Option)Server interlock (ERP interlock)

KM Fully Automatic Crimping Machine LIMS-A1 1

KM DIGITECH
Harness equipment manufacturer, Crimping machine, Processing machine, Cutting machine, Applicator
As one of the leading manufacturers of wiring harness equipment in South Korea. KM Digitech has got a reputation for excellence and innovation for about 30 years. We believe it is our responsibility to provide only the best solutions possible to the customers who produce wiring harnesses in various business sectors. Therefore, from the smallest parts to  the systematic machines, KM has put huge efforts to produce quality and sustainable  products and deliver those to our precious customers in time. One of the biggest goals we strive to accomplish through our system is to not only address the customers' productivity,  but also provide them with upcoming trends and technologies they will face soon. Now we proudly introduce you KM's latest models , LIMS Fully Automatic Crimping Machine and a new style of applicator to fulfill the growing market demands. KM will not stay still but leap toward to the world No.1 in the near future.
