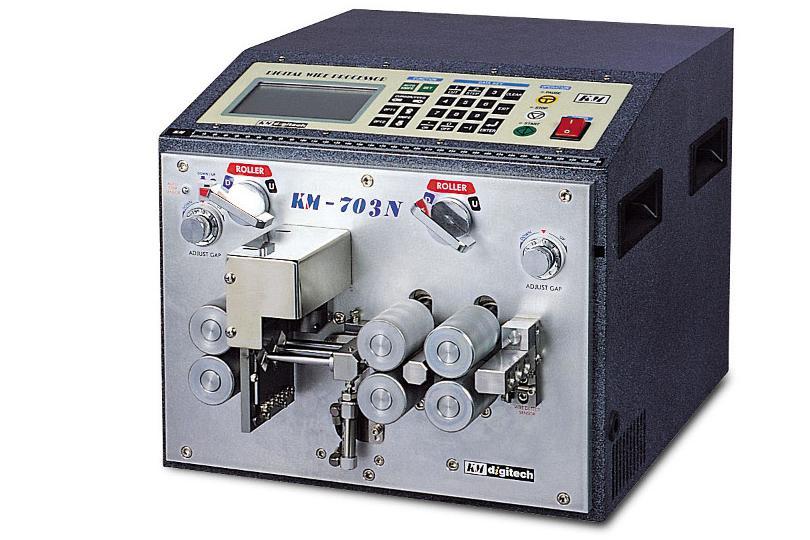

KM-703 Digital Cutting & Stripping Machine
AWG 8 ~ AWG 24 (8.30sq mm ~ 0.20mm)
Most suitable for thick wires such as power cords and cables.
Modification available to process 10 sqmm cables
■ Features
- Heating Unit/Pneumatic Cylinder can be installed to KM-703N to process special insulated wires.
- Graphic display for easy set-up
- Push button set-up of all machine functions
- Auto knife sensoring for stripping blades set-up
- Up to 100 recipes for saving of standard set-ups
- Count of pieces needed
- Short mode for wires less than 35mm long
- Single-step cycle
- Cut botton for testing cutting of machine
- Emergency stop button on panel
- Wire run-out and/or tangle detectors
- An air pipe for insulation chip removal during the cycle
- Filter & regulator for pneumatic system

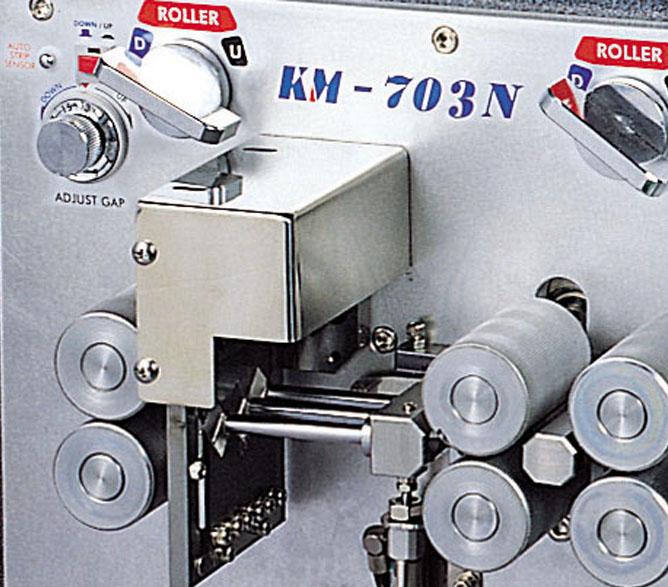

‣ Auto Strip Sensor : Auto knife sensoring for stripping blade set-up. (Patent No. 0285069)
‣ Roller Up&Down Button : With a simple-button press, discharge rollers can be open and close.
‣ Feeding Part :
- Six rollers for highly accurate feeding and stripping.
- Discharge rollers open during feed to protect leading wire end.
‣ Cutting Part :
- Five line knife system allows the running of five wires at once for high production
- Blade life time is estended maxium five times compare to competitor’s model
- An air pipe removes insulation chip during operation.
| Wire range | AWG 8 ~ AWG 24 (8.30sq mm ~ 0.20mm) |
| Wire Type | AV, UL, AVS, AVSS, KV, KIV, Teflon wire, Glass wire, ect. |
| Cutting length | 35mm ~ 9999.9mm |
| Flat cable blades | available |
| Pneumatic System | available |
| Stripping length | 0mm ~ 270mm |
| Air comsumption | less than 0.1 CFM |
| Power supply | 110/220 VAC, 50/60 Hz, Single Phase |
| Power consumption | 55 Wat ~ 410 Wat |
| Dimensions | W485mm D510 H350 |
| Weight | 44KG |
