Ultrasonic Metal Wire Splicing Welder
Model Name
KM-SPLICER Wide 1.0
Data
-
Manufacturer information
provider logo
KORMAX SYSTEM

Ultrasonic metal welding equipment manufacturer

Problem with product info?
Update request
Manufacturer
KORMAX SYSTEM
Brand
-
SKU
128852
Product Name
Ultrasonic Metal Wire Splicing Welder
Model Name
KM-SPLICER Wide 1.0
Size
-
Weight
-
Product Details

The machine is designed to produce high quality splices in industrial production.

Application requirements demand a light weight, compact and ergonomic system that is easily positioned, loaded and operated.

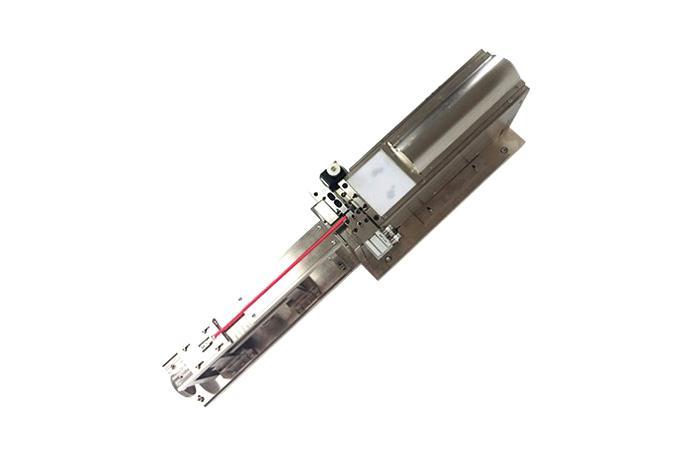

The machine is a full-range ergonomic wire splicing system to produce high-qyality splices at the lowest cost operation. The Machine utilizes a horizontally retractable anvil and will automatically sequence to produce the full range of splices required.



Specification

Ultrasonic Frequency : 20Khz

Air Pressure : Min 4.0 Bar ~ Max 6.5 Bar

Dry and Clean Condition

Voltage : 230V ±15% VAC / 50~60HZ

HEAD : 485mm X 175mm X 180mm

Weight : 25Kgs

Current : Max 16A

Function

Memory : To 9 Parameter RAM

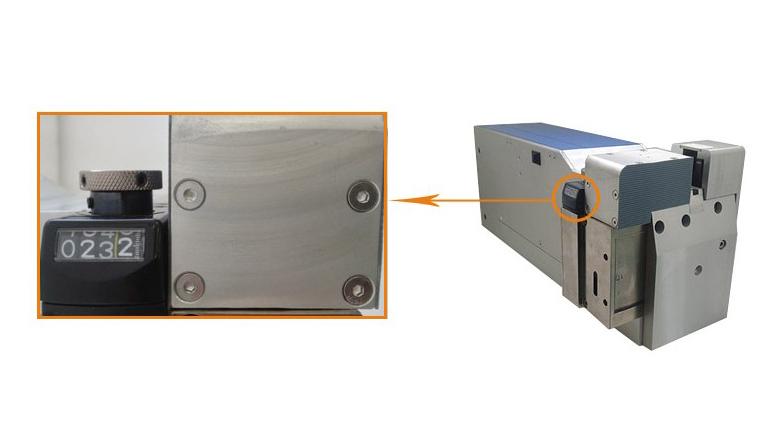

Compact Counter : Easy Setting

Strong Power depended KM-Super

Application Area

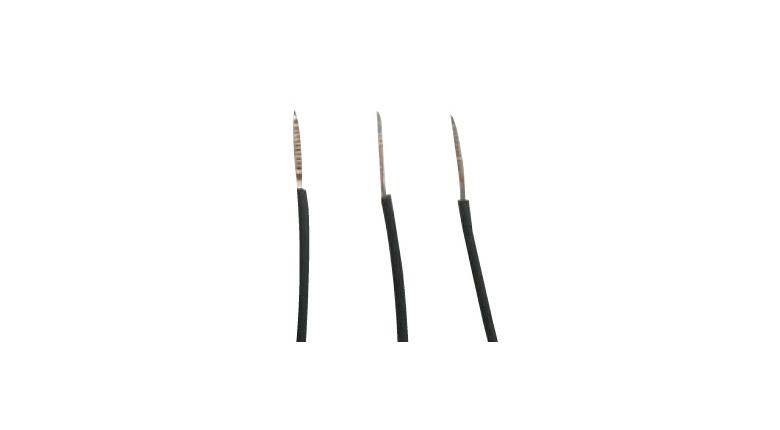

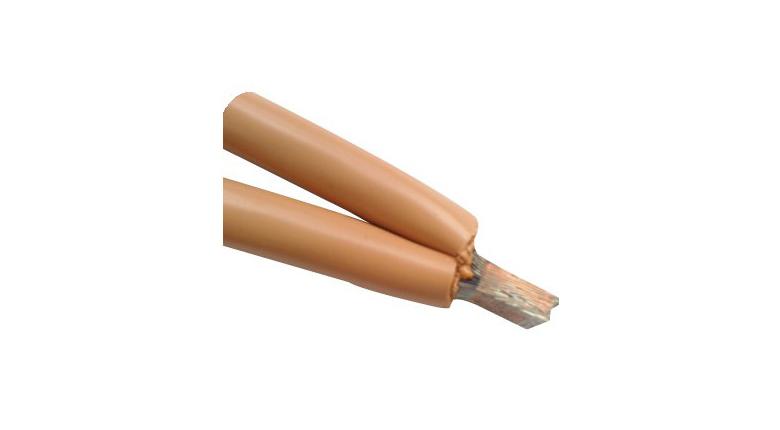

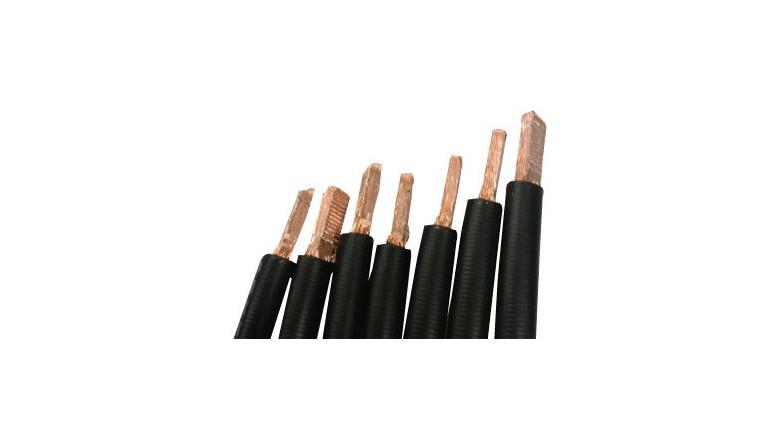

Cross section : 0.5mm ~ 36mm

KORMAX SYSTEM
Ultrasonic metal welding equipment manufacturer
The KM-series ultrasonic welding systems are designed and built to assure you the highest degree of reliability and weld quality, because we are synonymous with cutting-edge technologies from Germany, Korea, and the U.S.Ultrasonic metal welding is the most technologically advanced method of bonding conductive metals such as aluminum, copper, nickel, brass, gold, and silver.   Kormax has been standing at the forefront of developing high-quality ultrasonic metal welders that produce a variety of products ranging from tube seals, and spot welds to wire splices.   Kormax’s ergonomically designed systems offer manufacturers the fastest and cleanest method of reliably assembling components.With cycle times of only one second or fractions of a second and Kormax’s Intelligent Process Controls, productivity and quality are maximized.Unending commitments to process improvement, application advancement, engineering excellence, and customer service are the attributes that have made Kormax the smart choice for your ultrasonic metal welding tooling needs.
