Upper Mounted Type

TOP

Upper Mounted Type

Model Name

F/FH/FV-Series

Series

Freon Unit Cooler

View AllView All Series

Data

Manufacturer information

KyungDong R&HUnit cooler, Air cooling condenser, Cooling coil, Condenser and more

Problem with product info?

Update request

Manufacturer

KyungDong R&H

Brand

SKU

54523

Product Name

Upper Mounted Type

Model Name

F/FH/FV-Series

Size

Weight

Product Details

- Simplificatiom of the defrost and maintenance.
- Water spray defrost type.
- Easy installation to the floor mounted.
- Appropriate to the low temp, cold storage.
- High quality & efficiency.
- Long life & reliable operation.

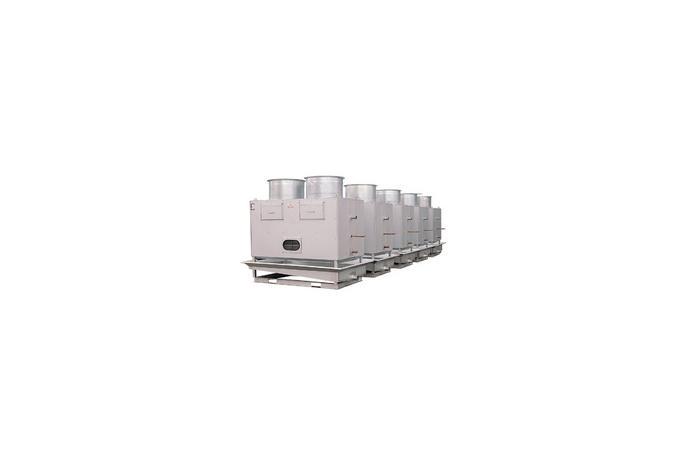

KyungDong R&H Upper Mounted Type F/FH/FV-Series

■ UNIT COOLER F, FH, FV SPECIFICATION

SPEC ＼ MODEL
ROOM TEMP
COIL MAT'L
DEFROST METHOD
FIN PITCH(M/M)
TRANSFER AREA(M2)
cooling capacity (kcal/h)		TD 5℃
		TD 7℃
		TD 10℃
FAN MOTOR
CURRENT(A)
FAN DIA(M/M)
AIR VOLUME(CMM)
PHASE/VOLTS
CASING
DEFROST	WATER AMOUNT (L/MIN)
CONNEC-TION DIA(M/M)	IN/OUT
	WATER IN
	DRAIN(M/M)
EXTERNAL SIZE(E)(LWH)F
EXTERNAL SIZE(E)(L'WH)FH
EXTERNAL SIZE(E)(LWH)FV
WEIGHT(KG)

KUC-F,FH,FV13			KUC-F,FH,FV16			KUC-F,FH,FV19
M	L	HL	M	L	HL	M	L	HL
±5℃	-5~-35℃	BELOW -35℃	±5℃	-5~-35℃	BELOW -35℃	±5℃	-5~-35℃	BELOW -35℃
CU TUBE (CU 1220T), AL PLATE(AL 1100)
살수식 전용(WATER)(단 FV 는 Heater 제상임)
8.5	10	12	8.5	10	12	8.5	10	12
117.7	129.1	134.5	1456.1	160.3	167	178.6	195.9	204.1
11,045	10,095	8,415	13,710	12,535	10,450	16,760	15,320	12,770
15,140	13,840	11,535	18,795	17,185	14,325	22,980	21,000	17,505
23,760	21,715	18,100	29,490	26,965	22,475	36,050	32,950	27,465
1.5KW * 6P * 2EA			1.5KW * 6P * 2EA			2.2KW * 6P * 2EA
13.6 / 7.8A			13.6 / 7.8A			19 / 11.2A
AXIAL φ610 * 2EA			AXIAL φ650 * 2EA			AXIAL φ700 * 2EA
220			278			340
3φ 220 / 380V 60Hz
갈바륨 도금판(GV)
134			"169			206
3/4" / 2"			3/4" / 2 1/2"			7/8" / 2 1/2"
40A			40A			50A
80A			80A			100A
175010902005			210010902005			250010902055
175010902150			210010902165			250010902265
182011001707			217011501807			257012001807
690			770			850

SPEC ＼ MODEL
ROOM TEMP
COIL MAT'L
DEFROST METHOD
FIN PITH(M/M)
TRANSFER AREA(M2)
cooling capacity (kcal/h)		TD 5℃
		TD 7℃
		TD 10℃
FAN MOTOR
CURRENT(A)
FAN DIA(M/M)
AIR VOLUME(CMM)
PHASE/VOLTS
CASING
DEFROST	WATER AMOUNT (L/MIN)
CONNEC-TION DIA(M/M)	IN/OUT
	WATER IN
	DRAIN(M/M)
EXTERNAL SIZE(E)(LWH)F
EXTERNAL SIZE(E)(L'WH)FH
EXTERNAL SIZE(E)(LWH)FV
WEIGHT(KG)

KUC-F,FH,FV22			KUC-F,FH,FV25			KUC-F,FH,FV28
M	L	HL	M	L	HL	M	L	HL
±5℃	-5~-35℃	BELOW -35℃	±5℃	-5~-35℃	BELOW -35℃	±5℃	-5~-35℃	BELOW -35℃
CU TUBE (CU 1220T), AL PLATE(AL 1100)
살수식전용(WATER)(단 FA는 Heater 제상임)
8.5	10	12	8.5	10	12	8.5	10	12
203	222.7	231.9	227.3	249.4	259.8	252.6	277.1	288.6
19,050	17,415	14,510	21,330	19,505	16,255	23,705	21,670	18,055
26,115	23,875	19,890	29,240	26,735	22,280	32,495	29,705	24,750
40,975	37,460	31,205	45,880	41,950	34,960	50,985	46,610	38,836
1.5KW * 6P * 3EA			1.5KW * 6P * 3EA			2.2KW * 6P * 3EA
20.4 / 11.7A			20.4 / 11.7A			28.5 / 16.8A
AXIAL φ610 * 3EA			AXIAL φ650 * 3EA			AXIAL φ700 * 3EA
386			433			480
3φ 220 / 380V 60Hz
갈바륨 도금판(GV)
235			263			480
7/8" / 2 1/2"			7/8" / 2 1/2"			7/8" / 2 1/2"
50A			50A			65A
100A			125A			125A
280010902005			310010902055			3100110902085
280010902175			310010902225			310011902295
287011001807			317012001957			317012001957
1,020			1,100			1,250
