product Image

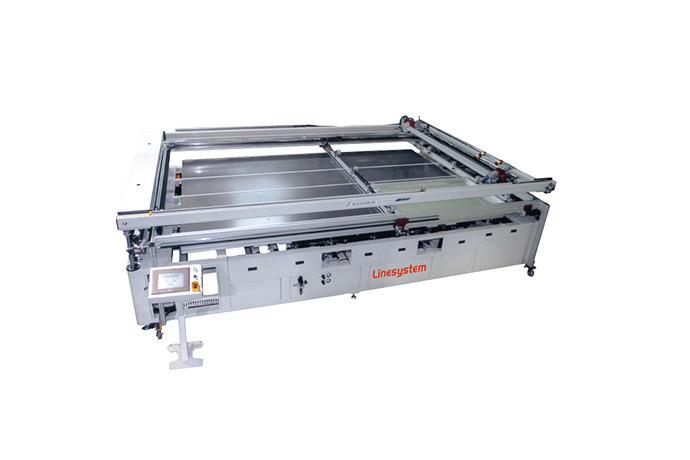

Large-Sized Fully Automatic Screen Printing Machine
Model Name
LSP-350240TIA
Series
Screen Printing Equipments
Data
-
Manufacturer information
provider logo
LINE SYSTEM

Screen printing machine manufacturer, Printing facility, Dryer, Plate making facility, Touch panel and more

Problem with product info?
Update request
Manufacturer
LINE SYSTEM
Brand
-
SKU
2980
Product Name
Large-Sized Fully Automatic Screen Printing Machine
Model Name
LSP-350240TIA
Size
-
Weight
-
Product Details

Characteristic

• Extra larged FULLY AUTOMATIC SCREEN PRINTING M/C.
• No additional setting is required according to change in the size of a printing material.
• Screen sliding out function(Easy to clean and inspect the plate).
• High-strength and low-vibration frame structure of body frame.
• Rotation of squeegee unit (Easy to hold or pull out and clean the squeegee).
• Setting speed, gap and printing range distance data with touch panel.
• Data standardization available.
• Even a non-experienced worker can operate the machine by the data standardization.
• Decrease of defect rate by maintenance of data.



Specification



LSP-350240TIA

Max.Printing Size

3500 × 2400mm

Min.Printing Size

1000 × 1000 mm

Printing Table Size

4000 × 2700 mm

Printing Speed

130pcs/h

Printing Material Thickness

10.5t ~ 19t

Max.Screen Frame Size(outer)

4500 × 2900 mm

Min.Screen Frame Size(outer)

1400 × 1400 mm

Frame Distance Driving

Servo Motor(Digital Setting)

Frame Distance Adjustment

0 ~ 30mm

Frame Fixing

Air Cylinder Clamp

Peel Off Adjustment

0 ~ 40mm

Squeegee Speed

100 ~ 800mm/sec

Squeegee Angle

60° ~ 90°

Squeegee Bias

±6

Air Source

6kgf/㎠

Weight

Approx.4000kg

Elec.Source

220V(380) × 3ph × 6kW

Dimension(W × D × H)

5780 × 5100 × 1435mm

* Special specification is made to order.
* Appearance and specifications in this homepage are subject to change without notice.
