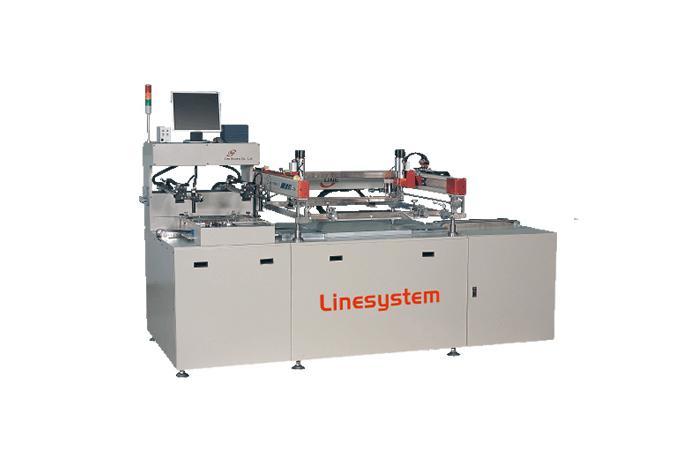

Vision System Fully Automatic Screen Printing Machine
Model Name
LSP-6551FV
Series
Screen Printing Equipments
Data
-
Manufacturer information
provider logo
LINE SYSTEM

Screen printing machine manufacturer, Printing facility, Dryer, Plate making facility, Touch panel and more

Problem with product info?
Update request
Manufacturer
LINE SYSTEM
Brand
-
SKU
2983
Product Name
Vision System Fully Automatic Screen Printing Machine
Model Name
LSP-6551FV
Size
-
Weight
-
Product Details

Characteristic

• Maintaining evenness of the making table by using aluminum.
• Shuttle-typed FULLY AUTOMATIC SCREEN PRINTING M/C.
• Simultaneous processes of printing, alignment and input, discharge improve productivity.
• Recognizing all patterns and colors of the mark.
• AC servo motor allows maintenance of constant squeegee speed.
• High-strength and low-vibrationstructure of body frame.
• Set the data for printing speed, printing stroke and etc.using touch panel.
• Standardization working by data management.



Specification



LSP-6551FV

Max.Printing Size

650 × 510mm

Min.Printing Size

300 × 300mm

Printing Speed

520pcs/h

Printing Pressure

0 ~ 95kgf

Table Alignment Accuracy

Stepping Motor

Max.Screen Frame Size(outer)

1000 × 1000mm

Screen Frame Fixing

Air Cylinder Clamp

Squeegee Speed

100 ~ 700mm/sec

Squeegee Angle

60° ~ 90°

Squeegee Bias

±6°

Table Driving

Servo Motor

Vision Alignment Accuracy

±5㎛(X, Y, θ)

CCD Camera

2set

Camera Illumination

LED Lamp

Camera View Area

6 × 6mm

Air Source

6kgf/㎠

Weight

Approx.1500kg

Elec.Source

220V(380) × 3ph × 5kW

Dimension(W × D × H)

2880 × 1350 × 1820mm<.div>

* Special specification is made to order.
* Appearance and specifications in this homepage are subject to change without notice.
