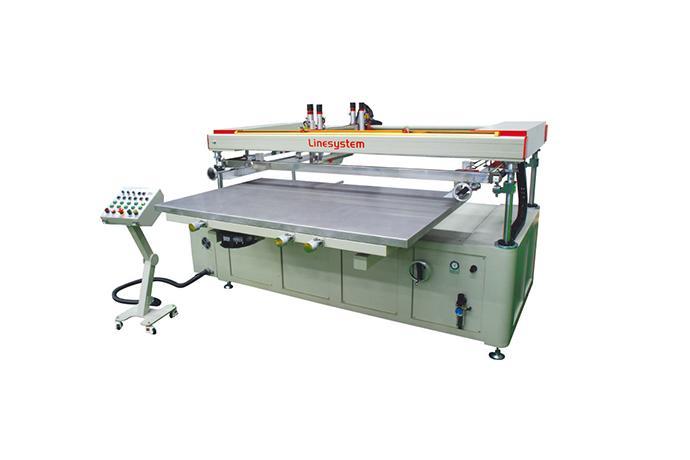

Large-Sized Semi Automatic Screen Printing Machine
Model Name
-
Series
Screen Printing Equipments
Data
-
Manufacturer information
provider logo
LINE SYSTEM

Screen printing machine manufacturer, Printing facility, Dryer, Plate making facility, Touch panel and more

Problem with product info?
Update request
Manufacturer
LINE SYSTEM
Brand
-
SKU
2997
Product Name
Large-Sized Semi Automatic Screen Printing Machine
Model Name
-
Size
-
Weight
-
Product Details

Characteristic

• One-touch screen fixing method air pressure.
• No trembling during up and down movement of the frame by selection the inverter control.
• Reinforced durability for up and down movement of the squeegee by selection a combined cylinder.
• Minimizing noise and vibration during forward and backward movement of the table with the two-step control.
• Using the inverter keeping steady speed maintenance.
• Maintaining evenness of the working table by using stainless steel and honeycom.

Option

1. SWING SQUEEGEE
2. TABLE BLOWING DEVICE
3. TOUCH PANEL

Specification



LSP-2412TI

LSP-3012TI

Max.Printing Size

2400 × 1200mm

3000 × 1200mm

Printing Table Size

2700 × 1400mm

3300 × 1400mm

Max.Screen Frame Size(outer)

2900 × 1600mm

3500 × 1600mm

Printing Speed

Max.200cycle/h

Max.180cycle/h

Printing Pressure

0 ~ 95kgf

0 ~ 60kgf

Peel Off

0 ~ 40mm

0 ~ 40mm

Squeegee Angle

60˚ ~ 90˚

60˚ ~ 90˚

Squeegee Bias

±6˚

±6˚

Air Source

6kgf/㎠

6kgf/㎠

Elec.Source

220V(380) × 3ph × 2kW

220V(380) × 3ph × 2kW

Weight

Approx.1600kg

Approx.1700kg

Dimension(W × D × H)

3700 × 2900 × 1450mm

4300 × 2900 × 1450mm

* Special specification is made to order.
* Appearance and specifications in this homepage are subject to change without notice..
