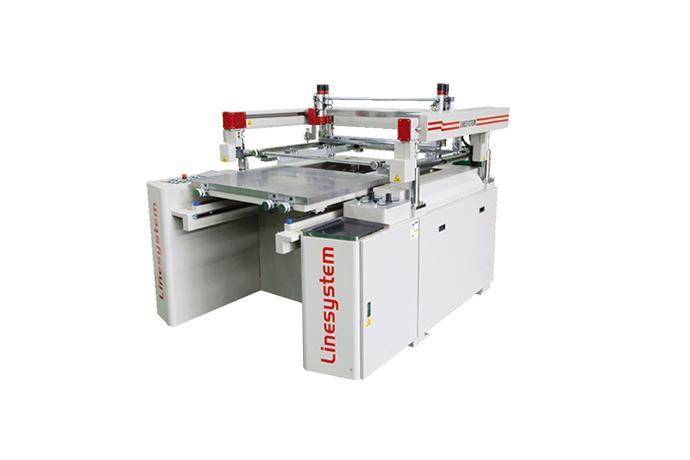

Four Post Semi Automatic Screen Printing Machine

Four Post Semi Automatic Screen Printing Machine

Model Name

LSP-6555FHC

Series

Screen Printing Equipments

View AllView All Series

Data

Manufacturer information

LINE SYSTEM

Screen printing machine manufacturer, Printing facility, Dryer, Plate making facility, Touch panel and more

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

LINE SYSTEM

Brand

SKU

2998

Product Name

Four Post Semi Automatic Screen Printing Machine

Model Name

LSP-6555FHC

Size

Weight

Product Details

Characteristic

• One-touch screen fixing method by using air pressure.
• Maintaining evenness of the working table by using aluminum alloy honeycom.
• Pell off synchronizes with squeegee, it enables precise printing without excessive tension of the screen.
• Using a servo motor.
• Reinforced durability for up and down movement of the squeegee by selecting a combined cylinder.
• Enhanced safety for operators by the dual safety devices.

Option

1. SWING SQUEEGEE
2. TABLE BLOWING DEVICE
3. AUTO TAKE OUT DEVICE(by CLIP)
4. STANDARD PIN

Specification

	LSP-6555FHC
Max.Printing Size	600 × 500mm
Printing Table Size	900 × 900mm
Printing Speed	500pcs/hour(7sec/cycle)
Printing Pressure	0 ~ 95kgf
Table Driving	A.C Geard Motor & Cam
Table Position Accuracy	±10µm
Max.Screen Frame Size(outer)	1000 × 1000mm
Min.Screen Frame Size(outer)	600 × 600mm
Screen Frame Fixing	Cylinder Clamp
Squeegee Speed	0 ~ 800mm/sec
Squeegee Angle	60° ~ 90°
Squeegee Bias	6°
Peel Off Adjustment	0 ~ 25mm
Air Source	6kgf/cm2
Elec.Source	220V(380) × 3ph × 3kW
Weight	Approx.1300kg
Dimension(W × D × H)	1520 × 2230 × 1500mm

* Special specification is made to order.
* Appearance and specifications in this homepage are subject to change without notice.
