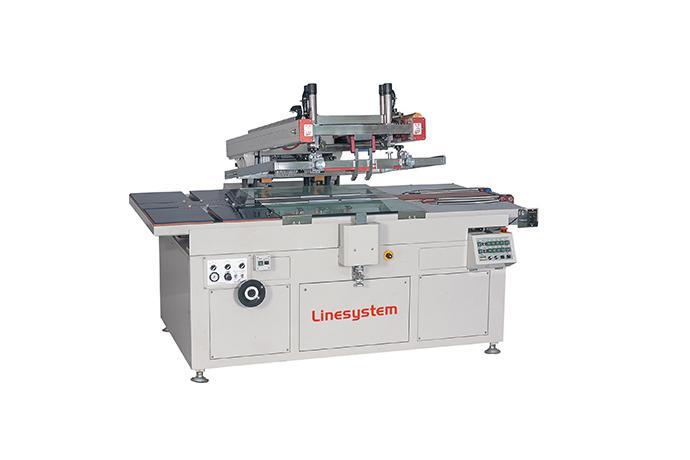

Three Quarter Automatic Screen Printing Machine
Model Name
LSP-6080SA
Series
Screen Printing Equipments
Data
-
Manufacturer information
provider logo
LINE SYSTEM

Screen printing machine manufacturer, Printing facility, Dryer, Plate making facility, Touch panel and more

Problem with product info?
Update request
Manufacturer
LINE SYSTEM
Brand
-
SKU
3005
Product Name
Three Quarter Automatic Screen Printing Machine
Model Name
LSP-6080SA
Size
-
Weight
-
Product Details

Characteristic

• THREE-QUARTER AUTOMATIC SCREEN PRINTING M/C that to make possible the automatic discharging.
• One-touch screen fixing method by using air pressure.
• 1 cycle : 4 seconds.
• High efficiency and low error rate.

Option

1. Swing Squeegee
2. Touch panel

Specification



LSP-6080SA

Max.Printing Size

600 × 800mm

Min.Printing Size

200 × 250mm

Table Position Accuracy

20㎛

Printing Table Size

900 × 1050mm

Printing Speed

900pcs/h

Printing Pressure

0 ~ 95kgf

Table Driving

AC Motor



±20㎛

Printing Material Fixing Type

Vacuum Generator

Max.Screen Frame Size(outer)

900 × 1100mm

Min.Screen Frame Size(outer)

550 × 850mm

Screen Frame Fixing

Cylinder Clamp

Peel Off

0 ~ 25mm

Squeegee Speed

0 ~ 800mm/sec

Squeegee Angle

60° ~ 90°

Squeegee Bias

±6°

Air Source

6kgf/㎠

Elec. Source

220V(380) × 3ph × 1.5kW

Weight

Approx.850kg

Dimension(W × D × H)

2250 × 1900 × 1550mm

* Special specification is made to order.
* Appearance and specifications in this homepage are subject to change without notice.
