Characteristic
• Ultra high-dfficiency dryer, using the short wavelength light.(0.8 ~ 1.5㎛)
• Momentary ON-OFF switch that does not require preheating process.
• Direct heat energy transfer method not by the existing heat convection but by the light energy.
• The drying time can be shortened by around 50% compared to that of the existing thermal drying method.
• The energy, radiated to air, is less, and the energy density is high.
• Drying at a low temperature is available, which prevents deformation of a drying object due to heat, and allows easy cooling.
• Open frame makes cleaning and maintenance convenient.
• Low heat emission improves the work environment.
• Ultra high-speed drying reduces cost.
Option
1. COOLING by AIRCON
2. FILTER of ASPIRATION
3. ANTI STATIC ELECTRICITY DEVICE
4. BELT CLEANING ROLLER5. TOUCH PANEL
Specification
|

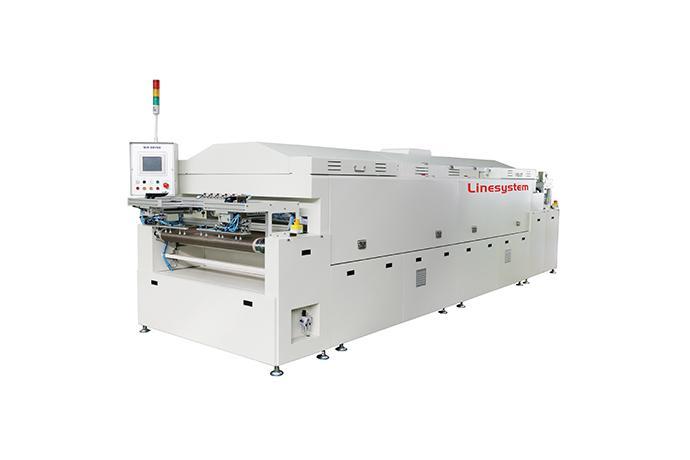

LSD-110NIR |
Over All Length |
10.7m(Drying 5.9m + Cooling 4.8m) |
Conveyor Width |
2.5m × 2Rooms=5.0m |
In Conveyor Length |
450mm |
Out Conveyor Length |
450mm |
Heating Source |
NIR Heater & FIN Heater |
Max.Temp |
180°C |
Temp.Control |
PID Control by SCR |
Contorl Material |
Teflon Mesh Belt(Mesh Pitch 5mm) |
Elec.Source(Drying) |
220V(380) × 3ph × 55kW |
Cooling Type |
Forced Air-Cooling Type |
Elec.Source(Cooling) |
220V(380) × 3ph × 12kW |
Dimension(L × W × H) |
10.7m × 1390mm × 1660mm |
* Special specification is made to order.
* Appearance and specifications in this homepage are subject to change without notice.
