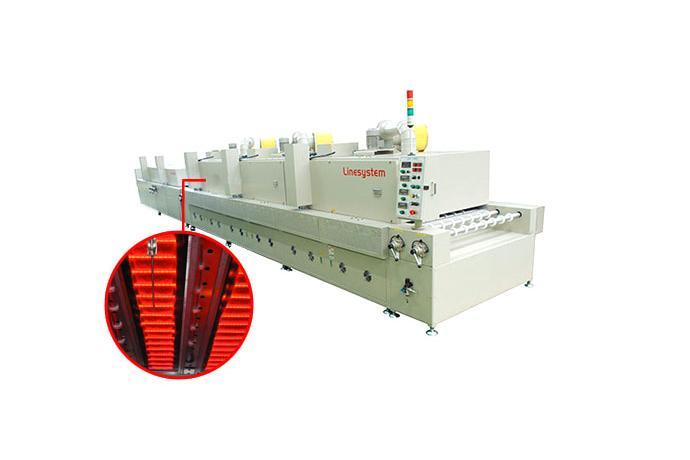

NIR Dryer & Cooling Conveyer
Model Name
LSD-NIR
Series
Drying Equipments
Data
-
Manufacturer information
provider logo
LINE SYSTEM

Screen printing machine manufacturer, Printing facility, Dryer, Plate making facility, Touch panel and more

Problem with product info?
Update request
Manufacturer
LINE SYSTEM
Brand
-
SKU
6286
Product Name
NIR Dryer & Cooling Conveyer
Model Name
LSD-NIR
Size
-
Weight
-
Product Details

Characteristic

• Ultra high-dfficiency dryer, using the short wavelength light. (0.8 ~ 1.5㎛)
• Momentary ON-OFF switch that does not require preheating process.
• Direct heat energy transfer method not by the existing heat convection but by the light energy.
• The drying time can be shortened by around 50% compared to that of the existing thermal drying method.
• The energy, radiated to air, is less, and the energy density is high.
• Drying at a low temperature is available, which prevents deformation of a drying object due to heat, and allows easy cooling.
• Open frame makes cleaning and maintenance convenient.
• Low heat emission improves the work environment.
• Ultra high-speed drying reduces cost.

Option

  1. COOLING by AIRCON
  2. FILTERING SYSTEM
  3. ANTI STATIC ELECTRICITY DEVICE
  4. BELT CLEANING ROLLER
  5. TOUCH PANEL

Specification



LSD-NIR

Temperature

50℃ ~ 200℃

Heating Source

NIR Heater & FIN Heater

Cooling Type

Forced Air-Cooling Type

Heating Quantity

2m × Order Spec.

Belt Width

Order Spec.

Belt Speed

Order Spec.

Temp.Control

PID Control by SCR

Dimension(W × D × H)

Order Spec.

* Special specification is made to order.
* Appearance and specifications in this homepage are subject to change without notice.
