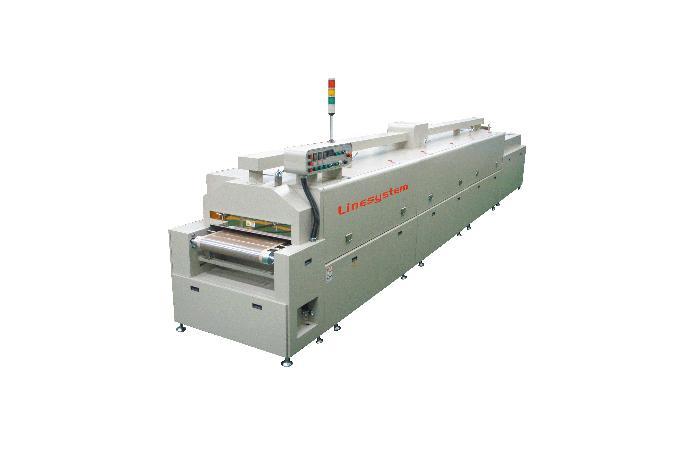

product Image
I.R Dryer Conveyor Machine
Model Name
LSD-IR Series
Series
Drying Equipments
Data
-
Manufacturer information
provider logo
LINE SYSTEM

Screen printing machine manufacturer, Printing facility, Dryer, Plate making facility, Touch panel and more

Problem with product info?
Update request
Manufacturer
LINE SYSTEM
Brand
-
SKU
6288
Product Name
I.R Dryer Conveyor Machine
Model Name
LSD-IR Series
Size
-
Weight
-
Product Details

Characteristic

• Belt warp prevention device.
• Dual frame structure for heat insulation(blocking the heat transfer).
• Alarming device for temperature distribution checkup.
• Constant heat circulation structure for ideal temperature distribution.
• Self-developed high-dfficiency IR heater.
• Circuit design for dual safety protection.
• High tightness and almost zero heat emission.
• Maximizing utilization of the properties of far infrared ray.
• Low power consumption and dfficient operation.

Option

  1. BELT CLEANING ROLLER
  2. DOUBLE COVER DEVICE
  3. COOLING by AIRCONDIETION
  4. AUTO UPPER PART & DOWN SYSTEM
  5. FILTER of ASPIRATION
  6. ANTI STATIC ELECTRICITY DEVICE
  7. TOUCH PANEL

Specification



LSD-60IR

LSD-80IR

Temperature

50 ~ 180°C

50 ~ 180°C

Heating Source

I.R Heater & Fin Heater

I.R Heater & Fin Heater

Cooling Type

Forced Air-Cooling Type

Forced Air-Cooling Type

Belt Width

650mm

850mm

Belt Speed

2 ~ 20m/min

2 ~ 20m/min

Temperature Control

P.I.D System(Digital)

P.I.D System(Digital)

Elec.Source

220V × 3p × Order Spec.W

220V × 3p × Order Spec.W

Dimension(L × W × H)

Order Spec

Order Spec

* Special specification is made to order.
* Appearance and specifications in this homepage are subject to change without notice
