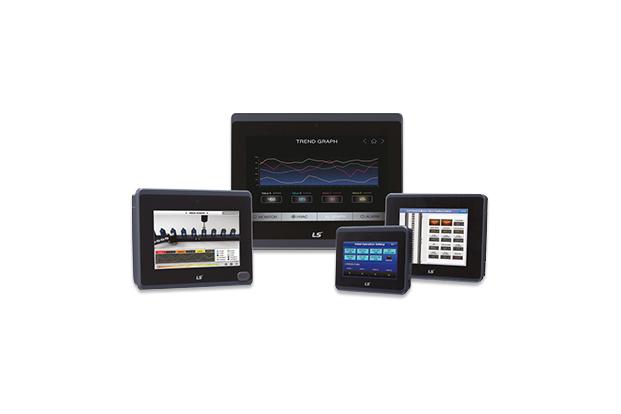

eXP2 Series
More Convenient Control
User-oriented interface, more powerful performance, fast screen changes and high levels of responsiveness.
Performance Enhancement (eXP → eXP2)
More Convenient Control
User-oriented interface, more powerful performance, fast screen changes and high levels of responsiveness.
Portrait Mode
ㆍVertical Mounting is available
ㆍSetting in XP-Builder: [COMMON]-[Project Property Setting]
Item | eXP | eXP2 |
---|---|---|
Vertical Mode | eXP20 Only | O |
PDF Viewer | X | O |
FTP Client | X | O |
VNC Client | X | O |
PDF Viewer
ㆍPDF files can be displayed on XGT Panel.
ㆍIn the event of an alarm, the content of the alarm's trouble shooting can be checked on site as a PDF file.
ㆍPDF files on an FTP server can be displayed using a PDF viewer object.
FTP Client
ㆍFTP client is an object that can connect to the FTP server, display the list of files and directories on the FTP server, and download the selected file.
ㆍPDF files on an FTP server can ve displayed using a PDF viewer object.
VNC Viewer
ㆍRemotely monitoring PC or HMI using VNC Viewer is available
- Download VNC server to HMI using XP-Manager.
- Install a universal VNC server on your PC. (Ultra VNC, Real VNC, etc.)
ㆍAdd 'VNC Viewer' object to the project screen.
Model Naming
*1) Advanced Model: 07/10 model only
*2) Basic model: 05/07 model only
Hardware Description
① Front Screen · Analog Touch pannel
· HMI status indication (On: Blue)
· Mounting bracket
④ USB Device · Logging/Recipe/Screen data backup · Download/Upload project · Upload project file · XGT Panel update
· Backup of data such as alarm/logging/recipe and storage of screen data · Send/Receive project data, Send XP-runtime
· USB memory connection: logging/recipe/screen data backup · Project data transfer/backup · User interface connection: mouse/keyboard · Printer connection |
⑦ Battery Cover · Reset switch, Backup battery, Setting switch * Please refer to user's manual.
· Power input (24VDC)
⑨ Ethernet Terminal · Ethernet: 10Base-T/100Base-TX 1) Send project data 2) Receive backup data and project file 3) Send XP-Runtime 4) PLC/Control device communication
· RS-422/485: PLC or control device communication
⑪ COM1, COM2 Connector · RS-485, RS-232C: PLC or control device communication |
General Information
□*: (WinCE 7.0 Core), 1 (WinCE 7.0 Pro)
Note 1) IP66 for UL Type 4X models.
