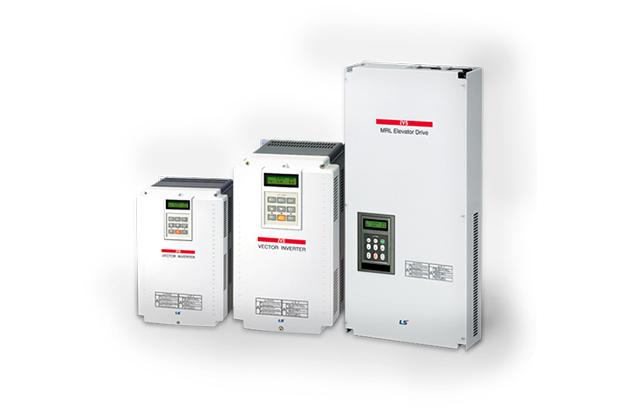

Low Voltage VFD (Vector Drive)
Model Name
iV5
Series
Inverter (VFD (Smart Automation Solution))
Data
Catalog-LS ELECTRIC-Low Voltage VFD-Drive Solution Catalog
Manufacturer information
provider logo
LS ELECTRICSmart Power Solution, Low Voltage, Smart Automation Solution, PLC, Smart Railway Solution, Signaling System and more
Problem with product info?
Update request
Manufacturer
LS ELECTRIC
Brand
-
SKU
133140
Product Name
Low Voltage VFD (Vector Drive)
Model Name
iV5
Size
-
Weight
-
Product Details

Features

Optimized Solution for System Drive

Control the crane, elevator, and continuous line system based on powerful performance

High Performance Control system

Speed/Torque control, SIN/COS encoder, PM sensorless, auto tuning, endat encoder, draw/droop/process PID controls, built-in brake control.

User-friendly Interface

user-friendly keypads, various field bus options, and DriveView management

Various Option for System Application

Synchronize, SIN/COS encoder (Endat encoder), Extension I/O, EL I/O option



Type Designation



Specification

200V Class

Type : SV[ ][ ][ ]iV5-2(DB) 022 037 055 075 110 150 185 220 300 370
Maximum applicable [HP] 3 5 7.5 10 15 20 25 30 40 50
motor ranges 1) [kW] 2.2 3.7 5.5 7.5 11 15 18.5 22 30 37
Rated Output Capacity[kVA] 2) 4.5 6.1 9.1 12.2 17.5 22.5 28.2 33.1 46 55
Rated Current [A] 12 16 24 32 46 59 74 88 122 146
Output speed 0 ~ 3600 (rpm)
Output voltage 0 ~ 200V(230V) 3)
Rated input Voltage 3Ø 200 ~ 230V (-10% ~ +10%)
Frequency 50 ~ 60Hz (±5%)
Weight[Kg(Ibs)] 6(13) 6(13) 7.7(16.9) 7.7(16.9) 13.7(30.2) 13.7(30.2) 20.3(44.7) 20.3(44.7) 42(93) 42(93)



400V Class (AC Power Input Type)

Type : SV[ ][ ][ ]iV5-4(DB) 022 037 055 075 110 150 185 220 300 370
Maximum applicable [HP] 3 5 7.5 10 15 20 25 30 40 50
motor ranges [kW] 2.2 3.7 5.5 7.5 11 15 18.5 22 30 37
Rated output Capacity[kVA] 4.5 6.1 9.1 12.2 18.3 22.9 29.7 34.3 46 57
Rated Current [A] 6 8 12 16 24 30 39 45 61 75
Output speed 0 ~ 3600 (rpm)
Output voltage 0 ~ 380V(480V) 3)
Rated input Voltage 3Ø 380 ~ 480V (-10% ~ +10%) 4)
Frequency 50 ~ 60Hz (±5%)
Weight[Kg(Ibs)] 6(13) 6(13) 7.7(16.9) 7.7(16.9) 13.7(30.2) 13.7(30.2) 20.3(44.7) 20.3(44.7) 42(93) 42(93)



Type : SV[ ][ ][ ]iV5-4(DB) 450 550 750 900 1100 1320 1600 2200 2800 3150 3750 5000 8000
Maximum applicable [HP] 60 75 100 120 150 175 215 300 373 420 500 600 1067
motor ranges [kW] 45 55 75 90 110 132 160 220 280 315 375 500 800
Rated output Capacity[kVA] 70 85 116 140 170 200 250 329 416 468 557 732 1105
Rated Current [A] 91 110 152 183 223 264 325 432 546 614 731 960 1384
Output speed 0 ~ 3600 (rpm)
Output voltage 0 ~ 380V(460V) 3)
Rated input Voltage 3Ø 380 ~ 480V (-10% ~ +10%) 4)
Frequency 50 ~ 60Hz (±5%)
Weight[Kg(Ibs)] 63
(139)
63
(139)
68
(150)
98
(216)
98
(216)
122
(269)
122
(269)
175
(386)
243
(536)
380
(838)
380
(838)
476
(1050)
589
(1300)



400V Class (DC Power Input Type)

SV [ ] [ ] [ ] iV5-4DC 055 075 110 150 185 220 300 370 450 550
Maximum applicable [HP] 7.5 10 15 20 25 30 40 50 60 75
motor ranges 1) [kW] 5.5 7.5 11 15 18.5 22 30 37 45 55
output Capacity[kVA] 2) 9.1 12.2 18.3 22.9 29.7 34.3 46 57 70 85
Rated Current [A] 12 16 24 30 39 45 61 75 91 110
Speed 0 ~ 3600 (rpm)
Voltage 0 ~ 380V(480V) 3)
Input Rated Voltage DC 540 ~ 680V(+10% ) 5)
Drive weight [Kg(Ibs)] 12(26) 12(26) 24(53) 24.5(54) 25(55) 25(55) 38.5(84) 38.5(84) 50(110) 50(110)



SV [ ] [ ] [ ] iV5-4DC 750 900 1100 1320 1600 2200 2800 3150 3750 5000
Maximum applicable [HP] 100 120 150 175 215 300 373 420 500 666
motor ranges 1) [kW] 75 90 110 132 160 220 280 315 375 500
output Capacity[kVA] 2) 116 140 170 200 250 329 416 468 557 732
Rated Current [A] 152 183 223 264 325 432 546 614 731 960
Speed 0 ~ 3600 (rpm)
Voltage 0 ~ 380V(480V) 3)
Input rated Voltage DC 540 ~ 680V(+10% ) 5)
Drive weight [Kg(Ibs)] 55
(121)
79
(174)
79
(174)
98.5
(217)
98.5
(217)
154.5
(340)
206
(454)
343
(756)
343
(756)
466
(1028)



400V Class (MRL)

SV [ ] [ ] [ ] iV5-4(MRL) 075 110 150 220
Maximum applicable [HP] 10 15 20 30
motor ranges [kW] 7.5 11 15 22
Rated output Capacity[kVA] 2) 13.7 20.6 27.5 39.6
Rated Current [A] 18 27 36 52
Output speed 0 ~ 200 (rpm)
Output voltage 380V~480V 3)
Rated input Voltage 3Ø 380 ~ 480V (-10% ~ +10%)
Frequency 50~60Hz (±5%)
Weight[Kg(Ibs)] 14(30.8) 14(30.8) 18.7(41) 19(41.8)

1) It represents the output capacity 05 maximum applicable motor in case LG-OTIS 4-pole motor is used.

2) Rated capacity (= 3VI) is calculated based on 220V for 200V class, 440V for 400V class.

3) Maximum output voltage cannot be generated greater than the specified input voltage.

4) The rated current is derated by 10% when the input voltage is in the range above 480V.

5) The rated current is derated by 10 % above the 680 VDC of input voltage.
