XR4145, XR4150, XR4155, XR4160
Features

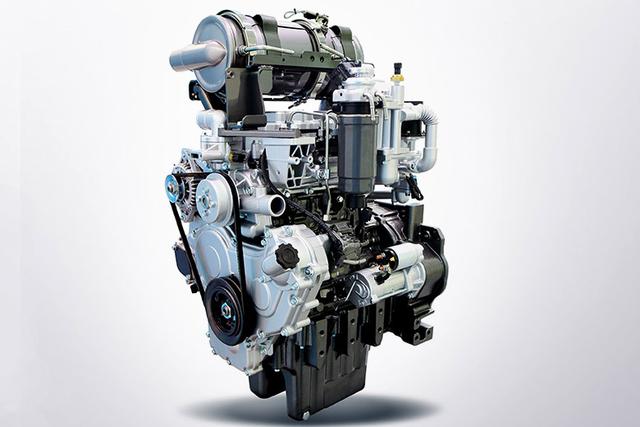

Tier 4 engine Meets EPA'S most stringent emission standards while delivering rated horsepower quietly with low vibration | New front design More stylish chrome plated front design | Ergonomically designed 3- point hitch controls and fender mounted joystick Easily accessible for maximum comfort and convenience. |
Large Fuel Tank Get large fuel size (47L) for longer operation time and more convenience for fuel injection | Transmission F32 x R32 with Super creeper function provides the best performance for a variety of jobs | Independent PTO Independent PTO easily operated by switch on the dashboard. |
Water proof Front Axle Water and rust proof front axle features a strong structure and durability It offers the best performance in paddy fields. | Easy & Convenient switch control panel Enable to operate easily by switch control 1. | DPF Switch DPF Off switch is useful for certain environmentally clean areas such as Parks. |
DashPanel All of the important functional data is yours at a glance to keep you in better control of your tractor. | Remote Valves Max 2 pairs of remote valves ensure convenient use of any commercial application. | Hydrostatic power steering with tilt Makes turning easier, improves control and reduces fatigue and enhances comfort. |
Specification
| Category | XR3135 CABIN | XR3135 ROPS | XR3140 CABIN | XR3140 ROPS | |
| Dimensions & Weight | Overall length, Bumper to link (mm) | 3259 | |||
|---|---|---|---|---|---|
| Overall width with tires (mm) | 1572 | ||||
| Wheelbase (mm) | 1754 | ||||
| Height to top (mm) | 2199 | 2379 | 2199 | 2379 | |
| Total weight without ballast (kg) | 1640 | 1440 | 1640 | 1440 | |
| Tires | Front | 7-14 | |||
| Rear | 11.2-24 | ||||
| PTO | Type | Independent | |||
| Mid (rpm) *options | 2000 | ||||
| Rear (rpm) | 540 / 750 / 1000 | ||||
| Hydraulic | Control system | Position / Draft | |||
| Implement pump (lpm) | 31.2 | ||||
| Category, 3 pt hitch | CAT Ⅰ | ||||
| Hitch lift capacity, Link end (kgf) | 820 | ||||
| Remote ports *options | 4 (Front), 2 / 4 (Rear) | ||||

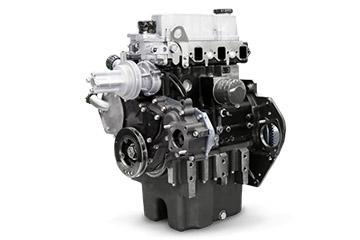

| Engine | Type | 3Cyl. In-line Vertical, Water-cooled 4cycle Turbo Diesel, CRDI | |||
| Model | L3C19-T | ||||
| Emission | EPA & CARB Tier4, EC Stage Ⅲ B | ||||
| Engine Hp (kW) | 35 (26.1) | 40 (29.8) | |||
| PTO Hp | Gear: 29.8 HST: 28.0 | Gear: 34.0 HST: 32.0 | |||
| Rated speed (rpm) | 2600 | ||||
| Displacement (cc) | 1879 | ||||
| Fuel Tank Capacity (L) | 47 | 40 | 47 | 40 | |
| Traveling system | Transmission Type *options | Synchro Shuttle / HST | |||
| No. of speed | F12 × R12 (Synchro Shuttle) / 3Range (HST) | ||||
| Forward Speed (Km/h) | 1.2 ~ 23 (Synchro Shuttle) / 0 ~ 23.3 (HST) | ||||
| Category | XR4140 CABIN | XR4140 ROPS | XR4145 CABIN | XR4145 ROPS | |
| Dimensions & Weight | Overall length, Bumper to link (mm) | 3413 | |||
|---|---|---|---|---|---|
| Overall width witd tires (mm) | 1611 | ||||
| Wheelbase (mm) | 1858 | ||||
| Height to top (mm) | 2282 | 2411 | 2282 | 2411 | |
| Total weight without ballast (kg) | 1986 | 1755 | 1986 | 1755 | |
| Tires | Front | 9.5 - 16 | |||
| Rear | 13.6-24 | ||||
| PTO | Type | Independent | |||
| Mid (rpm) *options | 2000 | ||||
| Rear (rpm) | 540 / 750 / 1000 | ||||
| Hydraulic | Control system | Position / Draft | |||
| Implement pump (lpm) | 31.2 | ||||
| Category, 3 pt hitch | CAT Ⅰ | ||||
| Hitch lift capacity, Link end (kgf) | 1250 | ||||
| Remote ports *options | 4 (Front), 2 / 4 (Rear) | ||||
| Engine | Type | 3Cyl. In-line Vertical, Water-cooled 4cycle Turbo Diesel, CRDI | |||
| Model | L3C19-T | ||||
| Emission | EPA & CARB Tier4, EC Stage Ⅲ B | ||||
| Engine Hp (kW) | 40 (29.8) | 45 (33.6) | |||
| PTO Hp | Gear: 34.0 HST: 32.0 | Gear: 38.3 HST: 36.0 | |||
| Rated speed (rpm) | 2600 | ||||
| Displacement (cc) | 1879 | ||||
| Fuel Tank Capacity (L) | 47 | 40 | 47 | 40 | |
| Traveling system | Transmission Type *options | Synchro Shuttle / HST | |||
| No. of speed | F16 × R16 (Synchro Shuttle) / 3 Range (HST) | ||||
| Forward Speed (Km/h) | 1.1 ~ 27 (Synchro Shuttle) / 0 ~ 25.1 (HST) | ||||

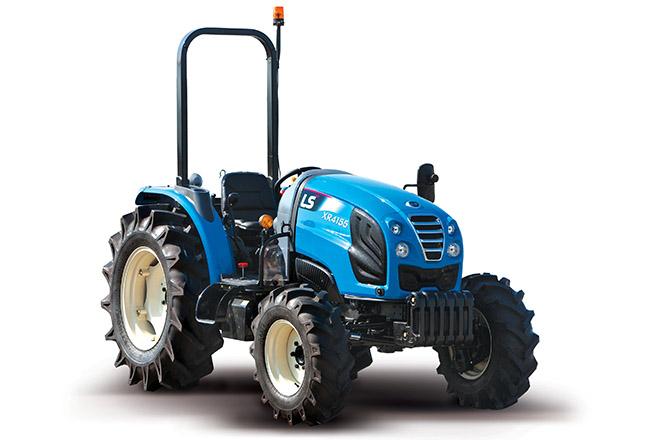

| Category | XR4150 CABIN | XR4150 ROPS | XR4155 CABIN | XR4155 ROPS | |
| Dimensions & Weight | Overall length, Bumper to link (mm) | 3413 | |||
|---|---|---|---|---|---|
| Overall width witd tires (mm) | 1611 | ||||
| Wheelbase (mm) | 1858 | ||||
| Overall height to top ROPS/Cab (mm) | 2282 | 2411 | 2282 | 2411 | |
| Total weight without ballast (kg) | 1986 | 1755 | 1986 | 1755 | |
| Tires | Front | 9.5 - 16 | |||
| Rear | 13.6-24 | ||||
| PTO | Type | Independent | |||
| Mid (rpm) *options | 2000 | ||||
| Rear (rpm) | 540 / 750 / 1000 | ||||
| Hydraulic | Control system | Position / Draft | |||
| Implement pump (lpm) | 31.2 | ||||
| Category, 3 pt hitch | CAT Ⅰ | ||||
| Hitch lift capacity, Link end (kgf) | 1250 | ||||
| Remote ports *options | 4 (Front), 2 / 4 (Rear) | ||||
| Engine | Type | 3Cyl. In-line Vertical, Water-cooled 4cycle Turbo Diesel, CRDI | |||
| Model | L3C19-T | ||||
| Emission | EPA & CARB Tier4, EC Stage Ⅲ B | ||||
| Engine Hp (kW) | 50 (37.3) | 55 (41) | |||
| PTO Hp | Gear: 42.5 HST: 40.0 | Gear: 46.8 HST: 44.0 | |||
| Rated speed (rpm) | 2600 | ||||
| Displacement (cc) | 1879 | ||||
| Fuel Tank Capacity (L) | 47 | 40 | 47 | 40 | |
| Traveling system | Transmission Type *options | Synchro Shuttle / HST | |||
| No. of speed | F16 × R16 (Synchro Shuttle) / 3 Range (HST) | ||||
| Forward Speed (Km/h) | 1.1 ~ 27 (Synchro Shuttle) / 0 ~ 25.1 (HST) | ||||
