No.1 Agricultural machine manufacturer in Korea

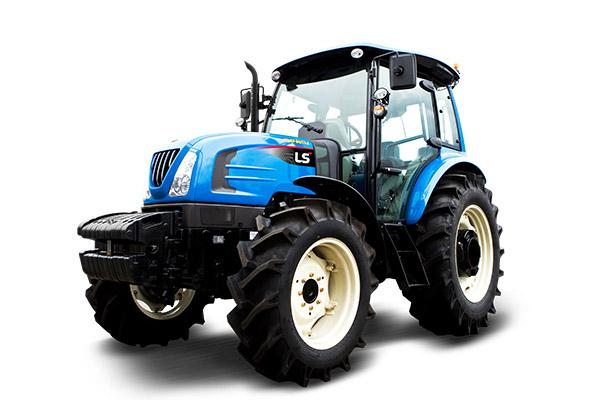

PS70, PS80, PS90, PS100, LS704, LS804, LS904, LS1004
Space Optimization Cabin size increased for operator’s comfort. - Round & Slim Roof, More visibility & Spacious feel with Wide door. - Lower Roof height for low ceiling spaces. | Turbo Intercooler Supplying highly compressed air by cooling the compressed air in the turbo improves output, torque and fuel efficiency. | Advanced Air cleaner system Provides 95 purification output and easy maintenance thanks to the longer filter use period. |
Comfort Cabin (CABIN model only) Offers unobstructed view in AC/heated comfort and includes interior lighting, front & rear wiper/washer, side mounted mirrors deluxe AM/FM/CD Stereo. | Automatic hydraulic 4WD brake If the operator hits the both right/left brake, 2WD changes to 4WD automatically strengthening the brake function. | Power Shuttle lever (optional) Maximizes ease of use with effortless, clutch-less directional changes. |
Remote valves 3 pairs of remote valves ensure convenient use of any commercial application. | Improved Rear view Enlarged rear-bottom glass gives better view for rear hitch and PTO link. | Easy & Convenient switch control panel Enable to operate easily By switch control. 1. 4WD switch 2. Electro-hydraulic differential locking switch 3. PTO auto/manual 4. Work/ Drive mode |
Main gearshift Lever Provides optimal operating capability by smooth gear shifting. Hi/Low shift button (Power shuttle only) Convenient Hi/Low shift button does not require clutch and supports F24 x R24 wide range of gear shifting (F40 x R40 with Creeper) | Large Fuel Tank / Fuel cap security key box Get longer operation time with the larger fuel tank size (100ℓ ). The fuel cap security key box prevents fuel theft. | Loader Joystick When work with Front loader or grader, the loader control lever provides more convenience for its attach/detachment and more productivity for its operation. |
Independent PTO Standard equipped Independent PTO meets your needs for a variety of jobs in the field. | Finger trip type Electro-hydraulic control panel Integrated switch box with electro-hydraulic control lever puts easy control at your fingertips. (More convenient 3 point link control) | Front Sunshade Scroll type front Sunshade gives more comfort for operators. |
Instructor Seat An instructor seat is available which is useful when giving tutorials to new operators. | Rear lamp / Outer Hydraulic control buttons LED type rear lamp improves visibility even in the daytime and Outer hydraulic control buttons help the operator to attach/detach the implements easily. | Tilt instrument panel Tilt instrument panel gives the operator a wider view. |
| Category | PLUS70 CABIN | PLUS70 ROPS | PLUS80 CABIN | PLUS80 ROPS | |
| Dimensions & Weight | Overall length, Bumper to link (mm) | 4085 | |||
|---|---|---|---|---|---|
| Overall width with tires (mm) | 1976 | 1976 | 1976 | 1976 | |
| Wheelbase (mm) | 2200 | 2200 | 2200 | 2200 | |
| Overall height to top ROPS/Cab (mm) | 2625 | 2657 | 2625 | 2657 | |
| Total weight without ballast (kg) | 3124 | 2976 | 3148 | 3000 | |
| Tires | Front (options) | 11.2-24 | 11.2-24 | 11.2-24 | 11.2-24 |
| Rear | 16.9-30 | 16.9-30 | 16.9-30 | 16.9-30 | |
| PTO | Type (options) | Independent / GSP | Independent / GSP | ||
| Base speed (rpm) | 540/750/1000 | 540/750/1000 | |||
| Hydraulic | Control system (options) | Position / Draft | Position / Draft | ||
| Remote Ports (options) | 4/6 (front), 4/6 (rear) | 4/6 (front), 4/6 (rear) | |||
| Engine | Engine Hp(kW) | 71(53) | 79(59) | ||
| Rated speed (rpm) | 2300 | 2300 | |||
| Traveling system | Transmission Type (options) | Synchro shuttle / Power shuttle | Synchro shuttle | Synchro shuttle / Power shuttle | Synchro shuttle |
| No. of speed | 20Fx20R (Synchro shuttle) / 40Fx40R (Power shuttle with creeper) | 20Fx20R With creeper | 20Fx20R (Synchro shuttle) / 40Fx40R (Power shuttle with creeper) | 20Fx20R With creeper | |
| Forward Speed (Km/h) | 0.19 ~ 35.1 / 0.16 ~ 35.7 | 0.19~35.1 | 0.19 ~ 35.1 / 0.16 ~ 35.7 | 0.19~35.1 | |
| Category | PLUS90 CABIN | PLUS90 ROPS | PLUS100 CABIN | PLUS100 ROPS | |
| Dimensions & Weight | Overall length, Bumper to link (mm) | 4085 | |||
|---|---|---|---|---|---|
| Overall width with tires (mm) | 2009 | 2009 | 2019 | 2009 | |
| Wheelbase (mm) | 2200 | 2200 | 2290 | 2200 | |
| Overall height to top ROPS/Cab (mm) | 2650 | 2677 | 2650 | 2677 | |
| Total weight without ballast (kg) | 3182 | 3034 | 3402 | 3034 | |
| Tires | Front (options) | 12.4-24 | 12.4-24 | 12.4-24 | 12.4-24 |
| Rear | 18.4-30 | 18.4-30 | 16.9-34 | 18.4-30 | |
| PTO | Type (options) | Independent / GSP | Independent / GSP | ||
| Base speed (rpm) | 540/750/1000 | 540/750/1000 | |||
| Hydraulic | Control system (options) | Position / Draft | Position / Draft | ||
| Remote Ports (options) | 4/6 (front), 4/6 (rear) | 4/6 (front), 4/6 (rear) | 2 (front), 6(rear) | ||
| Engine | Engine Hp (kW) | 87(65) | 95(71) | ||
| Rated speed (rpm) | 2300 | 2300 | |||
| Traveling system | Transmission Type (options) | Synchro shuttle / Power shuttle | Synchro shuttle | Synchro shuttle / Power shuttle | Synchro shuttle |
| No. of speed | 20Fx20R (Synchro shuttle) / 40Fx40R (Power shuttle with creeper) | 20Fx20R With creeper | 20Fx20R (Synchro shuttle) / 40Fx40R (Power shuttle with creeper) | 20Fx20R | |
| Forward Speed (Km/h) | 0.19 ~ 36.4 / 0.16~36.9 | 0.19~36.4 | 0.2 ~ 37.7 / 0.17 ~ 38.1 | 1.8~36.4 | |
| Category | LS704 CABIN | LS704 ROPS | LS804 CABIN | LS804 ROPS | |
| Dimensions & Weight | Overall length, Bumper to link (mm) | 4335 | |||
|---|---|---|---|---|---|
| Overall width with tires (mm) | 1978 | ||||
| Wheelbase (mm) | 2345 | ||||
| Overall height to top ROPS/Cab (mm) | 4WD: 2651, 2WD: 2626 | 4WD: 2649, 2WD: 2624 | 4WD: 2651, 2WD: 2626 | 4WD: 2649, 2WD: 2624 | |
| Total weight without ballast (kg) | 4WD: 3255, 2WD: 3155 | 4WD: 3005, 2WD: 2905 | 4WD: 3275, 2WD: 3175 | 4WD: 3025, 2WD: 2925 | |
| Tires | Front (options) | 4WD: 12.4 - 24, 2WD: 6.5 - 20 | |||
| Rear | 16.9 - 34 | ||||
| PTO | Type (options) | Independent | |||
| Base speed (rpm) | 540 / 750 or 540 / 750 / 1000 | ||||
| Hydraulic | Control system | Position / Draft | |||
| Remote Ports (options) | 4 (rear) | ||||
| Engine | Engine Hp (kW) | 69.1 (51.5) | 78.9 (58.8) | ||
| Rated speed (rpm) | 2200 | ||||
| Traveling system | Transmission Type (options) | Synchro shuttle | |||
| No. of speed | 12F × 12R | ||||
| Forward Speed (Km/h) | 1.7 ~ 34.3 | ||||
| Category | LS904 CABIN | LS904 ROPS | LS1004 CABIN | LS1004 ROPS | |
| Dimensions & Weight | Overall length, Bumper to link (mm) | 4335 | |||
|---|---|---|---|---|---|
| Overall width with tires (mm) | 1978 | ||||
| Wheelbase (mm) | 2345 | ||||
| Overall height to top ROPS/Cab (mm) | 4WD: 2651, 2WD: 2626 | 4WD: 2649, 2WD: 2624 | 4WD: 2651, 2WD: 2626 | 4WD: 2649, 2WD: 2624 | |
| Total weight without ballast (kg) | 4WD: 3285, 2WD: 3185 | 4WD: 3130, 2WD: 3010 | 4WD: 3300, 2WD: 3200 | 4WD: 3145, 2WD: 3050 | |
| Tires | Front (options) | 4WD: 12.4 - 24, 2WD: 6.5 - 20 | |||
| Rear | 16.9 - 34 | ||||
| PTO | Type (options) | Independent | |||
| Base speed (rpm) | 540 / 750 or 540 / 750 / 1000 | ||||
| Hydraulic | Control system | Position / Draft | |||
| Remote Ports (options) | 4 (rear) | ||||
| Engine | Engine Hp (kW) | 88.8 (66.2) | 98.6 (73.5) | ||
| Rated speed (rpm) | 2200 | ||||
| Traveling system | Transmission Type (options) | Synchro shuttle | |||
| No. of speed | 12F × 12R | ||||
| Forward Speed (Km/h) | 1.8 ~ 36.2 | ||||
