No.1 Agricultural machine manufacturer in Korea

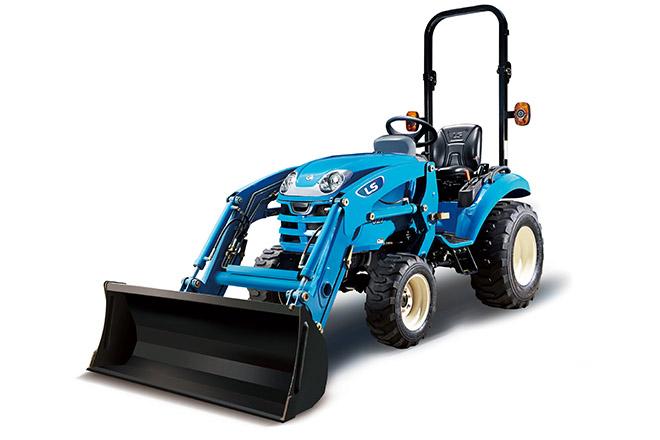

J23, J27
Modern stylish design Stylish & compact design is optimal for small farm or house operation. | Tier 4 interim engine (Mitsubishi) Eco-friendly, fuel efficient engine delivers quiet, reliable performance. Rubber engine mounts reduce operator platform vibration. | Large Fuel Tank 25ℓ capacity provides long operation times. |
Standard MID PTO 2000 RPM Mid PTO for optional height adjustable 60” mid-mount mower that produces a smooth and beautiful cut. | High Velocity High velocity (17.2km/h) among the same classes gives better productivity. ※ Max. speed - Gear type: 17.2km/h - HST type : 15.7km/h | 3-point hitch Category I with a hitch lift capacity of 650kgf allows usage of a wide variety of implements. |
PTO ON/OFF switch Turn the independent rear or mid PTO on or off with the simple and easy turn of a switch. | Easy to operate Conveniently located range and 2WD/4WD levers. | 1 pair of remote control valves Remote valves Offer high compatibility with various implements. |
Ergonomically designed control system Easily accessible for maximum comfort and convenience. | Adjustable seat with retractable seat belt Keeps you in a comfortable and safe position for maximum control. |
Specification
| Category | J23 | J27 | |
| Dimensions & Weight | Overall length, Bumper to link (mm) | 2742 | |
|---|---|---|---|
| Overall width witd tires (mm) | 1140 | ||
| Wheelbase (mm) | 1500 | ||
| Height to top (mm) | 2458 | ||
| Total weight without ballast (kg) | HST: 830 Gear: 875 | ||
| Tires | Front | 6-12 | |
| Rear | 9.5-16 | ||
| PTO | Type | HST: Independent Gear: EHC(Electro Hydraulic Controlled) | |
| Mid (rpm) *options | 2000 | ||
| Rear (rpm) | 540 | ||
| Hydraulic | Control system *options | Position | |
| Implement pump (lpm) | HST: 24.3 Gear: 32.4 | ||
| Category, 3 pt hitch | CAT Ⅰ | ||
| Hitch lift capacity, Link end (kgf) | 650 | ||
| Remote ports *options | 2 (rear) | ||
| Engine | Type | 4-Stroke, Indirect-injection, Water-cooled | |
| Model | MHI S3L | MHI S3L2 | |
| Emission | EPA & CARB Interim Tier4 EC Stage IIIA | EPA & CARB Interim Tier4 EC Stage IIIA | |
| Engine Hp (kW) | 22.7 (16.9) | 26.7 (19.9) | |
| PTO Hp | Gear: 17.0 / HST: 15.9 | Gear: 20.0 / HST: 18.7 | |
| Rated speed (rpm) | 2700 | ||
| Displacement (cc) | 1125 | 1318 | |
| Fuel Tank Capacity (L) | 25 | ||
| Traveling system | Transmission Type | Sliding Shift / HST | |
| No. of speed | F6 × R2 (Gear) / 2 Range (HST) | ||
| Forward Speed (Km/h) | 1.2 ~ 17.2 (Gear) / 0 ~ 15.7 (HST) | ||
