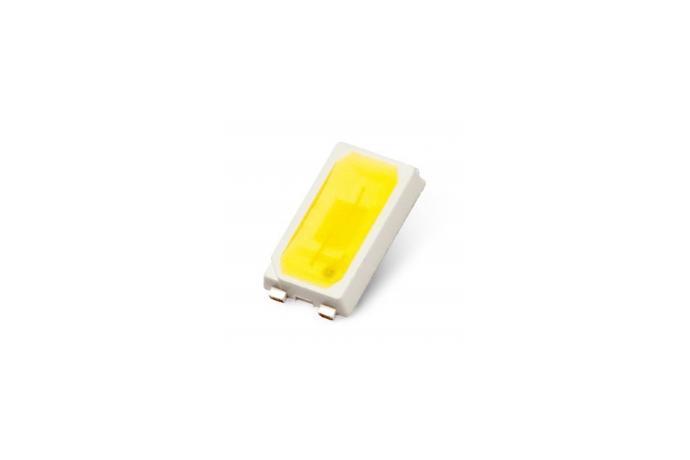

product Image
Lighting LED
Model Name
5630L Series
Series
Lighting LED
Data
Specification Datasheet
Manufacturer information
provider logo
LUMENS

LED light products, Two way radio, Satellite communication, Base station monitoring device solution business

Problem with product info?
Update request
Manufacturer
LUMENS
Brand
-
SKU
45349
Product Name
Lighting LED
Model Name
5630L Series
Size
-
Weight
-
Product Details

5630L

The Best Color Uniformity Emitter



Applications

LUMENS  5630L Series



Specifications

Model Number CRI
[Ra]
Color
Temp [K]
Watts
[W]
Luminous
Flux [lm]
Luminous
Efficacy [lm/W]
Forward
Voltage [VF]
Forward
Current [mA]
Max forward
Current [mA]
LM5630L2W830E00 80 3,000 0.2 30 161 2.86 65 150
LM5630L2W850E00 80 5,000 0.2 32 172 2.86 65 150
LM5630L3W830E00 80 3,000 0.2 32 172 2.86 65 150
LM5630L3W850E00 80 5,000 0.2 34 183 2.86 65 150
LM5630L4W830E00 80 3,000 0.2 34 183 2.86 65 150
LM5630L4W850E00 80 5,000 0.2 36 194 2.86 65 150

LUMENS
LED light products, Two way radio, Satellite communication, Base station monitoring device solution business
LUMENS, THE LEADER OF GLOBAL LED INDUSTRY. Lumens has been rapidly growing globally as a specialized LED company and expediting the development of new concepts & next generation of LED packages with highly efficient lighting products based on the accumulated technology and know-how in the field of LED light source for the mobile and display markets.   LUMENS LED – THE REVOLUTION OF LIGHT Lumens, the leading manufacturer of world-first & based on creative technology innovation, has developed new LED light sources to seize business opportunities while closely watching the market needs and changing trends. Lumen's organization has experts from the field of LED modules, LED lighting, and the development and manufacturing of intelligent control systems. Our product design in lighting installation and maintenance has been leading the LED industry with high quality, superior brightness, and the best color rendering. Our future-oriented design and high-tech application technology are one of our main focuses. Lumens is already known for its excellent performance in domestic as well as global markets, including Japan, Europe, and North America. Special attention has been paid to growing Lumens as a global LED company, whose No.1 priority lies in customer total satisfaction. Beyond the LEDs Lumens has been striving to develop the highest-efficient products while always remaining environmentally friendly. We have been focusing our resources and capabilities on the development of new concepts, eco-friendly and highest-efficient products beyond current technologies and products. Our goal is to cope with continuous rise in energy prices, global warming, and other environmental issues under the slogan of ‘Beyond the LEDs’
