This product is manufactured by
LUMENS
Manufacturer
LUMENS
Brand
-
SKU
45352
Product Name
COB
Model Name
Ergon COB HO Series
Size
-
Weight
-
Product Details

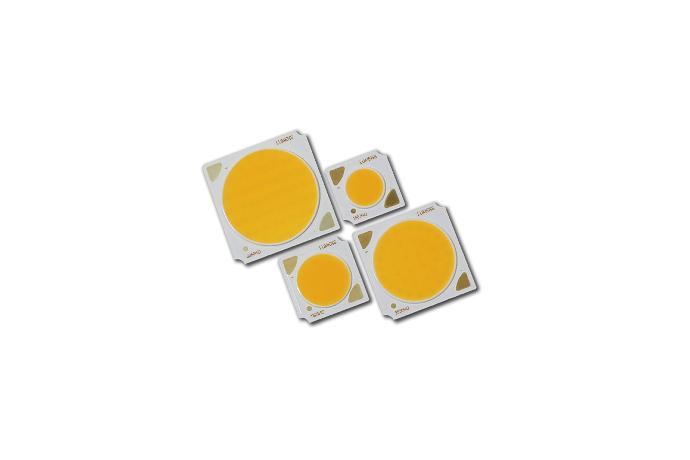

Ergon COB HO Series
Flip-chip COB, the Ultimate Reliability
Features
- World’s 1st Silver-free Flip-chip, Higher Reflectivity
- No wire bonding, Better Robustness
- High efficiency of up to 150 lm/w
- Lower Thermal Resistance, 40% higher LED Lifetime
- Better Current spreading, Lowest Droop
Applications
Specifications
| Model Number | Power(W) | Size (mm) | CRI(Ra) | Color Temp.(K) |
Rth(℃/W) |
Forward Current(mA. Typ / Max) | Lumen Output(lm) | Efficacy(lm/W) |
| ERC1304S830HO | 3.4 |
13.35×13.35×1.7(LES 6.0) |
80+ | 3,000 | 3.6 | 100 / 300 | 462 | 136 |
| ERC1304S850HO | 3.4 |
13.35×13.35×1.7(LES 6.0) |
80+ | 5,000 | 3.6 | 100 / 300 | 499 | 147 |
| ERC1507S830HO | 6.8 |
15.85×15.85×1.7(LES 8.9) |
80+ | 3,000 | 2.0 | 200 / 380 | 945 | 139 |
| ERC1507S850HO | 6.8 |
15.85×15.85×1.7(LES 8.9) |
80+ | 5,000 | 2.0 | 200 / 380 | 1,092 | 161 |
| ERC1512S830HO | 11.5 |
15.85×15.85×1.7(LES 8.9) |
80+ | 3,000 | 2.0 | 330 / 600 | 1,511 | 131 |
| ERC1512S850HO | 11.5 |
15.85×15.85×1.7(LES 8.9) |
80+ | 5,000 | 2.0 | 330 / 600 | 1,625 | 141 |
| ERC1812S830HO | 11.5 |
17.85×17.85×1.7(LES 12.0) |
80+ | 3,000 | 2.0 | 330 / 600 | 1,670 | 145 |
| ERC1812S850HO | 11.5 |
17.85×17.85×1.7(LES 12.0) |
80+ | 5,000 | 2.0 | 330 / 600 | 1,796 | 156 |
| ERC1820S830HO | 20.8 |
17.85×17.85×1.7(LES 12.0) |
80+ | 3,000 | 1.7 | 600 / 1,100 | 2,730 | 131 |
| ERC1820S850HO | 20.8 |
17.85×17.85×1.7(LES 12.0) |
80+ | 5,000 | 1.7 | 600 / 1,100 | 3,140 | 151 |
| ERC2520S830HO | 20.7 |
23.85×23.85×1.7(LES 19.0) |
80+ | 3,000 | 1.0 | 600 / 1,100 | 2,808 | 136 |
| ERC2520S850HO | 20.7 |
23.85×23.85×1.7(LES 19.0) |
80+ | 5,000 | 1.0 | 600 / 1,100 | 3,229 | 156 |
| ERC2530S830HO | 30.0 |
23.85×23.85×1.7(LES 19.0) |
80+ | 3,000 | 0.9 | 850 / 1,600 | 4,048 | 135 |
| ERC2530S850HO | 30.0 |
23.85×23.85×1.7(LES 19.0) |
80+ | 5,000 | 0.9 | 850 / 1,600 | 4,351 | 145 |
| ERC2540S830HO | 40.0 |
23.85×23.85×1.7(LES 19.0) |
80+ | 3,000 | 1.0 | 1,150 / 2,100 | 5,346 | 134 |
| ERC2540S850HO | 40.0 |
23.85×23.85×1.7(LES 19.0) |
80+ | 5,000 | 1.0 | 1,150 / 2,100 | 6,149 | 154 |
| ERC3050S830HO | 48.7 |
27.35×27.35×1.7(LES 23.0) |
80+ | 3,000 | 0.6 | 1,400 / 2,500 | 6,752 | 139 |
| ERC3050S850HO | 48.7 |
27.35×27.35×1.7(LES 23.0) |
80+ | 5,000 | 0.6 | 1,400 / 2,500 | 7,256 | 149 |
| ERC3070S830HO | 70.1 |
27.35×27.35×1.7(LES 23.0) |
80+ | 3,000 | 1.0 | 2,000 / 3,800 | 9,450 | 135 |
| ERC3070S850HO | 70.1 |
27.35×27.35×1.7(LES 23.0) |
80+ | 5,000 | 1.0 | 2,000 / 3,800 | 10,500 | 150 |
