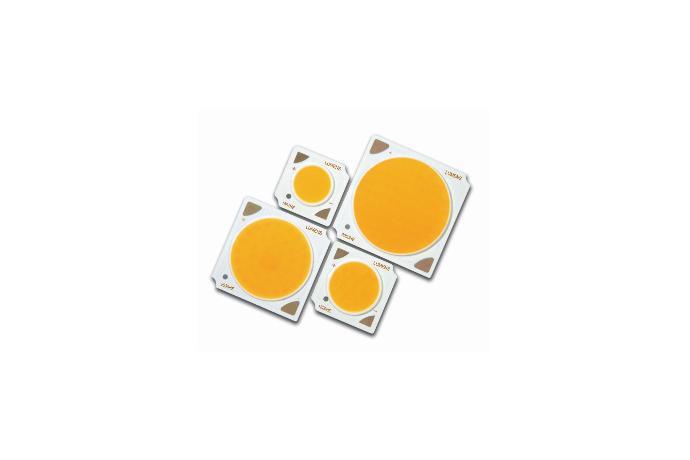

Ergon COB HE Series

Flip-chip COB, the Ultimate Reliability



Features

- World’s 1st Silver-free Flip-chip, Higher Reflectivity

- No wire bonding, Better Robustness

- High Current Density for High lumen output and lm/$

- Lower Thermal Resistance, 40% higher LED Lifetime

- Better Current spreading, Lowest Droop



Applications

LUMENS  Ergon COB HE Series



Specifications​

Model Number Power(W) Size (mm) CRI(Ra) Color Temp.(K)

Rth(℃/W)

Forward Current (mA. Typ / Max) Lumen Output(lm) Efficacy(lm/W)
ERC1507S830HE 7.5

15.85×15.85×2.0(LES 8.9)

80+ 3,000 1.6 200 / 380 850 113
ERC1507S850HE 7.5

15.85×15.85×2.0(LES 8.9)

80+ 5,000 1.6 200 / 380 930 124
ERC1812S830HE 11.8

17.85×17.85×2.0(LES 12.0)

80+ 3,000 0.9 320 / 600 1,400 119
ERC1812S850HE 11.8

17.85×17.85×2.0(LES 12.0)

80+ 5,000 0.9 320 / 600 1,510 128
ERC1820S830HE 20.4

17.85×17.85×2.0(LES 12.0)

80+ 3,000 0.9 550 / 1,100 2,240 110
ERC1820S850HE 20.4

17.85×17.85×2.0(LES 12.0)

80+ 5,000 0.9 550 / 1,100 2,420 119
ERC2530S830HE 29.6

23.85×23.85×2.0(LES 19.0)

80+ 3,000 0.4 800 / 1,600 3,450 117
ERC2530S850HE 29.6

23.85×23.85×2.0(LES 19.0)

80+ 5,000 0.4 800 / 1,600 3,730 126
ERC2540S830HE 40.7

23.85×23.85×2.0(LES 19.0)

80+ 3,000 0.3 1,100 / 2,100 4,700 115
ERC2540S850HE 40.7

23.85×23.85×2.0(LES 19.0)

80+ 5,000 0.3 1,100 / 2,100 5,085 125
ERC3050S830HE 51.8

27.35×27.35×2.0(LES 23.0)

80+ 3,000 0.2 1,400 / 2,500 6,150 119
ERC3050S850HE 51.8

27.35×27.35×2.0(LES 23.0)

80+ 5,000 0.2 1,400 / 2,500 6,650 128
ERC3070S830HE 70.3

27.35×27.35×2.0(LES 23.0)

80+ 3,000 0.2 1,900 / 3,800 8,000 114
ERC3070S850HE 70.3

27.35×27.35×2.0(LES 23.0)

80+ 5,000 0.2 1,900 / 3,800 8,655 123
