product Image
Package
Model Name
3535
Data
-
Manufacturer information
provider logo
LUMENS

LED light products, Two way radio, Satellite communication, Base station monitoring device solution business

Problem with product info?
Update request
Manufacturer
LUMENS
Brand
-
SKU
45360
Product Name
Package
Model Name
3535
Size
-
Weight
-
Product Details

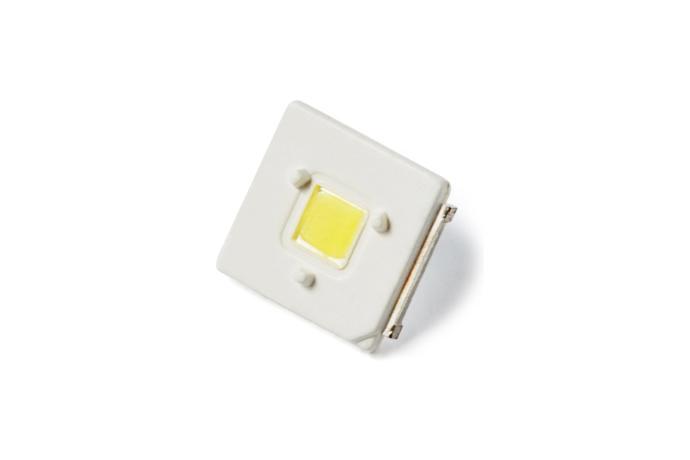

3535



Features

- Size : 3.5 x 3.5 mm

- 1.5W Class high power LED

- High Reliability By Flip Chip and EMC base LED

- High Uniformity and Slim



Applications

Back Light Unit for TV
UHD Curved, UHD, FHD, HD



Specifications

Model Number Size
[mm]
Forward
Current [mA]
Luminous
Intensity [cd]
Luminous
Flux [lm]
Forward
Voltage [VF]
Chip Phosphor
3535 3.5 x 3.5 x 0.8 450 42 110 3.7 Lateral
1 chip
Nitride
3535 3.5 x 3.5 x 0.5 450 33 115 3.15 Flip
1 chip
Nitride
3535 3.5 x 3.5 x 0.53 500 45 153 3.25 Flip
1 chip
Nitride
