TOPRH0700WDFE

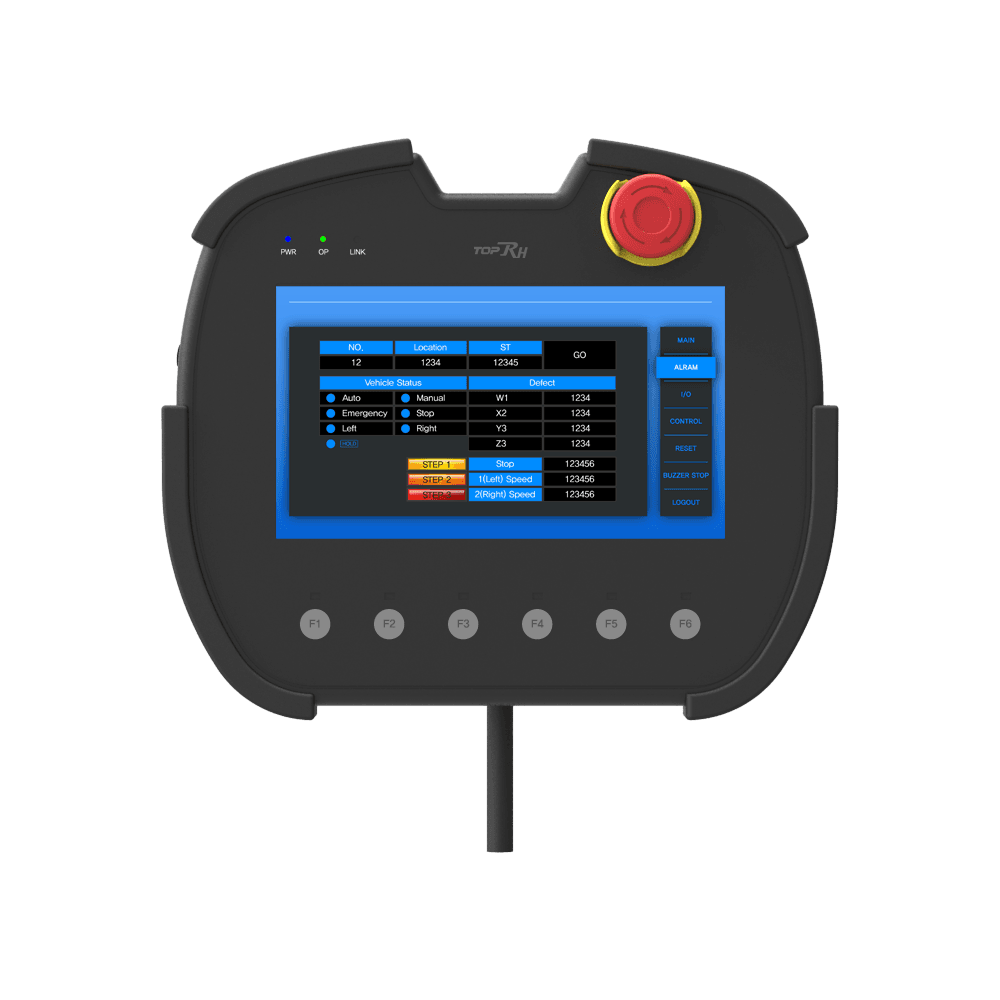

인체공학적으로 설계된 유선 Handy TOP

7" 1024x600 LCD, 16M 컬러 채택으로 넓고 선명한 화면



- Quad-core CPU를 채택한 최상급의 속도 지원

- 세련되고 인체공학적으로 설계된 그립

- 충격 방지 범퍼 장착

- 생활 방수 기능



- 원격 감시 제어 VNC 기능 지원(Mobile/Tablet/Laptop)

- 원격 데이터 교환 FTP 기능 지원

- 오브젝트의 다층 구조(Layer) 지원



- Keylock/Emergency/3Position Switch 옵션화

- Function Key, 터치펜 내장



1. 성능사양

Display

Display Type 7' TFT Color
Color 16M Colors
Display Area(mm) 154.21x85.92
Resolution(dot) 1024x600
Brightness Level 3 Levels(by software)
Backlight Type LED
Backlight Life  50,000 hours

Touch

Touch Type Analog resistive film
Resolution(Cell) 1024x600
Touch Life 1 million times or more
Interface Serial COM1
RS-232C, RS-422/485 Asynchronous
Data bit: 7/8 bits, Stop bit: 1/2 bits, Parity bit: None/Odd/Even
Baud rate: 2400~115.2kbps
Serial COM2 * RS-232C, RS-422/485 Asynchronous
Data bit: 7/8 bits, Stop bit: 1/2 bits, Parity bit: None/Odd/Even
Baud rate: 2400~115.2kbps
Ethernet IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX
USB Host * USB 2.0 Compatible, Output 5Vdc/0.5Aand another OTG host channel available, Output 5V/0.5A
* Support: USB Storage, USB Barcode Scanner(Standard Keyboard Protocol)
* Connector: USB Type A x 2
USB OTG * USB 2.0 Compatible, Output 5Vdc/0.5A, Max 5m
* Support: USB Storage, USB Barcode Scanner(Standard Keyboard Protocol)
* Connector: USB Mini-B x 1
SD Card SD Card Slot x 1, SDHC(MAX 32GB)
Function Key 6Position with LED
Printer Almost USB interface Printers, Roll Printer(EPSON protocol): RS-232C
Machenical Switchs Emergency Switch 1A-2B, Keylock Switch 1A, 3Position enable Switch OFF-ON-OFF(2CH)
Power Switch Push-Push power on-off switch built in
Memory
&Others
Screen Memory 128MB
Backup Memory 512KB: System buffer(10K Word), Including Alarm/Logging/Recipe
Backup Period

Permanent

Real Time Clock Built in
Status LED 3 LEDs(Power, Operation, Link) Built in





2. 일반사양

Power

Consumption 20W or less
Voltage Sag 24Vdc, Within 10㎳
Insulation Resistance 500Vdc, 10㏁

Environment

Operation Temperature(℃) -10 ~ +45
Storage Temperature(℃) -20 ~ +60
Operation Humidity(%RH) 0 ~ 90(No dew)
Atmosphere No corrosive gas
Vibration Endurance Amplitude: 10≤F<25㎐(2G) X,Y,Z each direction(for 30 minutes)
Noise Immunity 1000Vp-p(Pulse width 1㎲)
Static Electricity Discharge Connective discharge from EN61000-4-2: ±4㎸
Shock Endurance 10G X,Y,Z each direction(for 3 times)
Ground Connection Class 3(100Ω under)
Protection Classification IP65
Certification CE, KC, UL
Structure External Dimension(㎜) 237x205x103
Weight(kg) 1.1(Except Cable Pack)
Cooling System Natural air circulation
Case Material PC(Resistance to flame)
