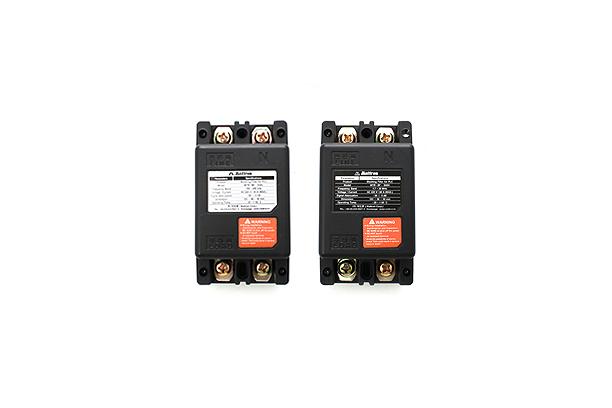

product Image

TOP

BLOCKING FILTER
Model Name
-
Series
Blocking Filter
Data
카탈로그-매트론-블로킹필터
Manufacturer information
provider logo
MATTRONInductive coupler manufacturer, phase coupler, Blocking filter, PLC Modem
Problem with product info?
Update request
Manufacturer
MATTRON
Brand
-
SKU
118285
Product Name
BLOCKING FILTER
Model Name
Size
-
Weight
-
Product Details
* TypeBlocking Filter
* Materials OriginKorea
* Manufacturing OriginKorea
* PackingWooden Packing
* ManufacturerMattron Corp.
* FactoryChangwon-si, Kyungnam, Korea
Blocking Filter For PLC
Parts for the power line communication that blovks transmission of communication signal to other network via power line in case of the network developed by using power line communication and that block infiltration of other network's communication signal and noise



Advantage

MTR-BF-OOO L series
 - Able to apply to low speed (90~450kHz) power line communication
 - Hight attenuation and high impedance of communication frequency bandwidth
 - Applicable regardless of PLC modem thpe
 - Compact size
MTR-BF-OOO H series
 - Applicable to high speed (1.7~30MHz) power line communication
 - Applicable to deverse power systems : 1phase 2wire, 3phase 3wire, 3phase 4wire
 - Applicable regardless of the PLC modem type
 - Easy installation


Other Product





Specification
ModelMTR-BF-H SeriesMTR-BF-L Series
BF-S30HBF-S60HBF-K60HBF-T60HBF-S30LBF-S60L-DBF-S100L-DBF-T100L-A
Applications1 Phase 2 Wire3 Phase
3 Wire
3 Phase
4 Wire
1 Phase 2 Wire3 Phase
4 Wire
Max. Current (A)306060603060100100
Frequency1.7 ~ 30 MHz90 ~ 450 kHz110 ~ 140 kHz
Attenuation (dB)-50 ± 5-40 ± 5- 50 ± 5- 45 ± 5- 45 ± 5- 40 ± 5
Rated Voltage
(VAC)
< 220< 380< 220< 220< 250< 380
Dimension (mm)
L × W × H
105×60×50130×80×75105×60×50115×70×45160×70×45175×118×60
Operating Temp.(℃)- 40 ~ + 80
