1. Description
○ Video Matrix Switcher enables to receive 64 video signals and to distribute
& route 64 video outputs. Additional Input/output Video Extension Shelf helps to
maximize 1024 Input/64 Output.
○ Composition of Input/output Shelf makes maximum 1024x64 extension.
○ Input Shelf consists of Four 16 Channel Input Cards, Four 16 Channel Output
Extension Cards, One CPU Card, and One Power Card.
○ Output Shelf composed of 64 Video Output.
○ Each output video level can be adjustable. There’s Sync Input Port for smooth
switching.
○ Built-in RS-232C(422),Lan Port enables to control by remote as well as keyboard
and control PRG.
○ Built-in Control panel in front of the device enables easy operation without
separated control panel.
○ The front LCD panel enables easy view of inputs and outputs.
○ LED provides view of transmission status with Remote Control and Memory
Back-up Function helps to maintain the last status even if it is turned off.

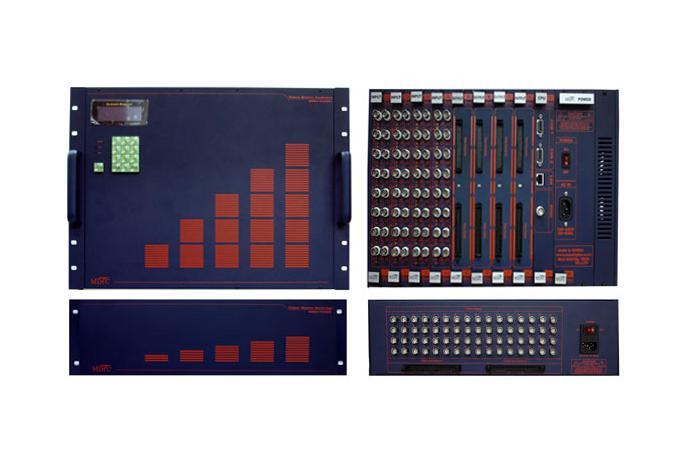

2. Panel Drawing
3. Specification
○ Video Part
- Input/Output number : 64 x 64 (Max 1024 x 64)
- Input/Output type : Composite video 1Vp-p, 75ohm
- Input/Output connector : BNC
- Sync : standards, BNC, 75ohm
- Extension connector : Ribbon cable connector
- S/N Ratio : below 80dB
- Crosstalk : below 67dB
- Frequency response : : ±0.1dB(750KHz ~ 4.7MHz)
- Differential phase : 0.1˚
- Differential gain : 0.1%
- Bandwidth : 60 MHz (-3 dB), fully loaded
○ MMS-V64SERIES
- Input shelf : MMS-V64SERIES
- Exension shelf : MMS-V64EX
- Output shelf : MMS-V64VOM
○ Remote Control Part
- Serial control : 2 RS-232, d-sub 9pin connect
- Ethernet control(Option) : 1 RJ-45 female connector
○ Case 및 Power Part
- Power source : AC 85 ~ 240V 50 ~ 60Hz
- Temperature : 0℃ ~ 40℃
- Power consumption : MMS-V64SERIES below 70W,
MMS-V64EX below 70W, MMS-V64VOM below 30W
- Type : 19” Rack type
- Dimensions : MMS-V64SERIES 483(W) * 267(H) * 260(D)mm
MMS-V64EX 483(W) * 267(H) * 260(D)mm
MMS-V64VOM 483(W) * 133.5(H) * 210(D)mm
