1. Description

○ This is a versatile ID & Time Display Generator by receiving Sixteen video signal.

○ Year, month, date, hour, minute and second are able to be displayed as well
    as Korean, English, and symbols.

○ Outline of the letter/brightness control and letter/time blinking function are
    available.

○ Background Pixels to Gray title appear even if Input Source Function has lost
    on LED.

○ Supports various fonts from Window and it is can be downloaded from
    serial & USB.

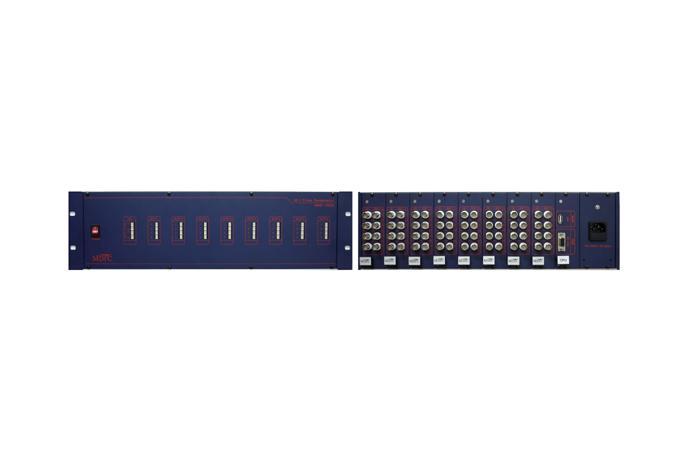

2. Panel Drawing

3. Specification

○ Video Part
  - Video Input : 16 Port
  - Video Output : 16 Port
  - Input/Output Impedance : NTSC Composite Video BNC 1Vp-p 75ohm
  - Bal Level : 100 IRE
  - Sync Level : 40 IRE
  - Differential Phase : 0.5˚
  - Differential Gain : 0.5%

○ Text Part
  - Korea(Max) : 30 (12x18=30,16x16,18x18=20,24x24=15,32x32=10)
  - English(Max) : 30(12x18=30,16x16,18x18=20, 24x24=15,32x32=10)

○ Time Part
  - The Exact Time
  - Year,Month,Date,Hour,Minute,Second Symbols.

○ Case & Power Part
  - Power source : AC 85 – 240V 50 – 60Hz
  - Temperature : 0℃ ~ 40℃
  - Power consumption : Below 30Watt
  - Type : 19" Rack Type
  - Dimensions : 483(W) * 133.5(H) * 300(D) mm
