CD Control Unit
Model Name
MCD-100
Series
Exhibiting System
Data
Equipment Overview & Function
Manufacturer information
provider logo
Max Digital TechDVI, HD-SDI, AV, RGB, Total control, Total control system developer
Problem with product info?
Update request
Manufacturer
Max Digital Tech[Link]
Brand
-
SKU
45146
Product Name
CD Control Unit
Model Name
MCD-100
Size
-
Weight
-
Product Details

1. Description

○ CD Remote Control unit receives maximum 8 Sensor and controls I unit of
    CD player.

○ Repeat function enables to play repeatedly in case of sensor input failure.
    Individual control enables by front key and LCD display is available.

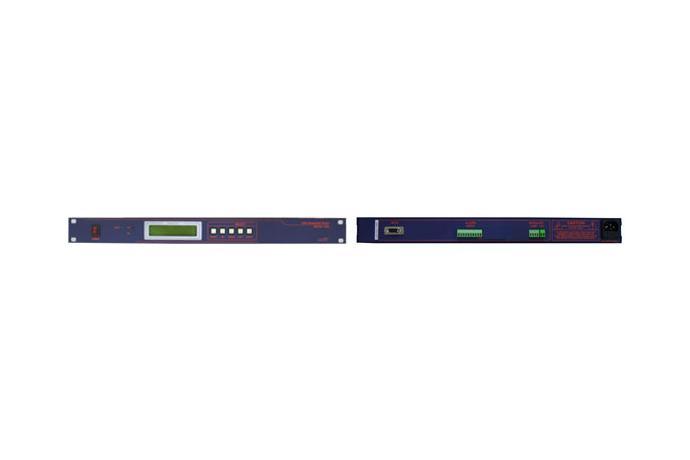

2. Panel Drawing

Max Digital Tech CD Control Unit MCD-100



3. Specification

○ Input Part
  - Sensor Input : 8 Port
  - IR : 1 Port
  - Main Comport : 1 Port (RS-232C)

○ Control Part
  - Main Processor : 8 Bit One Chip Microprocessor
  - Memory : RAM 32K
  - Baud : 9600BPS
  - Supporting Devices : IR Processed CD Player

○ Case & Power Part
  - Power source : AC 85 ~ 240V 50 ~ 60Hz
  - Temperature : 0℃ ~ 40℃
  - Power consumption : Below 10Watt
  - Type : 19” Rack Type
  - Dimensions : 483(W) * 44.5(H) * 300(D) mm
