Dimensions
400(W) x 492(D) x 517(H)mm
<tab title="Features">
20 x 4 blue backlight LCD : display water quality and temp. in one screen
Can indicating error messages and solutions
Equipped sensors of water quality and temp. : real-time display
Safe filter replacement : remove input pressure automatically
Estimate filter life – display run time & remain life (as %)
Replacement warning and screen display : when water quality falls lower than standard
Sound(human voice) warning : replacement time of P.W Pack
Display filter error : filter pack’s wrong position or wrong pack type

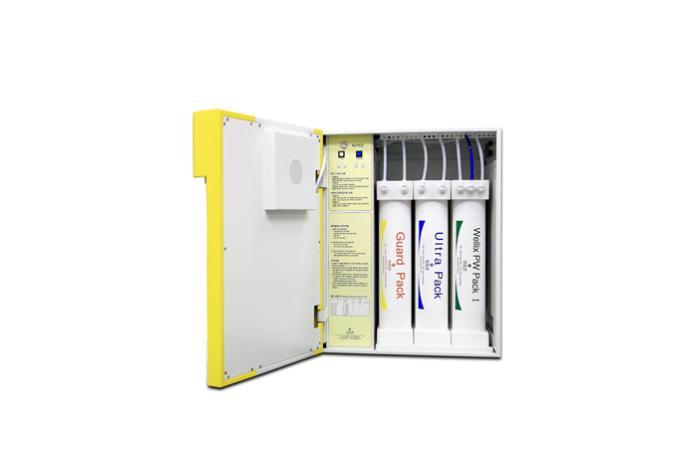

Easy replacement : Guard filter, P.W filter are designed as Pack type (Design registered on Korea Gov.)
Openable front door for easy maintenance
Item# | MDM-0112 | MDM-0113 |
Model | Wellix Pure I | Wellix Pure II |
Flow Rate | Max. 27ℓ/hr (P.W. standard) | Max. 37ℓ/hr (P.W. standard) |
Water quality display | Input Water (I.W) : 0 ~ 600µs/cm Pure Water (P.W) : 0 ~ 200µs/cm Input Temperature (I.T) : 0 ~ 99 °C | |
Display | 20×4 characters backlight LCD digital display | |
Standard Filter | Guard Pack, P.W Pack | |
Functions | System initializing Auto Membrane washing Self protect functions : – Auto stop and restart by input water supply – Auto stop and restart by level sensor – Auto stop and restart function by wrong filter position or pack type Mode key function : – Guard Pack run time display – Wellix P.W Pack run time display – P.W Purity remain(%) – Buzzer offCheck key function : Warning when filter purity falls lower than standard Filter replacement function ‘Filter replace’ indications Auto drain control without special pressure controller | |
Input water conditions | Input pressure 1~3kgf/cm2, Input temperature 4 ~ 35 °C | |
Dimensions | 400(W)x 492(D)x 517(H)mm | |
Power | 230Vac, 50/60 Hz , 60W |
