Banknotes Sorter
Model Name
Clear J
Series
Banking Equipment
Data
-
Manufacturer information
provider logo
MECHATROBanking automation machine manufacturer, Bill counter, Bill validator, Check scanners, Industrial printing machine and more
Problem with product info?
Update request
Manufacturer
MECHATRO
Brand
-
SKU
4552
Product Name
Banknotes Sorter
Model Name
Clear J
Size
-
Weight
-
Product Details

Counting Speed  1500 notes/min
Discrimination  Full image recognition
Counterfeit Detection  Image 2 CIS, IR full width, UV Dual, MG x 3, US full width array
Size  315 x 345 x 437 mm
Weight  20kg

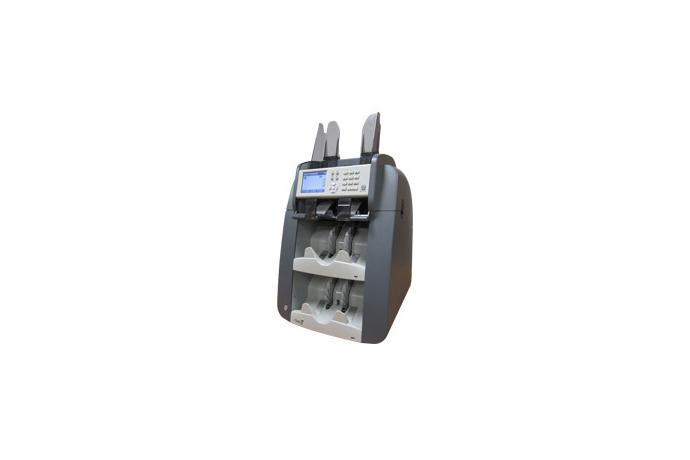

Desk top sorter with extra full size stacker
· Proven performance, fitness sorting as well as authentication
· Reduce processing time
· Enlarge usage coverage



Specification

 Pocket

 2 stackers & 1 reject

 Capacity

 Hopper 700 notes

 Stacker 200 notes x 2

 Reject 100 notes

 Detection

 Image 2 CIS (1 reflective+1 transmit)

 IR  full width

 UV  Dual (reflective + transmit)

 MG x 3

 US full width array

 Speed

 Counting 1500 notes/min

 Sorting      800 notes/min

 Interface

 2xRS232C, USB, LAN, Video I/O

 Dimension

 315(W)ⅹ345(D)ⅹ437(H)mm

MECHATROBanking automation machine manufacturer, Bill counter, Bill validator, Check scanners, Industrial printing machine and more
MECHATRO is one of leading companies in the field of banking automation and self-service solution, manufacturing banknotes discriminators, check scanners and industrial printers. We create and offer unique value to our customers on the foundation of cutting-edge technologies on hand through a global networking with leading companies in the world. MECHATRO is developing and producing various products like Banknotes counter, Clear Q Banknotes counter, Clear J banknotes fitness sorter, thermal printers, Dot  matrix journal printers, Bill validators and Check scanners with the converged techn-ology of hardware, instrument, software and solution. These all products are acknowledged as top quality in the world. MECHATRO’s biggest goal is to create customer values and MECHATRO promises that we will be the global leading company through development of new products, fast global marketing plan and active service with continuous improvement.
