ND:YAG Harmonic Separators
Model Name
-
Series
Beamsplitters / Partial Reflectors
Data
-
Manufacturer information
provider logo
Millenium Optical System

Optical equipment components manufacturer, Lens, Prism, Polarizing plate, Mirror, ZnSe, IR filter, Thin film coating

Problem with product info?
Update request
Manufacturer
Millenium Optical System
Brand
-
SKU
43500
Product Name
ND:YAG Harmonic Separators
Model Name
-
Size
-
Weight
-
Product Details

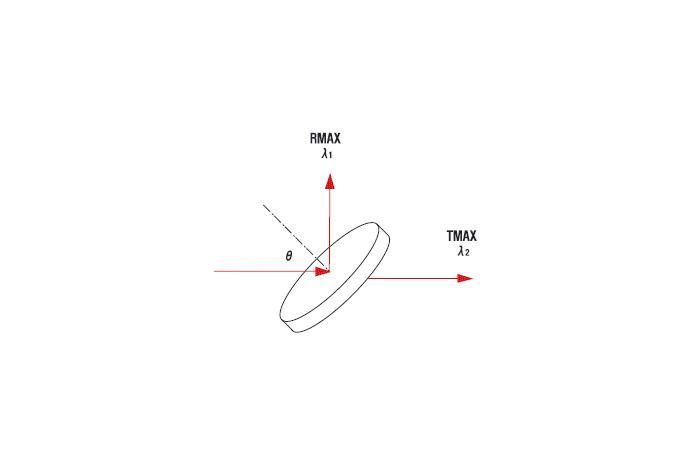

Harmonic Separators are designed to efficiently separate Nd:YAG harmonics. The substrate iscoated on one side with an RMAX/TMAX coating that is optimized for maximum reflection of one harmonic frequency and maximum transmission of another. The reverse side is coated with a highefficiency, narrowband, anti-reflection coating.



Millenium Optical System ND:YAG Harmonic Separators



TO ORDER : Specify part numbers as follows: Substrate Code + Coating Code
Example: 25.4mm diameter; RMAX at 1064nm; TMAX at 532nm; 45。; unpolarized: RT 2607 U 106 053 4 U


Other substrate materials, specifications, wavelengths and angles of incidence can be provided upon
request. Please contact our sales department for assistance.
