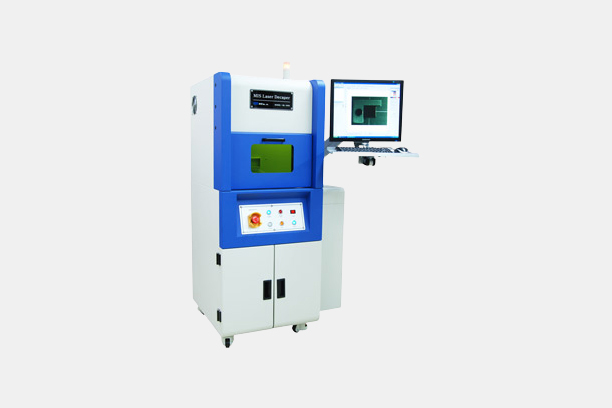

Laser Decaper
Model Name
ML-2000
Series
Semiconductor Equipment
Data
-
Manufacturer information
provider logo
MISSemi conductor manufacturing equipment manufacturer, Auto Decaper, Track System, Vacuum Valve and more
Problem with product info?
Update request
Manufacturer
MIS
Brand
-
SKU
43676
Product Name
Laser Decaper
Model Name
ML-2000
Size
-
Weight
-
Product Details

Function & Features


- Automatic laser decapsulation system
- All types of semiconductor package can be removed
- Any material(Au, Cu, Al) of wire part and 2nd bonding area   can be opened
- Effective decapsulation solution for Cu wire chip : Minimize   the damage on Cu wire by chemical etching after laser   operation
- A few hundred microns of EMC on die surface can be   opened with chemical etching(by manual or MIS Wet Etch :   Minimal acid use)
- Easy, simple, fast and safe operation
      > Vision camera provides real time image
      > User can set the decap area by mouse drag / numerical value input
      > User can see laser decapsulation process & result on monitor screen
      > Superimposing X-ray image on real-time sample picture is available
      > Auto door lock : System door is not opened during laser operation
      > Automatic Z axis adjustment by PC program
- User can observe the operation process through the window(protected from laser radiation)
- Repetitions made simple using recipe files
- Fume & Dust can be exhausted (Option: Fume & Dust collector)



Specification

Item Description
Laser ND YVO4 1064nm
Guide Laser 632nm Laser Class 2 (Red Beam)
Dimension 840(W) x 705(D) x 1500(H) mm
Weight Approx. 150 kg
Handling IC Size 2x2 mm ~ 100x100 mm
Vision Camera Color
Utility Roted Voltage : AC 220V, 1 Phase
Roted Current : 15A, Roted Frequency : 50 ~ 60 Hz
Program User Interface : Window Based Graphical User Interface
X-ray image data import available (Superimposition)
Option Fume & Dust Collector
