product Image
Model Name
MJ600(Multiports)
Series
Rotary Joint
Data
-
Manufacturer information
provider logo
MULTISHYDRO

Mechanical seal manufacturer, Rotary joint, Swivel joint, Safe lock, Loading arm and more

Problem with product info?
Update request
Manufacturer
MULTISHYDRO
Brand
-
SKU
59013
Product Name
-
Model Name
MJ600(Multiports)
Size
-
Weight
-
Product Details

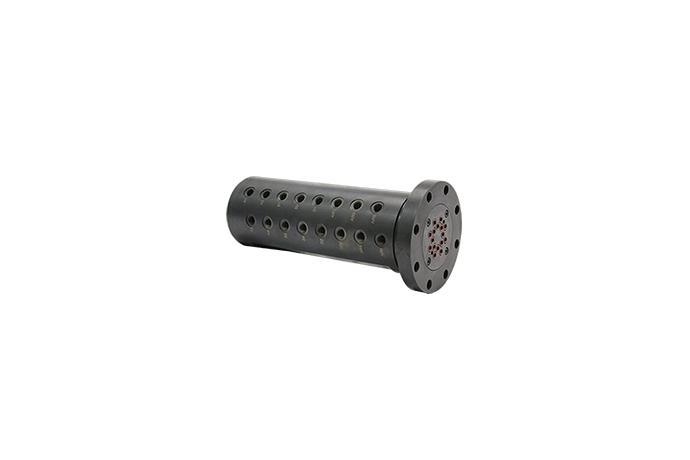

MULTIS HYDRO MJ600 Series is specially designed to be used for equipment operating in multi-level circuits such as turn table, hydraulics, pneumatics, cutting fluid and so on. Custom-made MJ600 series is different in inner structure and parts according to the fluid and pressure being used. In general, standard products we produce are separated into 200 kgf/m2 and 350 kgf/cm² depending on the pressure, but 1,000 kg/cm² is also available in a special case. Please contact our engineer for further questions if you want more specific details.


Standard Size -
Fluid Air, Hydraulic
Max. Pressure Air: 10 kgf/cm²
Hydraulic: 200 kgf/cm²
Max. Temperature 120 °C
Max. Rotating Speed 250 RPM
MULTISHYDRO
Mechanical seal manufacturer, Rotary joint, Swivel joint, Safe lock, Loading arm and more
Multis Hydro has been desingning and producing Rotating Sealing products since its beginning in 1980. Our products cover all sorts of Rotary Joints required in industry whole for hydraulic pressure, air pressure, cooling water, high temperature, high speed and etc. With unique design, we produce and supply accurate products to wide working condition with temperature, pressure, speed of revolution and the characteristics of fluid. And the size is from 1/8" to 20" We recommend our good products that have accurate design and high performance based on rich experience.
