product Image
Model Name
MJ730
Series
Rotary Joint
Data
MULTIS HYDRO MJ730 Series
Manufacturer information
provider logo
MULTISHYDRO

Mechanical seal manufacturer, Rotary joint, Swivel joint, Safe lock, Loading arm and more

Problem with product info?
Update request
Manufacturer
MULTISHYDRO
Brand
-
SKU
59021
Product Name
-
Model Name
MJ730
Size
-
Weight
-
Product Details

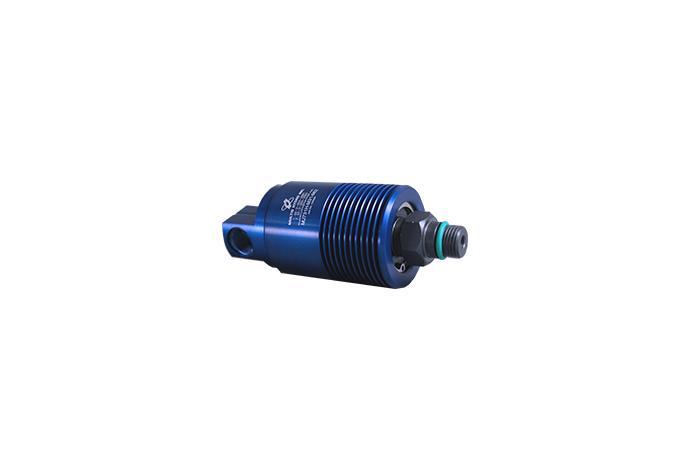

MULTIS HYDRO MJ730 Series are specially engineered in order to solve the “idling” problem which can be found in machinery such as machining center with high speed revolution and air supply. In the general products, the high speed idling was a very serious problem, however Multis Hydro solved this problem by using this matter, developing 'cracking Type' which the seal faces are separated by centrifugal force. This “cracking type” with mechanical structure is our patented item. It is much more wear-resistant than rubber diaphragm type, as there is no transformation under the high pressure. By adapting the double drain system, this can efficiently protect the bearing. The standard Seal materials are composed of high quality of ‘Silicone Carbide‘ vs ‘Silicone Carbide‘.



Standard Size -
Fluid Coolant etc.
Max. Pressure MJ730H 1/4” Port : 105 kgf/cm²
MJ730H 3/8” Port : 70 kgf/cm²
MJ730C 3/8” Port : 70 kgf/cm²
Max. Temperature 120 °C
Max. Rotating Speed MJ730H 1/4” Port : 20,000 RPM
MJ730H 3/8” Port : 15,000 RPM
MJ730C 3/8” Port : 10,000 RPM
MULTISHYDRO
Mechanical seal manufacturer, Rotary joint, Swivel joint, Safe lock, Loading arm and more
Multis Hydro has been desingning and producing Rotating Sealing products since its beginning in 1980. Our products cover all sorts of Rotary Joints required in industry whole for hydraulic pressure, air pressure, cooling water, high temperature, high speed and etc. With unique design, we produce and supply accurate products to wide working condition with temperature, pressure, speed of revolution and the characteristics of fluid. And the size is from 1/8" to 20" We recommend our good products that have accurate design and high performance based on rich experience.
