Model Name
MJMM
Series
Rotary Joint
Data
MULTIS HTDRO MJM SERIES
Manufacturer information
provider logo
MULTISHYDROMechanical seal manufacturer, Rotary joint, Swivel joint, Safe lock, Loading arm and more
Problem with product info?
Update request
Manufacturer
MULTISHYDRO
Brand
-
SKU
59031
Product Name
Model Name
MJMM
Size
-
Weight
-
Product Details

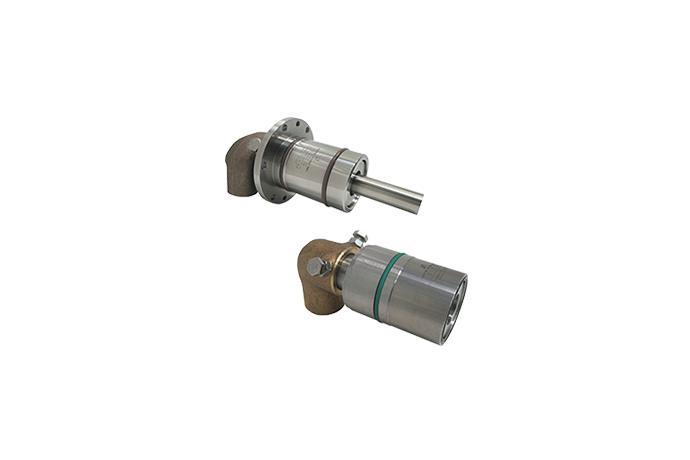

MULTIS HYDRO MJM Series is particularly designed as continuous-casting purpose for steel rollers especially under high temperature and harsh environment. The body part is made of stainless steel for the high temperature and durability, and designed to reduce the rotary torque of the rotary joints by the pressure falling through the labyrinth structure. Double-structured seal guarantees the longevity by the lubricant and Bush-Bearing, which is specially made of non-lubricant material, and also guarantees the longevity even under the heavy weight and vibration. MJM Series, which has been recognized in an efficiency-test that its longevity is over two times longer than that of a famous foreign product, promises you cost reduction. This product is patent held item by our company.



Standard Size -
Fluid Industrial Water
Max. Pressure 30 kgf/cm²
Max. Temperature 120 °C
Max. Rotating Speed 100 RPM
MULTISHYDROMechanical seal manufacturer, Rotary joint, Swivel joint, Safe lock, Loading arm and more
Multis Hydro has been desingning and producing Rotating Sealing products since its beginning in 1980. Our products cover all sorts of Rotary Joints required in industry whole for hydraulic pressure, air pressure, cooling water, high temperature, high speed and etc. With unique design, we produce and supply accurate products to wide working condition with temperature, pressure, speed of revolution and the characteristics of fluid. And the size is from 1/8" to 20" We recommend our good products that have accurate design and high performance based on rich experience.
