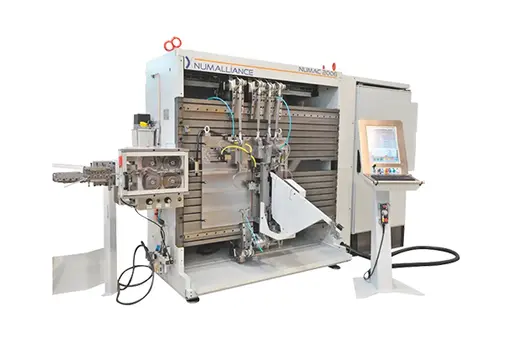

CNC Automatic Wire Bending Machine Numac Numaflex
Model Name
NUMAC 2006
Series
Wire and Flatstock Bending Machines
Data
Catalog-Numalliance-CNC Automatic Wire Bending Machine Numac Numaflex
Manufacturer information
provider logo
NUMALLIANCE

Providers of Turnkey Productivity Solutions for Cold Forming Metal Wire, Tube, and Flat-stock

Problem with product info?
Update request
Manufacturer
NUMALLIANCE
Brand
-
SKU
137076
Product Name
CNC Automatic Wire Bending Machine Numac Numaflex
Model Name
NUMAC 2006, NUMAC 2008, NUMAC 2010, NUMAC 3006, NUMAC 3008, NUMAC 3010
Size
-
Weight
-
Product Details

Range : CNC multi-slide machines
Technical Presentation of the automatic wire bending machine Numac Numaflex
A single machine that combines the agility of a double head bender with the speed and precision of a CNC multi-slide machine

Main features
  • From 0.08 to 0.39″
  • Wire, Tube, Strip
  • 2D or 3D bending from precut lengths or coil
  • Multiple feed possible
  • Top production speed thanks to full tooling or partial tooling solutions
  • Suitable for medium to large size production runs
  • Quick production changeover (no cams + tooling preset on plates)
  • Easy integration of secondary processes (large bed table)
  • Numac : a full tooling solution provides top speed, top precision and top bending possibilities (i.e. not having the limitations of sequential bending like bend-in-bend, compound bend …)
  • Numaflex : a single or double head bender is integrated in the Numac for reducing tool cost and adding flexibility. Possible configurations vary from full sequential bending to a mix tooling + sequential bending
Man / Machine Interface
  • Industrial-Grade PC powered by proprietary software
  • Multilingual dialog and programming interface on a 19″ touch screen
  • Simulation program
  • Additional I/O
  • Internet connection : remote assistance and chat room
  • Auto-corrective feedback from 3D-measuring devices
  • Tool editor allows programming of complex parts
  • Simulation tool to facilitate part set-up
  • Program execution in slow motion
  NUMAC 2006 NUMAC 2008 NUMAC 2010 NUMAC 3006 NUMAC 3008 NUMAC 3010
Wire and tube capacity up to 600 N/mm² 0.08 to 0.24" 0.12 to 0.31" 0.12 to 0.39" 0.12 to 0.24" 0.12 to 0.31" 0.12 to 0.39"


Example of parts made with the automatic wire bending machine Numac Numaflex
