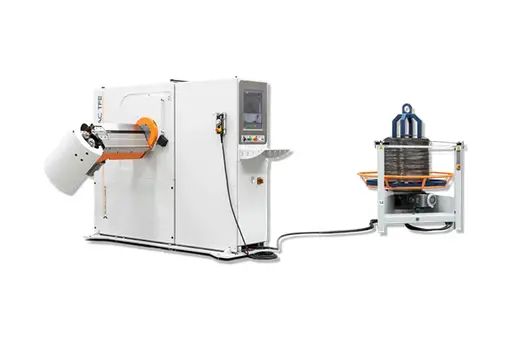

product Image
Robomac TFE
Model Name
R213TF G4
Series
Wire and Flatstock Bending Machines
Data
Catalog-Numalliance-Robomac TFE
Manufacturer information
provider logo
NUMALLIANCE

Providers of Turnkey Productivity Solutions for Cold Forming Metal Wire, Tube, and Flat-stock

Problem with product info?
Update request
Manufacturer
NUMALLIANCE
Brand
-
SKU
142893
Product Name
Robomac TFE
Model Name
R213TF G4, R214TF G8, R216TF G8
Size
-
Weight
-
Product Details

Range : Sequential machines
Technical Presentation of the Robomac TFE
100% electric, high precision, reduced cycle time

Main features
  • Compact, modular, sturdy, cost-efficient
  • 3D bending from coil
  • Full electric bending arm
  • 2 heads machine
  • Bending head moving freely around the material
  • Simple and easy to configure tooling
  • Integrated safety gate system
Man / Machine Interface
  • Industrial PC based software
  • Multilingual dialog and programming interface on a 19″ touch screen
  • Simulation program
  • Additionnal I/O
  • Internet connection : remote assistance and chat room
  • Auto-corrective feedback from 3D-measuring devices
  R213TF G4 R214TF G8 R216TF G8
Wire capability at 600 N/mm² at 85 KSI 4 to 13mm
.16 to .50"
4 to 14mm
.16 to .55"
5 to 16mm
.20 to .625"

Example of parts made with the Robomac TFE

More products
NUMALLIANCE
Providers of Turnkey Productivity Solutions for Cold Forming Metal Wire, Tube, and Flat-stock
Founded in 1986, NUMALLIANCE Group is one of the leading providers of turnkey productivity solutions for cold-forming metal wire, tube, and flat-stock. The company has developed its know-how far beyond bending. Numalliance solutions can also integrate secondary operations such as notching, cutting, punching, chamfering, welding, threading, embossing, robotization, thermal stabilization, 3D control, and auto-correction of resulting programs. All of Numalliance’s automated production machines and cells are designed and manufactured in France (6), and in North America: USA (Lebanon, Ohio) and Mexico (Querétaro). Our solutions are sold around the world, banking on its 11 subsidiaries and technical sales offices (USA, Mexico, China, India, Russia, Slovakia, Germany, Brazil, Romania) and its network of 40 agents. Therefore they meet the expectations of all types of sectors: automotive, aeronautics, agriculture, construction, sanitary, furniture, medical, shop equipment, and more! The company Numalliance accompanies its customers all around the world and offers them a reactive and attentive service. Numalliance’s innovative solutions are recognized worldwide for their quality, accuracy, productivity and flexibility. Bring a whole new dimension to your production and make your factory a showcase for Industry 4.0! At Numalliance, our Research and development team is constantly developing ever more efficient tools. Thanks to the integration of our digital solutions and equipment such as robots or AGVs, we will bring speed and precision to the production of your parts. Always to improve your productivity, while guaranteeing ease of use, Numalliance will be able to assist you in making your factory a showcase for Industry 4.0, at the cutting edge of the latest technologies.
