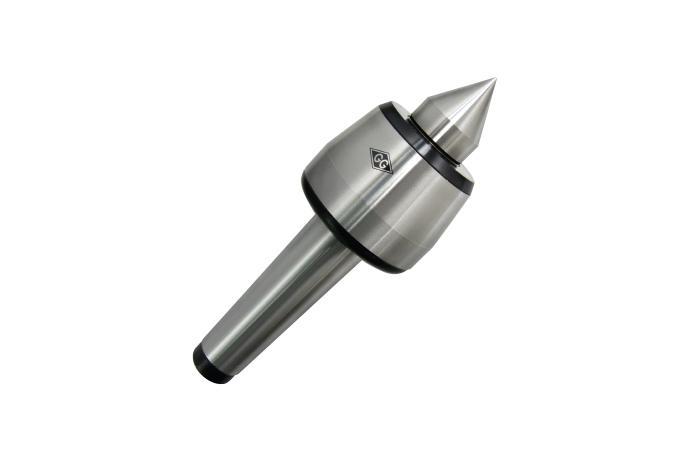

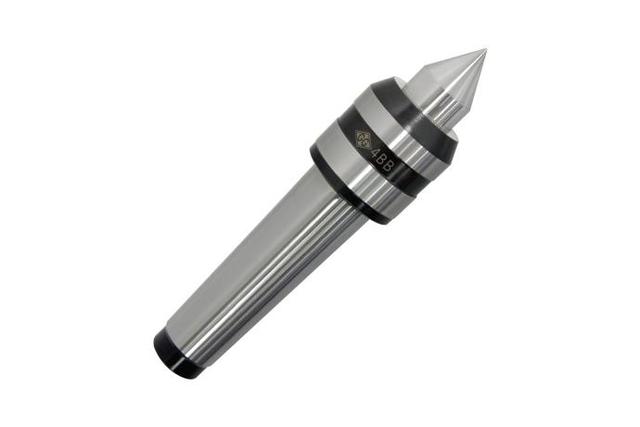

CNC High Speed Live Centers
Model Name
-
Series
Precision Turning Center / Live Center
Data
6-BN
Manufacturer information
provider logo
POINTTECH

Precision turning center and Live center manufacturer, Pace drive, Waterproof bearing center and more

Problem with product info?
Update request
Manufacturer
POINTTECH
Brand
-
SKU
29539
Product Name
CNC High Speed Live Centers
Model Name
-
Size
-
Weight
-
Product Details


POINTTECH CNC High Speed Live Centers

011002(2BN) / 011003(3BN)
011004(4BN) / 011005(5BN)
011006(6BN)

- Accuracy guaranteed to 0.003mm TIR (0.0001”).
- Excellent for engine lathes and CNC lathes.
- Heat-treated point to HRc 60±2.
- High performance lip seal and deflected shaft design protects bearing space(Double Angular Contact bearing) from invasion by dust and coolant
- Heat-treated body for extra strength, rigidity and long life.

POINTTECH CNC High Speed Live Centers  1

POINTTECH CNC High Speed Live Centers  2


POINTTECH CNC High Speed Live Centers  3

012002(2BNC) / 012003(3BNC)
012004(4BNC) / 012005(5BNC)
012006(6BNC)

- Accuracy guaranteed to 0.003mm TIR (0.0001”).
- Excellent for engine lathes and CNC lathes.
- Heat-treated point to HRc 90±5.
- High performance lip seal and deflected shaft design protects bearing space(Double Angular Contact bearing) from invasion by dust and coolant.
- Heat-treated body for extra strength, rigidity and long life

POINTTECH CNC High Speed Live Centers  4

POINTTECH CNC High Speed Live Centers  5


POINTTECH CNC High Speed Live Centers  6

013002(2BNL30) / 013003(3BNL30)
013004(4BNL30) / 013005(5BNL30)
013006(6BNL30)

- Accuracy guaranteed to 0.003mm TIR (0.0001”).
- Excellent for engine lathes and CNC lathes.
- Heat-treated point to HRc 60±2.
- High performance lip seal and deflected shaft design protects bearing space(Double Angular Contact bearing) from invasion by dust and coolant.
- Heat-treated body for extra strength, rigidity and long life.

POINTTECH CNC High Speed Live Centers  7

POINTTECH CNC High Speed Live Centers  8


POINTTECH CNC High Speed Live Centers  9

014002(2BNL30C) / 014003(3BNL30C)
014004(4BNL30C) / 014005(5BNL30C)
014006(6BNL30C)

- Accuracy guaranteed to 0.003mm TIR (0.0001”).
- Excellent for engine lathes and CNC lathes.
- Heat-treated point to HRc 60±2.
- High performance lip seal and deflected shaft design protects bearing space(Double Angular Contact bearing) from invasion by dust and coolant.
- Heat-treated body for extra strength, rigidity and long life.

POINTTECH CNC High Speed Live Centers  10  POINTTECH CNC High Speed Live Centers  11

POINTTECH CNC High Speed Live Centers  12


POINTTECH CNC High Speed Live Centers  13

015002(2BNL30A) / 015003(3BNL30A)
015004(4BNL30A) / 015005(5BNL30A)
015006(6BNL30A)

- Accuracy guaranteed to 0.003mm TIR (0.0001”).
- Excellent for engine lathes and CNC lathes.
- Heat-treated point to HRc 60±2.
- High performance lip seal and deflected shaft design protects bearing space(Double Angular Contact bearing) from invasion by dust and coolant.
- Heat-treated body for extra strength, rigidity and long life.

POINTTECH CNC High Speed Live Centers  14

POINTTECH CNC High Speed Live Centers  15


POINTTECH CNC High Speed Live Centers  16

016002(2BNL30AC) / 016003(3BNL30AC)
016004(4BNL30AC) / 016005(5BNL30AC)
016006(6BNL30AC)

- Accuracy guaranteed to 0.003mm TIR (0.0001”).
- Excellent for engine lathes and CNC lathes.
- Heat-treated point to HRc 60±2.
- High performance lip seal and deflected shaft design protects bearing space(Double Angular Contact bearing) from invasion by dust and coolant.
- Heat-treated body for extra strength, rigidity and long life.

POINTTECH CNC High Speed Live Centers  17  POINTTECH CNC High Speed Live Centers  18

POINTTECH CNC High Speed Live Centers  19
