High Speed Live Centers
Model Name
-
Series
Precision Turning Center / Live Center
Data
12-BNH.compressed
Manufacturer information
provider logo
POINTTECH

Precision turning center and Live center manufacturer, Pace drive, Waterproof bearing center and more

Problem with product info?
Update request
Manufacturer
POINTTECH
Brand
-
SKU
29547
Product Name
High Speed Live Centers
Model Name
-
Size
-
Weight
-
Product Details

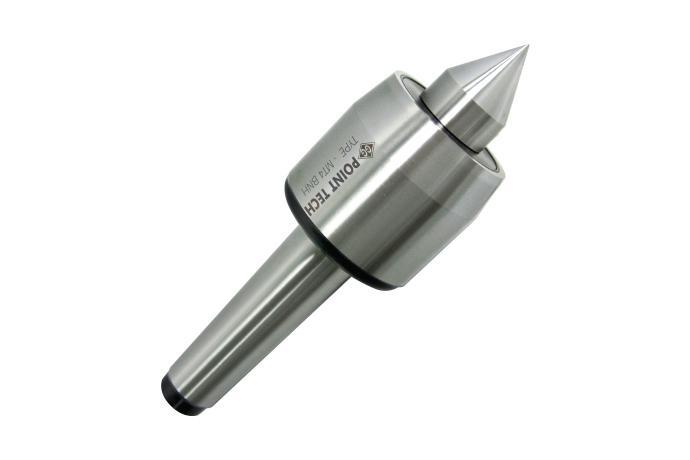

POINTTECH High Speed Live Centers

031003(3BNH) / 031004(4BNH)
031053(5BNH)

Accuracy guaranteed to 0.002mm TIR(0.0001”).
Excellent for grinders and CNC lathes.
Heat-treated point to HRc 60±2.
Two angular contact bearings for superior performance.
Anti-friction seal for coolant deflectors and high speed.
High RPM, up to 6,000.
Heat-treated body for extra strength, rigidity and long life.

POINTTECH High Speed Live Centers  1

POINTTECH High Speed Live Centers  2


POINTTECH High Speed Live Centers  3

032003(3BNHC) / 032004(4BNHC)
032005(5BNHC)

- Accuracy guaranteed to 0.002mm TIR(0.0001”).
- Excellent for grinders and CNC lathes.
- Heat-treated point to HRc 90±5.
- Two angular contact bearings for superior performance.
- Anti-friction seal for coolant deflectors and high speed.
- High RPM, up to 6,000.
- Heat-treated body for extra strength, rigidity and long life.

POINTTECH High Speed Live Centers  4

POINTTECH High Speed Live Centers  5


POINTTECH High Speed Live Centers  6

033003(3BNHL30) / 033003(4BNHL30)
033003(5BNHL30)

Accuracy guaranteed to 0.002mm TIR(0.0001”).
Excellent for grinders and CNC lathes.
Heat-treated point to HRc 60±2.
Three angular contact bearings for superior performance.
Anti-friction seal for coolant deflectors and high speed.
High RPM, up to 6,000.
Heat-treated body for extra strength, rigidity and long life.

POINTTECH High Speed Live Centers  7

POINTTECH High Speed Live Centers  8


POINTTECH High Speed Live Centers  9

034003(3BNHL30C) / 034004(4BNHL30C)
034005(5BNHL30C)

- Accuracy guaranteed to 0.002mm TIR(0.0001”).
- Excellent for grinders and CNC lathes.
- Heat-treated point to HRc 60±2.
- Three angular contact bearings for superior performance.
- Anti-friction seal for coolant deflectors and high speed.
- High RPM, up to 6,000.
- Heat-treated body for extra strength, rigidity and long life.

POINTTECH High Speed Live Centers  10  POINTTECH High Speed Live Centers  11

POINTTECH High Speed Live Centers  12


POINTTECH High Speed Live Centers  13

035003(3BNHL30A) / 035004(4BNHL30A)
035005(5BNHL30A)

- Accuracy guaranteed to 0.002mm TIR(0.0001”).
- Excellent for grinders and CNC lathes.
- Heat-treated point to HRc 60±2.
- Three angular contact bearings for superior performance.
- Anti-friction seal for coolant deflectors and high speed.
- High RPM, up to 6,000.
- Heat-treated body for extra strength, rigidity and long life.

POINTTECH High Speed Live Centers  14

POINTTECH High Speed Live Centers  15


POINTTECH High Speed Live Centers  16

036003(3BNHL30AC) / 036004(4BNHL30AC)
036005(5BNHL30AC)

- Accuracy guaranteed to 0.002mm TIR(0.0001”).
- Excellent for grinders and CNC lathes.
- Heat-treated point to HRc 60±2.
- Three angular contact bearings for superior performance.
- Anti-friction seal for coolant deflectors and high speed.
- High RPM, up to 6,000.
- Heat-treated body for extra strength, rigidity and long life.

POINTTECH High Speed Live Centers  17  POINTTECH High Speed Live Centers  18

POINTTECH High Speed Live Centers  19
