Super High Speed Live Centers
Model Name
-
Series
Precision Turning Center / Live Center
Data
20-BHS.compressed
Manufacturer information
provider logo
POINTTECH

Precision turning center and Live center manufacturer, Pace drive, Waterproof bearing center and more

Problem with product info?
Update request
Manufacturer
POINTTECH
Brand
-
SKU
29553
Product Name
Super High Speed Live Centers
Model Name
-
Size
-
Weight
-
Product Details

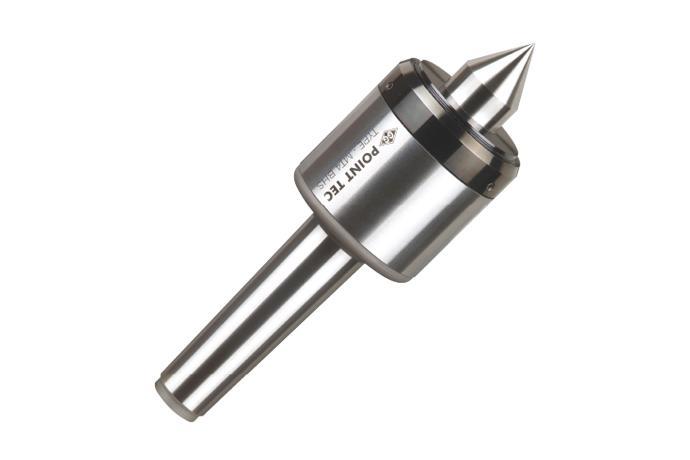

POINTTECH Super High Speed Live Centers

041002(2BHS) / 041003(3BHS)
041004(4BHS) / 041005(5BHS)

- Accuracy guaranteed to 0.002mm TIR(0.0001”).
- Excellent for grinders and CNC lathes.
- Heat-treated point to HRc 60±2
- Three angular contact bearings for superior performance
- Anti-friction seal for coolant deflectors and high speed
- High RPM, up to 12,000
- Heat-treated body for extra strength, rigidity and long life.
- Drain hole have to be located on buttom side.

POINTTECH Super High Speed Live Centers  1

POINTTECH Super High Speed Live Centers  2


POINTTECH Super High Speed Live Centers  3

042002(2BHSC) / 042003(3BHSC)
042004(4BHSC) / 042005(5BHSC)

- Accuracy guaranteed to 0.002mm TIR(0.0001”).
- Excellent for grinders and CNC lathes
- Heat-treated point to HRc 90±5.
- Three angular contact bearings for superior performance
- Anti-friction seal for coolant deflectors and high speed
- High RPM, up to 12,000
- Heat-treated body for extra strength, rigidity and long life.
- Drain hole have to be located on buttom side.

POINTTECH Super High Speed Live Centers  4

POINTTECH Super High Speed Live Centers  5


POINTTECH Super High Speed Live Centers  6

043002(2BHSL30) / 043003(3BHSL30)
043004(4BHSL30) / 043005(5BHSL30)

- Accuracy guaranteed to 0.002mm TIR(0.0001”).
- Excellent for grinders and CNC lathes.
- Heat-treated point to HRc 60±2.
- Three angular contact bearings for superior performance.
- Anti-friction seal for coolant deflections and high speed.
- High RPM, up to 12,000.
- Heat-treated body for extra strength, rigidity and long life.
- Drain hole have to be located on buttom side.

POINTTECH Super High Speed Live Centers  7

POINTTECH Super High Speed Live Centers  8


POINTTECH Super High Speed Live Centers  9

044002(2BHSL30C) / 044003(3BHSL30C)
044004(4BHSL30C) / 044005(5BHSL30C)

- Accuracy guaranteed to 0.002mm TIR(0.0001”).
- Excellent for grinders and CNC lathes.
- Heat-treated point to HRc 60±2.
- Three angular contact bearings for superior performance.
- Anti-friction seal for coolant deflections and high speed.
- High RPM, up to 12,000.
- Heat-treated body for extra strength, rigidity and long life.
- Drain hole have to be located on buttom side.

POINTTECH Super High Speed Live Centers  10  POINTTECH Super High Speed Live Centers  11

POINTTECH Super High Speed Live Centers  12


POINTTECH Super High Speed Live Centers  13

045002(2BHSL30A) / 045003(3BHSL30A)
045004(4BHSL30A) / 045005(5BHSL30A)

- Accuracy guaranteed to 0.002mm TIR(0.0001”).
- Excellent for grinders and CNC lathes
- Heat-treated point to HRc 60±2.
- Three angular contact bearings for superior performance.
- Anti-friction seal for coolant deflections and high speed
- High RPM, up to 12,000.
- Heat-treated body for extra strength, rigidity and long life.
- Drain hole have to be located on buttom side.

POINTTECH Super High Speed Live Centers  14

POINTTECH Super High Speed Live Centers  15


POINTTECH Super High Speed Live Centers  16

046002(2BHSL30AC) / 046003(3BHSL30AC)
046004(4BHSL30AC) / 046005(5BHSL30AC)

- Accuracy guaranteed to 0.002mm TIR(0.0001”).
- Excellent for grinders and CNC lathes
- Heat-treated point to HRc 60±2.
- Three angular contact bearings for superior performance.
- Anti-friction seal for coolant deflections and high speed
- High RPM, up to 12,000.
- Heat-treated body for extra strength, rigidity and long life.
- Drain hole have to be located on buttom side.

POINTTECH Super High Speed Live Centers  17  POINTTECH Super High Speed Live Centers  18

POINTTECH Super High Speed Live Centers  19
