Product Name
Balue Turn Live
Model Name
-
Size
-
Weight
-
Product Details

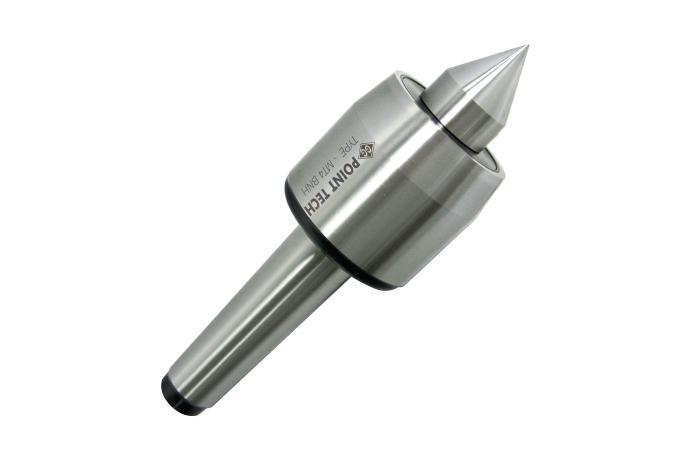

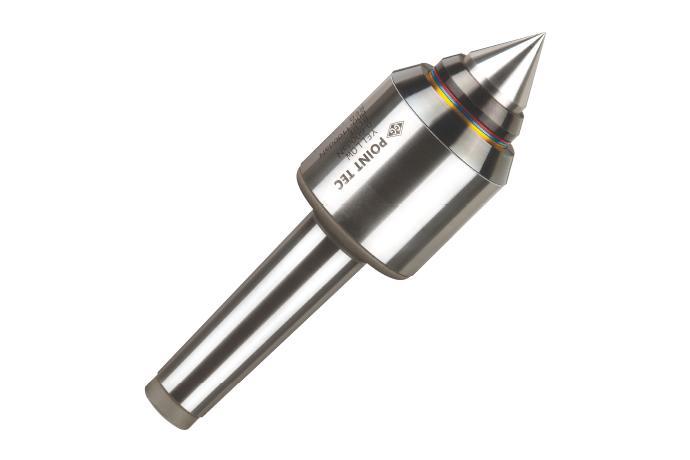

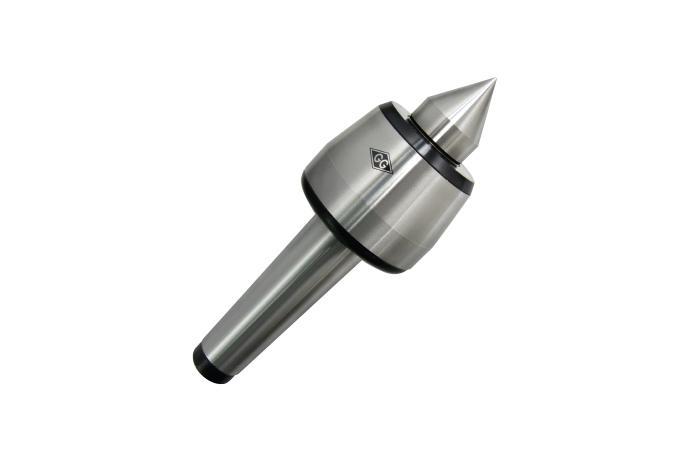

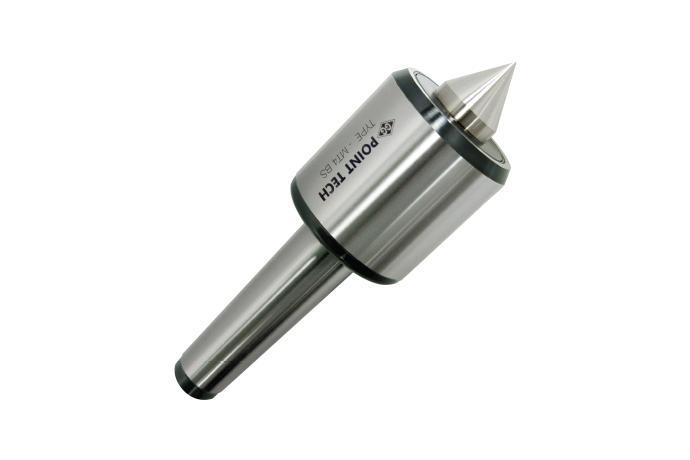

POINTTECH Balue Turn Live

121004(4BB) / 121005(5BB)

- Accuracy guaranteed to 0.003mm TIR (0.0001”).
- Excellent for light/medium-duty work on engine lathe.
- Heat-treated point to HRc 60±2.
- Two radial ball bearings and thrust bearing provide good overall load ratings.
- Rear bearing is sealed, protecting assembly from coolant and chips.

POINTTECH Balue Turn Live  1

POINTTECH Balue Turn Live  2


POINTTECH Balue Turn Live  3

122004(4BBC) / 122005(5BBC)

- Accuracy guaranteed to 0.003mm TIR (0.0001”).
- Excellent for light/medium-duty work on engine lathe.
- Heat-treated point to HRc 60±2.
- Two radial ball bearings and thrust bearing provide good overall load ratings.
- Rear bearing is sealed, protecting assembly from coolant and chips.

POINTTECH Balue Turn Live  4  POINTTECH Balue Turn Live  5

POINTTECH Balue Turn Live  6


POINTTECH Balue Turn Live  7

123004(4BBL30) / 123005(5BBL30)
124004(4BBL30C) / 124005(5BBL30C)

- Accuracy guaranteed to 0.003mm TIR (0.0001”).
- Excellent for light/medium-duty work on engine lathe.
- Heat-treated point to HRc 60±2.
- Two radial ball bearings and thrust bearing provide good overall load ratings.
- Rear bearing is sealed, protecting assembly from coolant and chips.

POINTTECH Balue Turn Live  8

POINTTECH Balue Turn Live  9


POINTTECH Balue Turn Live  10

124004(4BBL30C) / 124005(5BBL30C)

- Accuracy guaranteed to 0.003mm TIR (0.0001”).
- Excellent for light/medium-duty work on engine lathe.
- Heat-treated point to HRc 60±2.
- Two radial ball bearings and thrust bearing provide good overall load ratings.
- Rear bearing is sealed, protecting assembly from coolant and chips.

POINTTECH Balue Turn Live  11  POINTTECH Balue Turn Live  12

POINTTECH Balue Turn Live  13
